Boardoza Vibration Motor Breakout Board
The Boardoza Vibration Motor Breakout Board is a compact motor driver module with an integrated vibration motor designed for haptic feedback applications. It is a tiny breakout boardthat lets any MCU or SBC switch a small DC ERM (Eccentric Rotating Mass) vibration motor using a single digital I/O pin. Operating with 3.3V or 5V power supply, this board features an onboard vibration motor capable of drawing up to 80 mA of current, making it ideal for mobile devices, wearables, gaming controllers, and notification systems. With its simple digital I/O control interface and built-in driver circuitry, this module provides a plug-and-play solution for adding tactile feedback to embedded projects. The board measures just 40mm x 20mm and includes the vibration motor directly mounted on the PCB, eliminating the need for external motor connections.
Where to buy?
Key Features
- 3.3V / 5V Friendly: Works with common microcontrollers (Arduino, ESP32, STM32, Raspberry Pi, etc.).
- Up to 80 mA Drive: Sized for miniature coin/cylinder ERM motors used in wearables and handhelds.

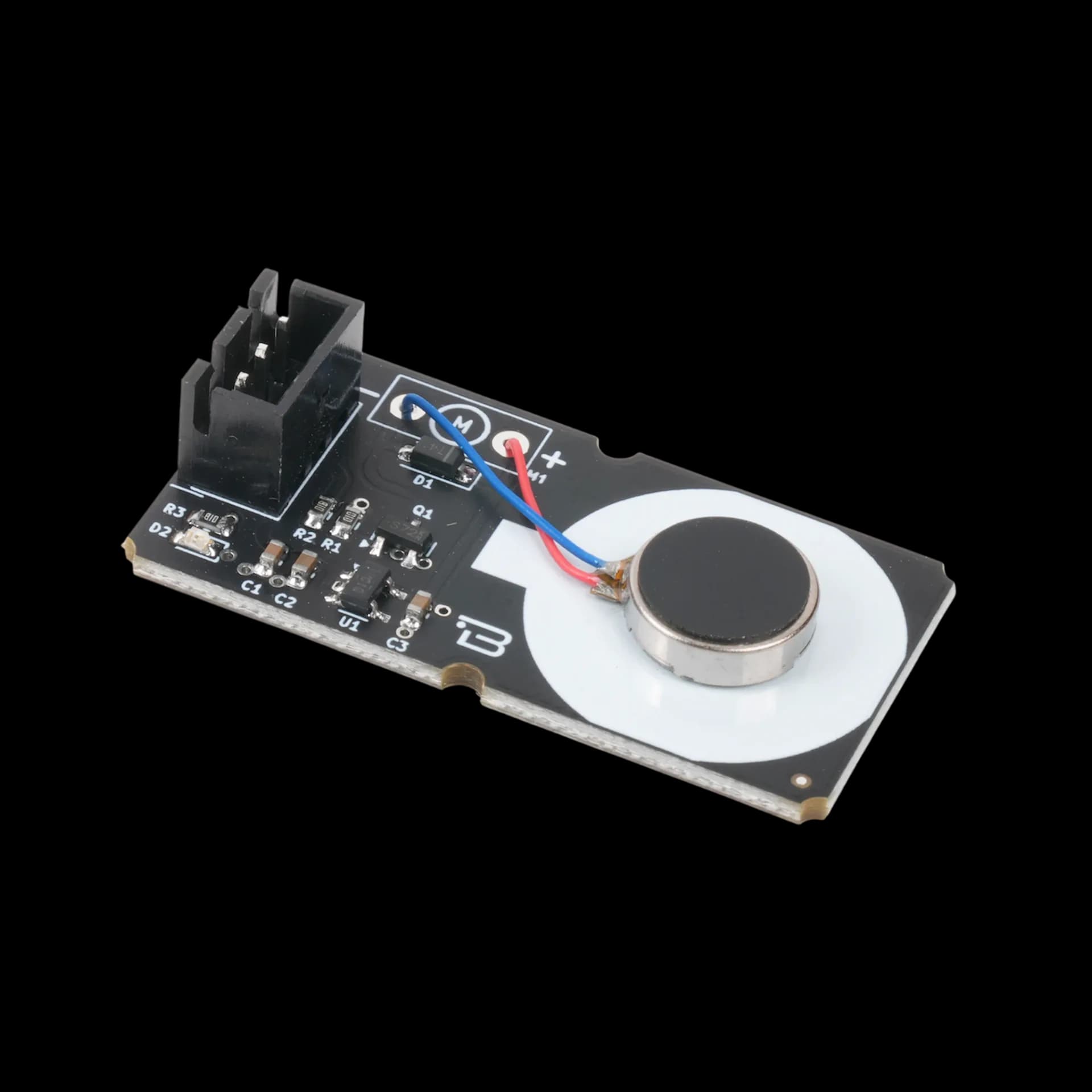

- Integrated Vibration Motor: Pre-mounted DC motor provides tactile feedback directly from the board.
- Plug-and-Play Design: Requires only power and one control signal.
- Compact PCB: Space-efficient 40×20 mm size.
- Durable Design: High insulation resistance and low terminal resistance for long-term use.
- Onboard Transistor Driver: Allows safe control via low-power logic signals.
Technical Specifications
- Input Voltage
- 3.3V / 5V
- Type
- Vibration motor (onboard)
- Interface
- Digital I/O
- Functions
- Vibration Motor Driver with Integrated Motor
- Current
- 80 mA
- Resistance
- 75 Ω (maximum)
- Weight
- 0.9g
- Temperature
- 20°C ± 2°C
- Humidity
- 60-70% RH
- Board Dimensions
- 40mm x 20mm

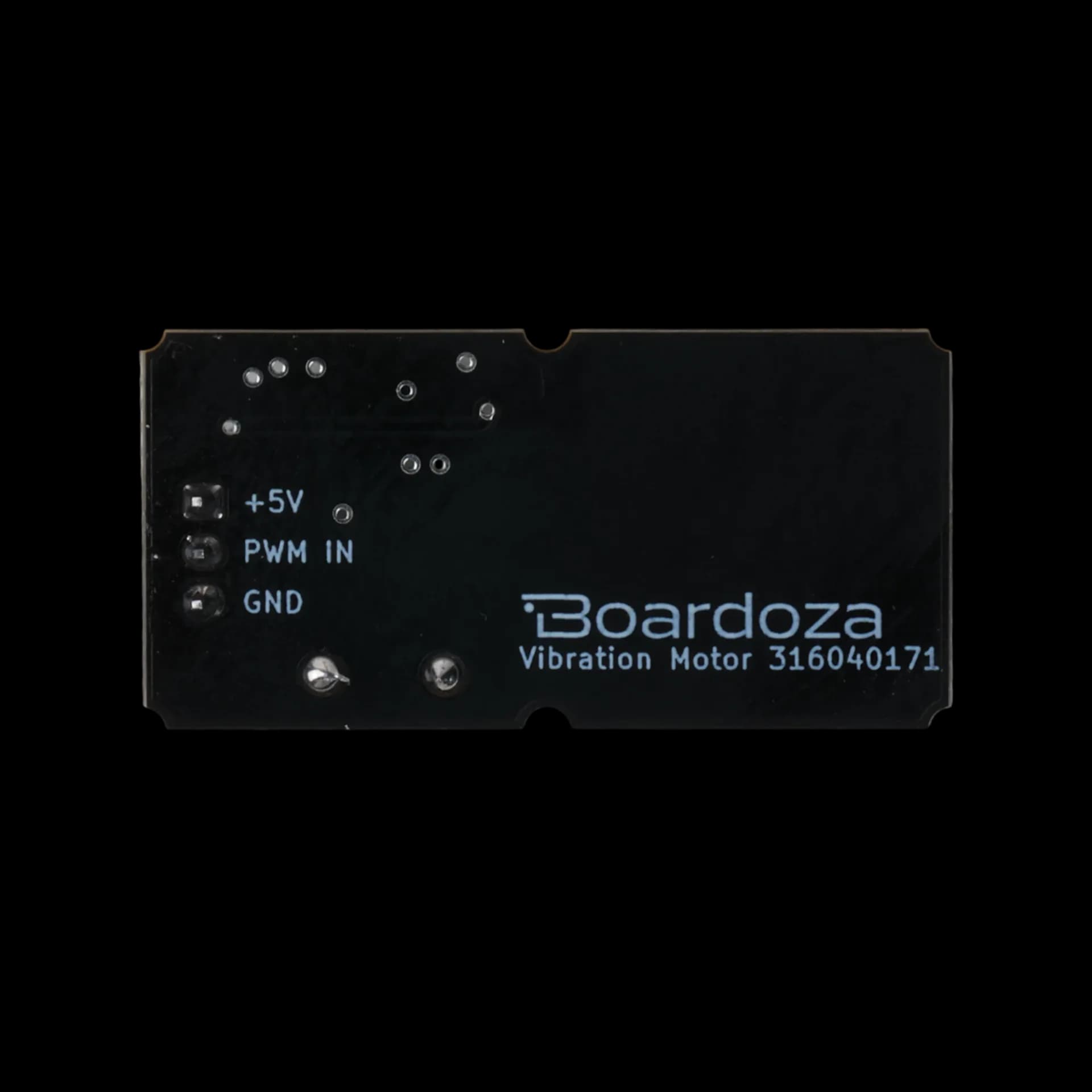

Board Pinout
( J1 ) Control & Power Pins
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | VDD | Power supply input (3.3V / 5V) |
| 2 | I/O | Digital input/output control pin |
| 3 | GND | Ground |
Datasheet
Download (PDF)Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
