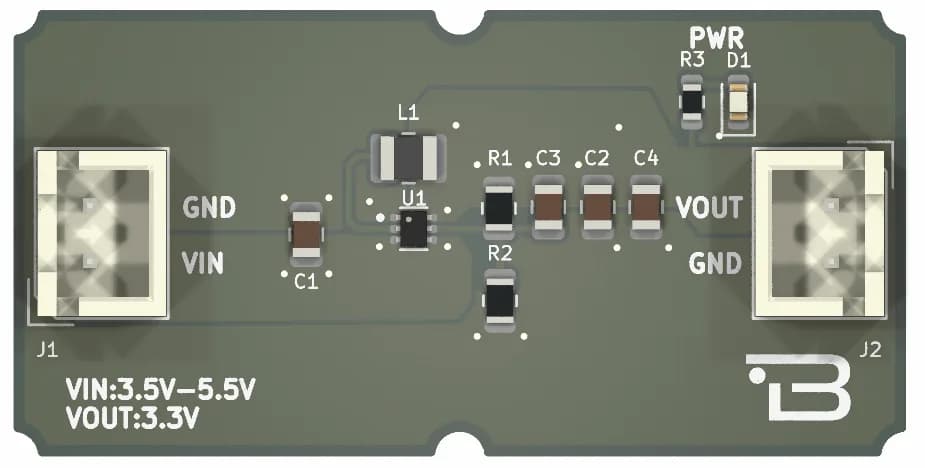

Boardoza TPS62A02N 3.3V Synchronous Buck Regulator Breakout Board
This board is designed based on the Texas Instruments TPS62A02N device and implements a synchronous step-down (buck) DC/DC converter optimized for high efficiency and compact form factor. The device integrates power switches capable of delivering up to 2 A of output current.
Under medium to heavy load conditions, the device operates in pulse-width modulation (PWM) mode at a 2.4 MHz switching frequency. At light loads, it automatically transitions to power-save mode (PSM) to maintain high efficiency across the entire load current range. Shutdown current consumption is minimized.
An integrated soft-start circuit limits inrush current during startup. Additional built-in features include overcurrent protection, thermal shutdown protection, and an optional power-good function.
Applications
Industrial Control and Automation Systems
- 2 A output capability can power sensor arrays and actuators.
- Suitable for motor driver circuits, relay boards, and other medium-power industrial applications.
IoT and Data Acquisition Systems
- Provides locally regulated, low-noise power for microcontrollers, sensors, and wireless modules, improving measurement accuracy and system stability in IoT and data acquisition applications.
- Compact and efficient power solution enables distributed sensing nodes, where point-of-load regulation is required close to the load.
Prototyping and Educational Platforms
- 40 mm × 20 mm size allows integration of multiple regulators, sensors, and MCU modules.
- Ideal for circuit design testing and educational purposes.
Battery-Powered Medium-Power Applications
- Provides stable power for portable devices and field prototypes.
Key Features
- 3.5V to 5.5V input voltage range
- 2.4MHz switching frequency
- Automatic power-save mode at light load and PWM at medium-to-heavy load
- 1% feedback accuracy (0°C to 125°C)
- Internal soft start-up
- Active output discharge
- High-efficiency power architecture based on TPS62A02N DC–DC Step-Down Regulator
- Wide input voltage support and stable output performance
- Low ripple and minimal EMI, ideal for sensitive circuits
- Compact PCB design for easy integration into projects
- Overcurrent and thermal protection for safe operation
- Suitable for IoT devices, sensor systems, portable applications, and embedded projects
Technical Specifications
- Item
- TPS62A02N
- Input Voltage
- 3.5Vdc - 5.5Vdc
- Functions
- Buck Regulator
- Output Current
- 2A
- Output Voltage
- 3.3Vdc
- Operating Temperature
- -40°C to +150°C
- Board Dimensions
- 40mm x 20mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
