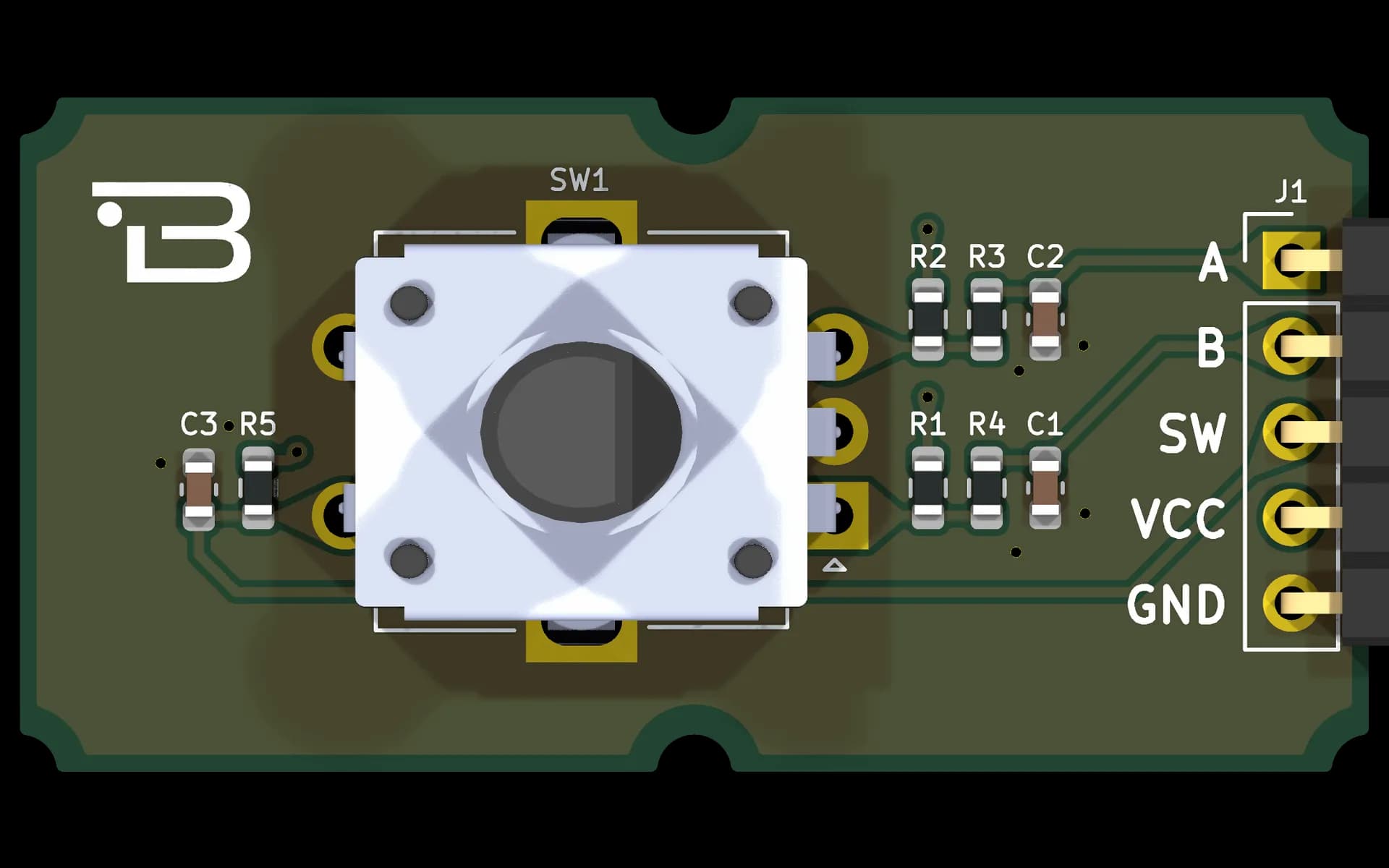

Boardoza Rotary Encoder Interface Breakout Board
The Rotary Encoder Interface Board is a compact interface solution designed to provide reliable connection between mechanical rotary encoders and microcontroller-based systems. The board provides access to the encoder’s A and B quadrature signals as well as the integrated push-button switch output.
RC filtering is implemented on the A and B signal lines to help reduce contact bounce and high-frequency noise generated by mechanical encoders. The switch line also features a pull-down resistor and RC filtering to provide a more stable digital output.
The board is suitable for use with Arduino, STM32, ESP32, and other microcontroller platforms.
Key Features
- Quadrature rotary encoder interface
- A/B phase signal outputs
- Integrated push-button switch support
- RC filtering on A and B signal lines
- RC filtering and pull-down on the switch line
- Helps reduce mechanical contact bounce
- Easy integration with microcontroller-based systems
- Compact and easy-to-use design
- Provides Encoder A, Encoder B, Switch, and GND connections
Technical Specifications
- Item
- B-ROTARY ENCODER-BRK
- Input Voltage
- 3.3V to 5V
- Functions
- Rotary encoder
- Operating Temperature
- -10℃ to 70℃
- Board Dimensions
- 20x40mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
