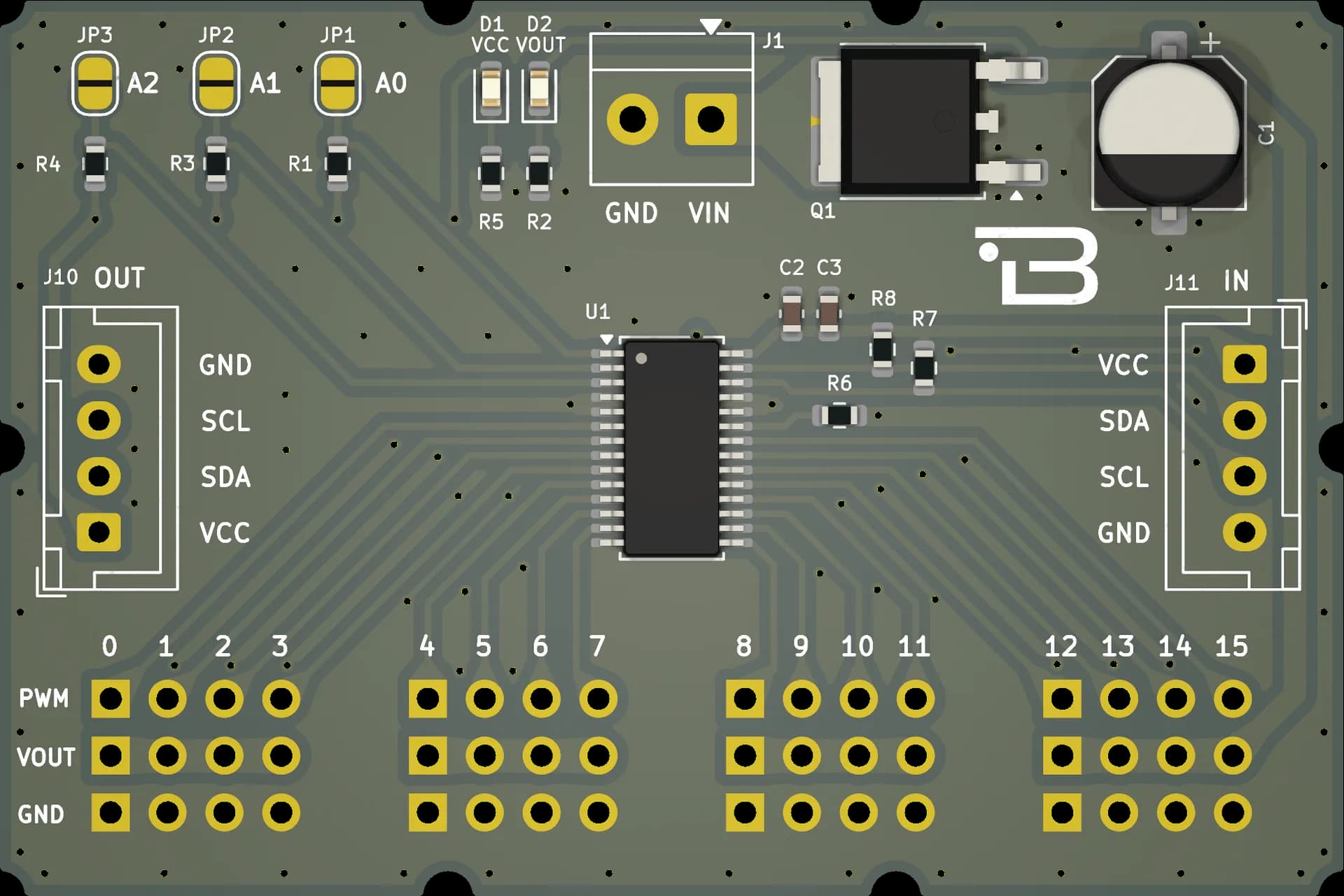

Boardoza PCA9685 16-Channel PWM Servo Motor Driver Breakout Board
Boardoza PCA9685 is a 16 Channel, 12 Bit PWM Servo motor driver board controlled over I²C communication bus. You can drive up to 16 Servo motors with the help of the external power supply connection. Each motor channel has PWM signal and power outputs. You can connect up to 8 boards on the same I²C Bus by modifying the A0, A1 and A2 addres sellect jumpers. The board also has reverse polarity protection preventing damage from reverse connected power supply case.
1 / 2
Key Features
- 16 independent 12-Bit Motor PWM Channels
- Use of up to 8 boards on I²C Bus
- Reverse Polarity Protection
- External Power Supply for Servos
Technical Specifications
- Power Supply Voltage Range
- 2.3 V \~ 5.5 V
- Signal Channels Source Current
- 10 mA @ 5 V
- Signal Channels Sink Current
- 25 mA
- Maximum External Power Supply Current
- 2.5 A
- Output PWM Frequency
- 24 Hz to 1526 Hz
- Output PWM Resolution
- 12 Bit (4096 Steps)
- Operating Temperature
- -40/+85
- Board Dimensions
- 40x60mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
