Motor DriversSKU: B0601V10000005

Boardoza DRV8307 48W Three-Phase BLDC Motor Driver Breakout Board

This board is a high-efficiency three-phase BLDC motor driver designed with the Texas Instruments DRV8307 IC. Working together with external MOSFETs, it provides low-loss and powerful motor driving capability. The design includes current sensing, PWM-based control, as well as direction and brake inputs.

The DRV8307 offers simplicity and reliability in motor control solutions. With up to 24V operating voltage, built-in protection circuits, and flexible control interfaces, it is suitable for industrial fans, pumps, electric vehicles, and hobby applications.

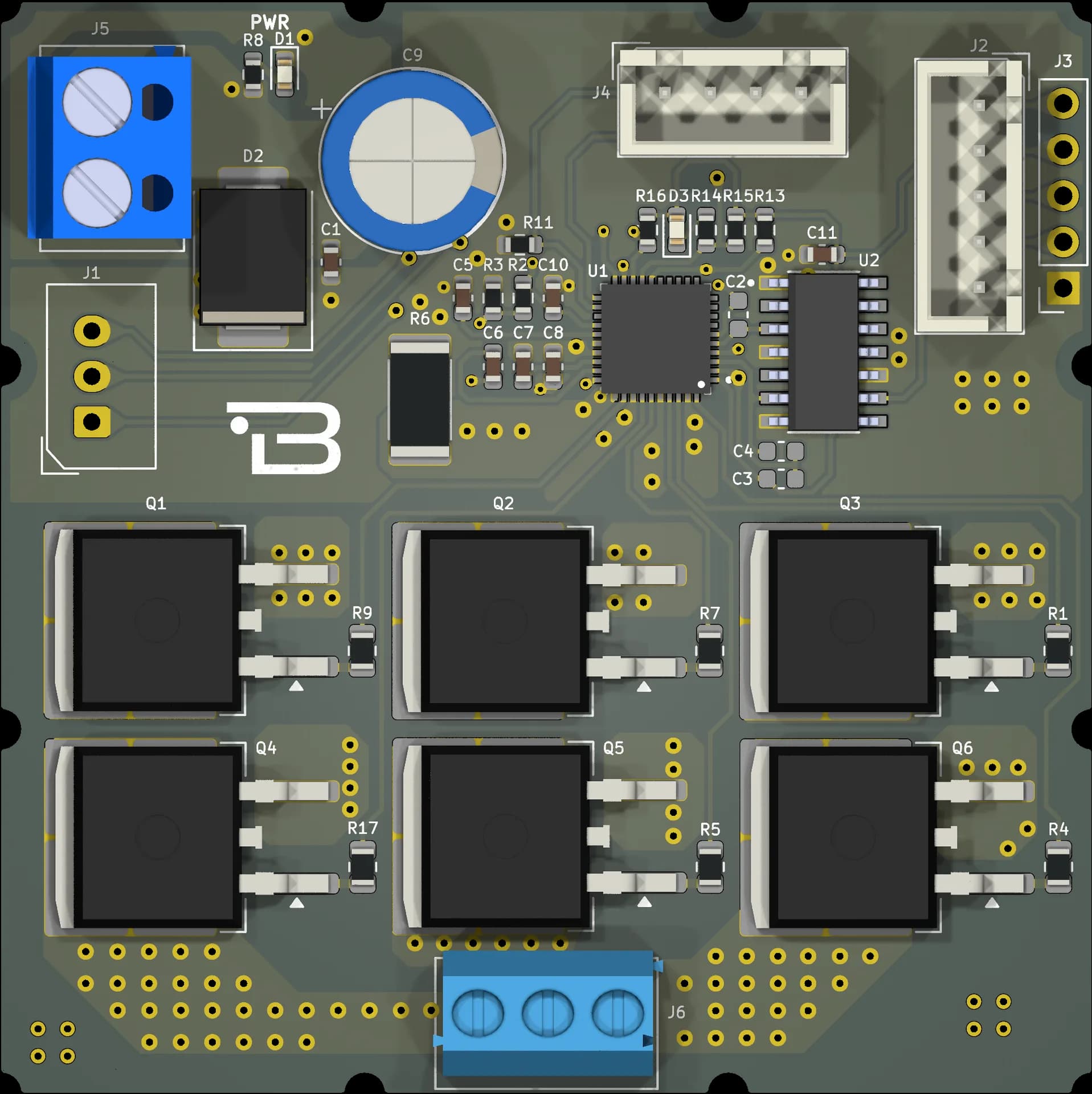

Boardoza DRV8307 48W Three-Phase BLDC Motor Driver Breakout Board – 1
1 / 2

Key Features

  • Power Supply : (+8.5V) - (+24V)
  • Continuous Output Current : Up to 15A
  • Hall sensor power is “5V”
  • Motor direction is “forward” or “reverse”
  • Thanks to the integrated driver structure with the DRV8307 IC, three-phase BLDC motors can be easily driven.
  • With its internal MOSFET driver stage, high-current motor control is achieved through external power MOSFETs.
  • Using the H-bridge topology, forward and reverse motor control is possible.
  • Motor current sensing is implemented through a low-side shunt resistor.
  • PWM control input and direction/brake (DIR / BRAKE) pins allow easy integration with microcontrollers.
  • With an operating capability of up to 24V (as shown with +24V supply in the schematic), it is suitable for industrial applications.
  • The board includes voltage regulation and protection circuits.
  • External N-channel MOSFET structure for high-current motor control. DIR Pin Motor Direction Logic High Forward Logic Low Reverse
  • Application Areas:
  • Industrial fan drivers
  • Pump motor control
  • Robotic systems
  • Small automation systems
  • Educational and hobby BLDC projects
  • General-purpose sensored BLDC motor applications

Technical Specifications

Item
B-DRV8307-BRK
Input Voltage
8.5V / 24V
Functions
3-Phase BLDC motor driver board
Output Current
15 A
Board Operation Temperature
-40/+85 ºC
Board Dimensions
60x60mm

Support

For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.

[email protected]
