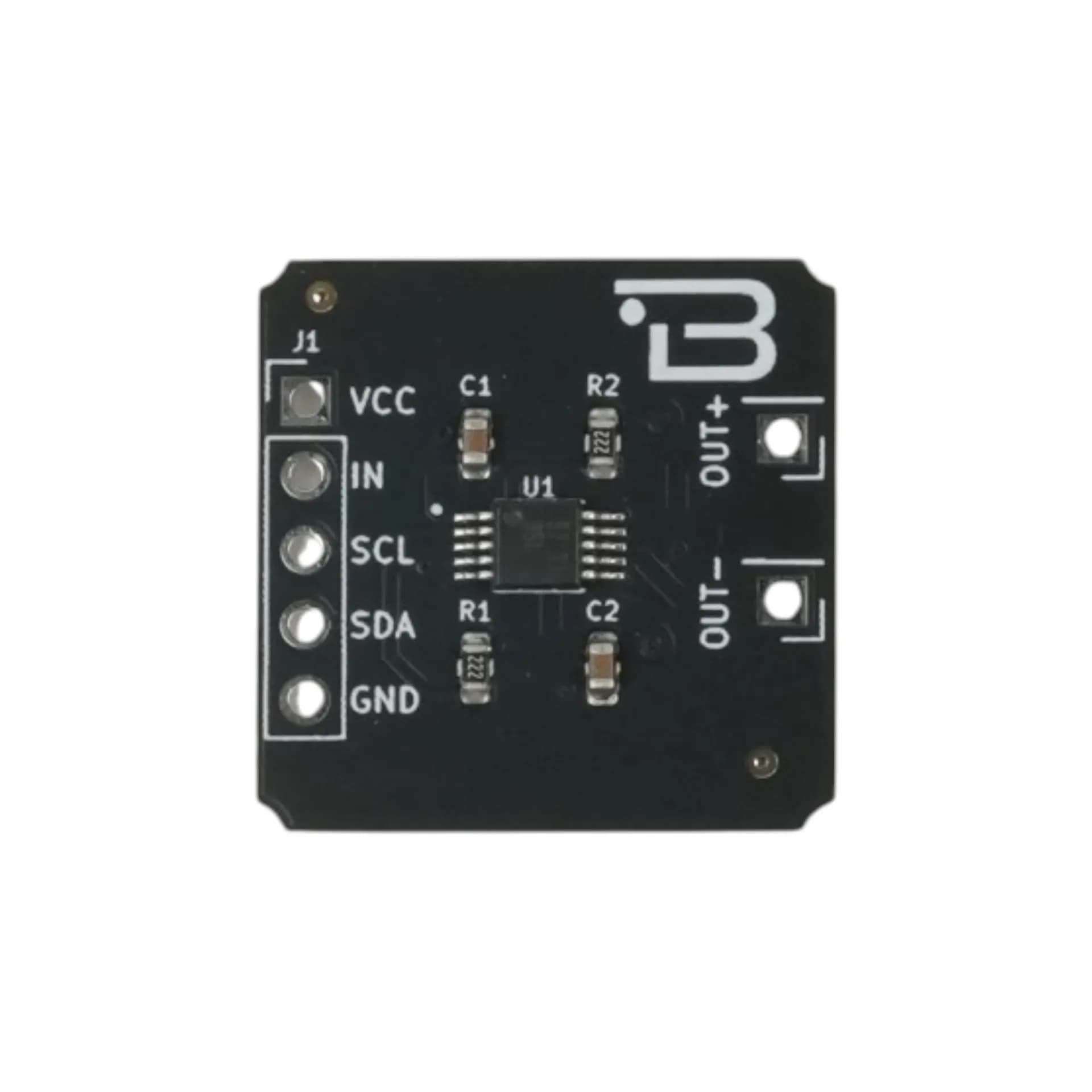

Boardoza DRV2605L Haptic Motor Driver Breakout Board
The Boardoza DRV2605L Haptic Driver Breakout Board is built around the Texas Instruments DRV2605L, an intelligent haptic motor driver designed specifically for ERM (Eccentric Rotating Mass) and LRA (Linear Resonant Actuator) vibration motors. Unlike basic on/off motor drivers, the DRV2605L features a built-in waveform library and smart-loop control engine that can generate advanced haptic effects such as clicks, double-clicks, ramps, buzz patterns, and audio-synchronized feedback. Unlike conventional motor drivers intended for DC or stepper motors, the DRV2605L is optimized for precise haptic control. It communicates through the I²C interface, allowing complex vibration effects to be configured, sequenced, and triggered directly from a microcontroller. This breakout board is ideal for wearable devices, game controllers, touch interfaces, mobile devices, assistive systems, and other applications that require high-quality haptic feedback.
Key Features
- I²C-Controlled Digital Playback Engine: Includes a waveform sequencer for flexible haptic pattern generation.
- Real-Time Playback Options: Supports control via I²C, PWM, or analog input.
- Dual Drive Modes: Operates in open-loop (ERM) and closed-loop (LRA) configurations.
- Smart-Loop™ Control: Provides automatic overdrive and braking for optimized performance.
- Automatic Resonance Tracking: Includes actuator diagnostics for LRA operation.
- Automatic Level Calibration: Ensures consistent output performance.
- Battery Voltage Compensation: Maintains stable operation under varying supply conditions.
- Differential H-Bridge Output: Features OUT+ and OUT− for driving actuators.
Technical Specifications
- Model
- DRV2605L
- Manufacturer
- Boardoza
- Manufacturer IC
- Texas Instruments
- Device Type
- Haptic Driver IC
- Functions
- Smart Haptic Motor Driver
- Input Voltage
- 2.0V – 5.2V
- Interface
- I²C (Standard & Fast Mode, up to 400kHz)
- Control Input (IN/TRIG)
- PWM / Analog / External Trigger (Selectable)
- Supported Actuators
- ERM (Eccentric Rotating Mass) – Open-Loop Drive LRA (Linear Resonant Actuator) – Closed-Loop with Auto Resonance Tracking
- Playback Modes
- Internal ROM Waveform Library RAM-Based Custom Waveform Sequencing Real-Time Playback (RTP) Mode Audio-to-Vibe Mode
- Drive Output
- Differential H-Bridge (OUT+, OUT−)
- Auto Features
- Automatic Overdrive & Braking Automatic Resonance Tracking (LRA) Automatic Level Calibration Actuator Diagnostics
- Operating Temperature
- -40°C to +150°C
- Board Dimensions
- 20mm x 20mm
Board Pinout
( J1 ) Control & Power Connector
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | VCC | Supply Input (2.0V – 5.2V DC) |
| 2 | IN | Multi-mode Input (PWM / Analog / Trigger). Connect to GND if unused |
| 3 | SCL | I²C Serial Clock |
| 4 | SDA | I²C Serial Data |
| 5 | GND | Ground |
( J2 ) Haptic Motor Output
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | OUT+ | Positive Differential Output |
| 2 | OUT− | Negative Differential Output |
Datasheet
Download (PDF)Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
