Boardoza BA6208 Motor Driver Breakout Board

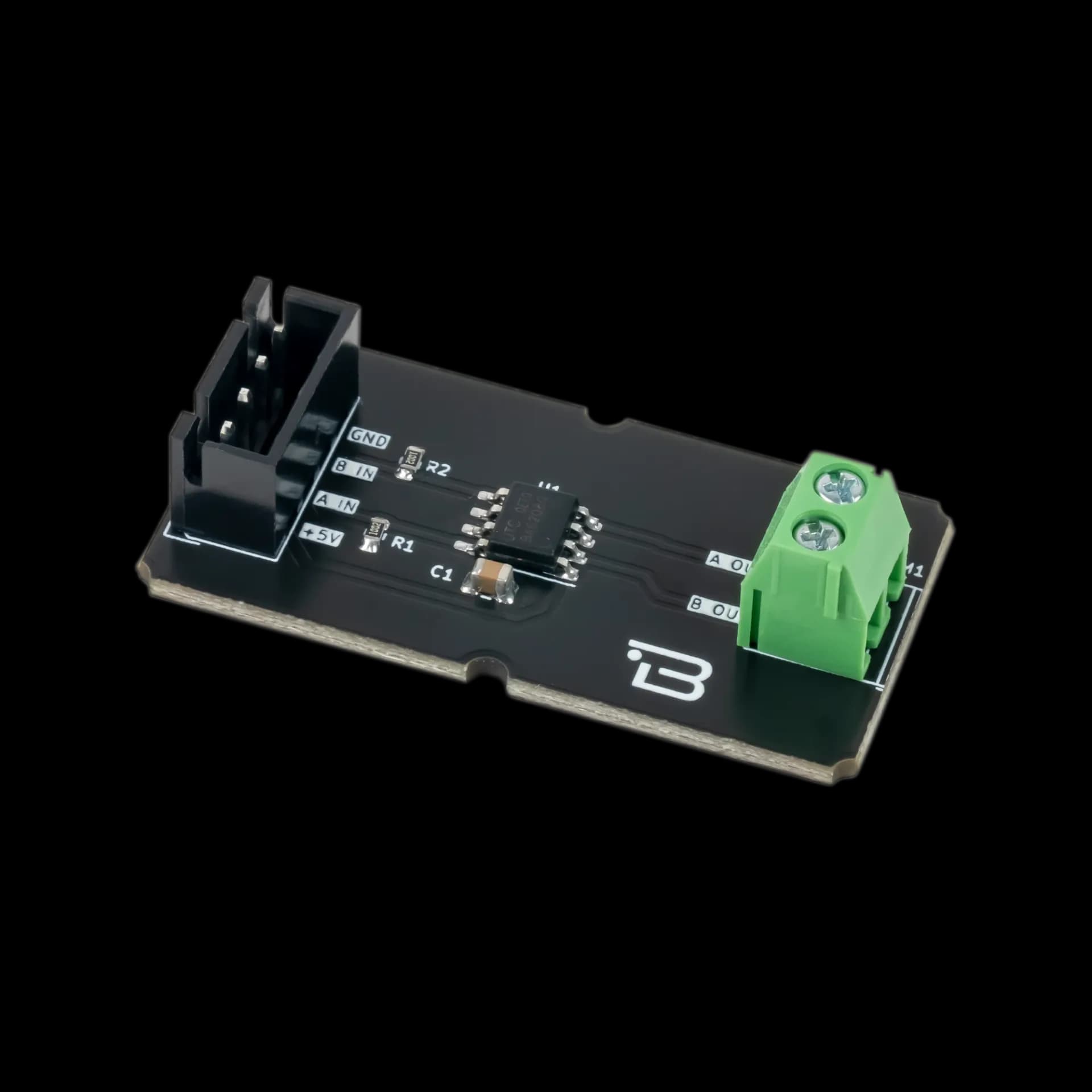

The Boardoza BA6208 is a compact and efficient DC motor driver breakout board based on the BA6208 integrated H-bridge driver IC. It enables bidirectional control of a single DC motor, making it ideal for robotics, automation, and embedded control applications. Thanks to its built-in oscillator and simplified control interface, this module is easy to integrate into any microcontroller-based system. It supports digital direction control (forward, reverse, stop) and is optimized for low-power and moderate-load applications.
Where to buy?
1 / 3
Key Features
- Bidirectional Motor Control: Drives a single brushed DC motor in forward and reverse directions using simple logic signals.
- Integrated Oscillator: Eliminates the need for external frequency-setting components.
- Moderate Load Capability: Drives up to 500mA, ideal for small to medium-sized motors.
- Low Saturation Voltage: Ensures higher efficiency and lower power loss.
- Built-in Thermal Protection: Prevents damage from overheating via automatic thermal shutdown.
Technical Specifications
- Model
- UNISONIC BA6208
- Input Voltage
- 4.5V – 15V
- Functions
- H-Bridge Reversible Motor Driver
- Output Current
- Up to 500mA
- Control Interface
- Digital (Forward, Reverse, Stop)
- Operating Temperature
- -20°C ~ +60°C
- Board Dimensions
- 20mm x 40mm

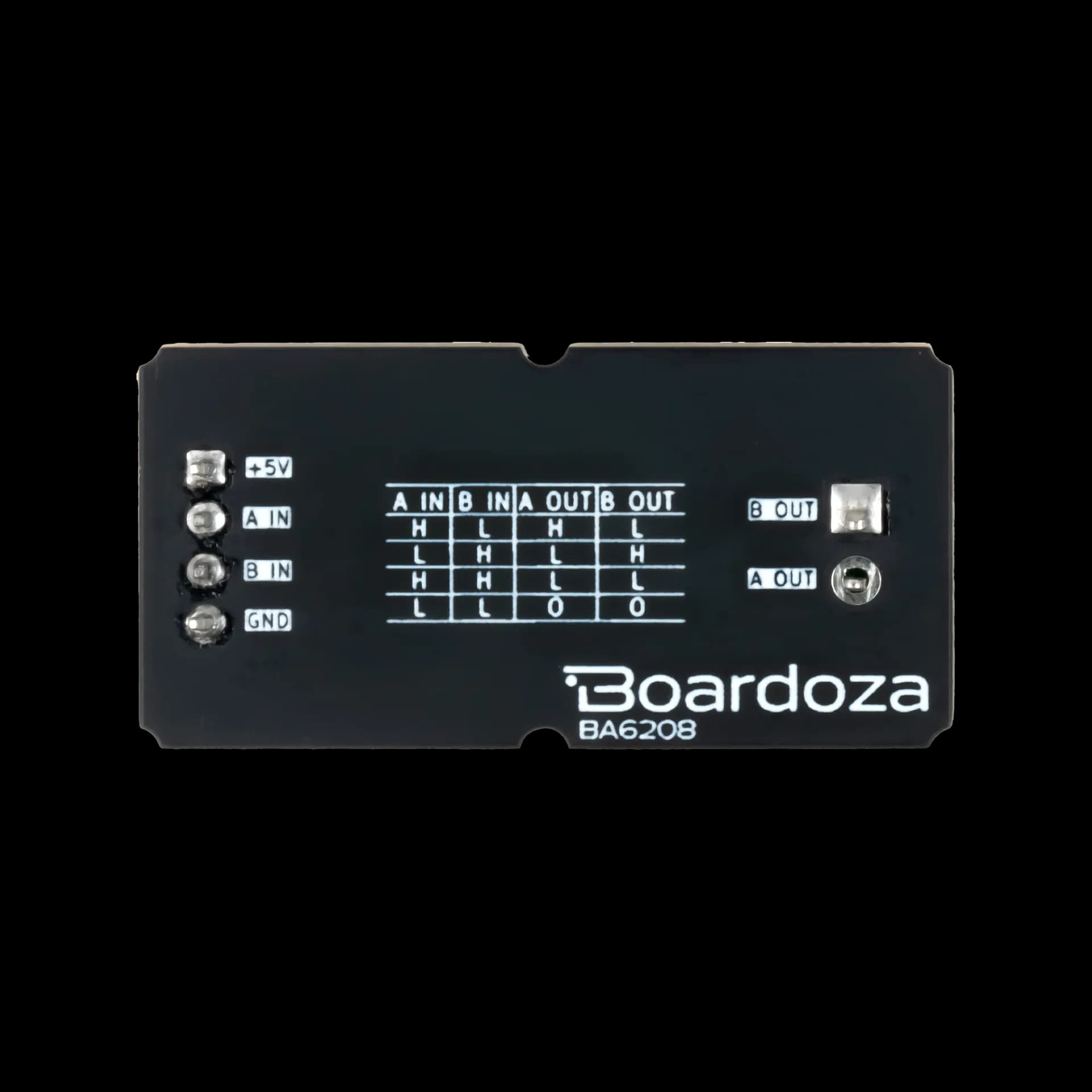

Board Pinout
( J1 ) Power & Control Interface
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | +5V | Power Supply |
| 2 | A IN | Motor Direction Input A |
| 3 | B IN | Motor Direction Input B |
| 4 | GND | Ground |
( M1 ) Motor Output Connector
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | B OUT | Motor Output B |
| 2 | A OUT | Motor Output A |
Datasheet
Download (PDF)Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
