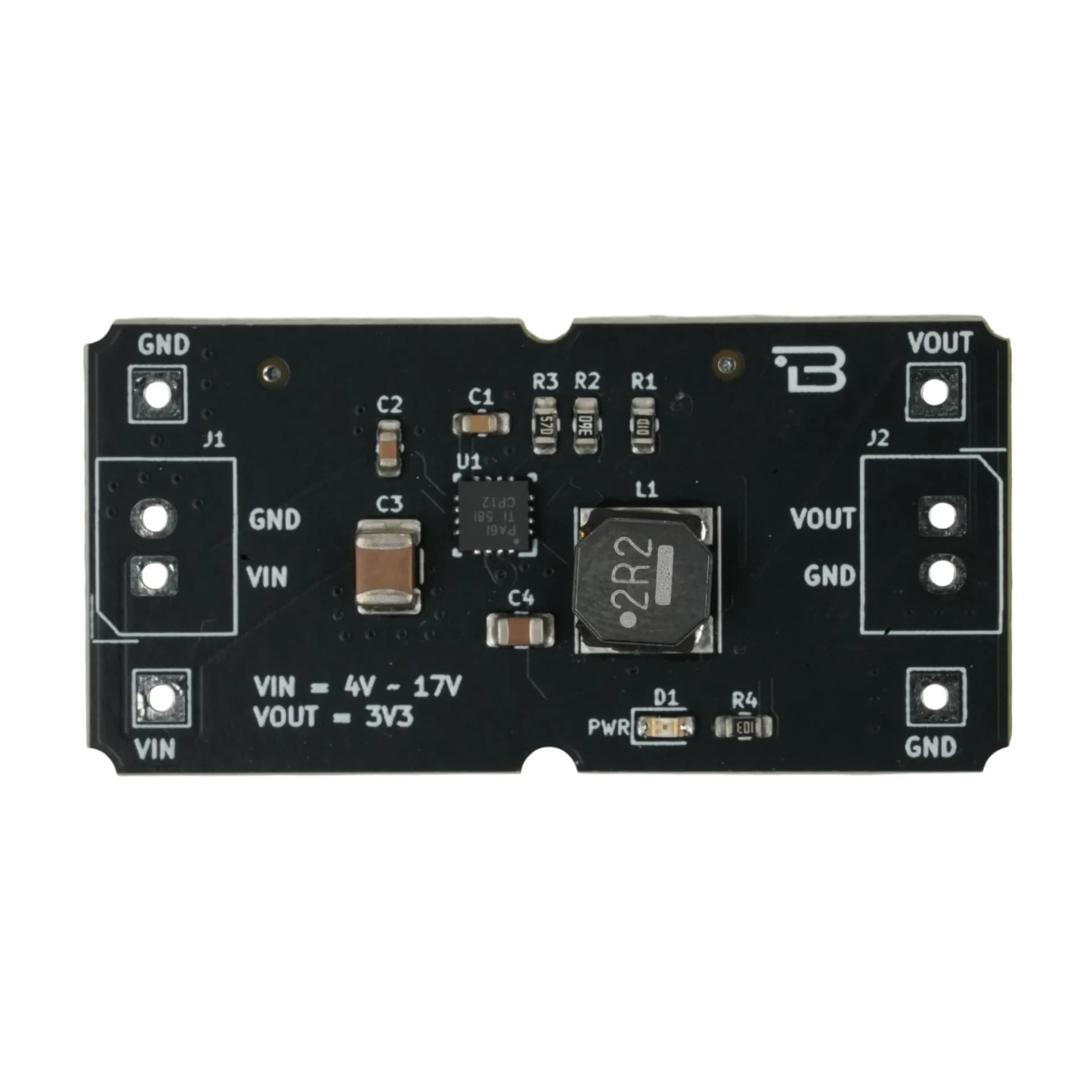

Boardoza TPS62130A 3A Buck Converter Breakout Board
The Boardoza TPS62130A Breakout Board is a compact and high-efficiency 3.3 V buck (step-down) DC/DC converter designed to deliver up to 3 A output current from a wide input voltage range. Based on the Texas Instruments TPS62130A, this board integrates advanced DCS-Control™ topology to provide excellent transient response, low output ripple, and high efficiency across load conditions. With its ultra-low quiescent current and seamless Power Save Mode operation, this breakout board is ideal for battery-powered systems as well as industrial and embedded applications. It is perfect for powering microcontrollers, single-board computers, and communication modules.
Temel Özellikler
- Wide Input Range: Accepts 4V to 17V input, suitable for common DC output.
- High Output Capability: Provides up to 3A continuous output current.
- Fixed 3.3V Output: Optimized for 3.3V digital systems.
- High Efficiency Design: DCS-Control™ topology ensures fast transient response and stable regulation.
- Ultra-Low Quiescent Current: Typical 17µA for low-power applications.
- Integrated Protections: Includes short-circuit and thermal protection.
Teknik Özellikler
- Model
- TPS62130A
- Üretici
- Boardoza
- Üretici
- Texas Instruments
- Device Type
- Synchronous Step-Down (Buck) Converter
- Topology
- DCS-Control™
- Giriş Voltajı
- 4V – 17V
- Çıkış Voltajı
- 3.3V (Fixed)
- Maksimum Çıkış Akımı
- 3A
- Quiescent Current (IQ)
- 17µA (typical)
- Peak Efficiency
- Up to 95%
- Typical Efficiency
- 90–94% (VIN = 12V, VOUT = 3.3V, medium load)
- Çalışma Sıcaklığı
- -40°C to +150°C (IC)
- Kart Boyutları
- 20mm x 40mm
Kart Pin Yapısı
( J1 ) Input Connector
| Pin Numarası | Pin Adı | Açıklama |
|---|---|---|
| 1 | VIN | Input Voltage (4V – 17V) |
| 2 | GND | Ground |
( J2 ) Output Connector
| Pin Numarası | Pin Adı | Açıklama |
|---|---|---|
| 1 | VOUT | Regulated 3.3V Output |
| 2 | GND | Ground |
