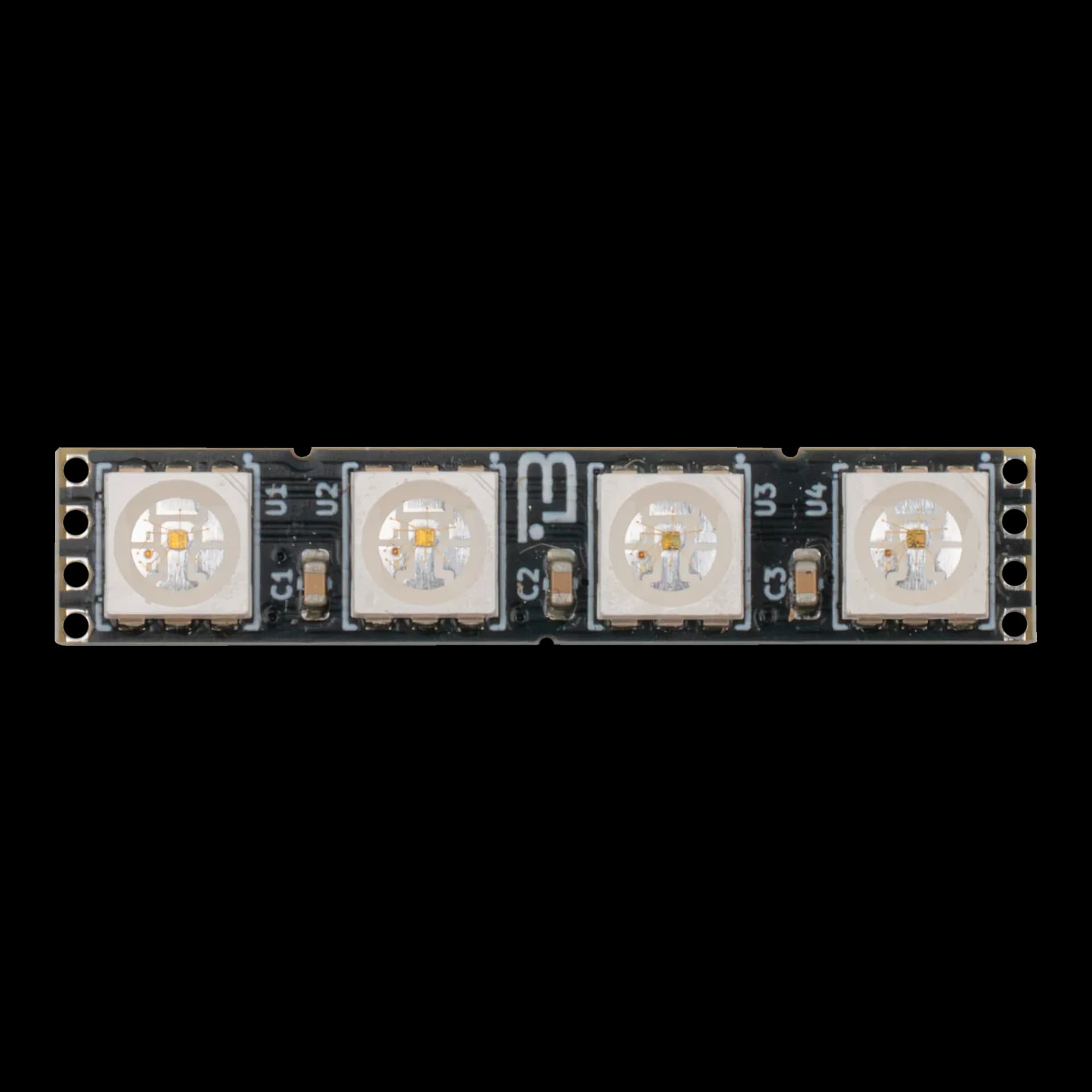

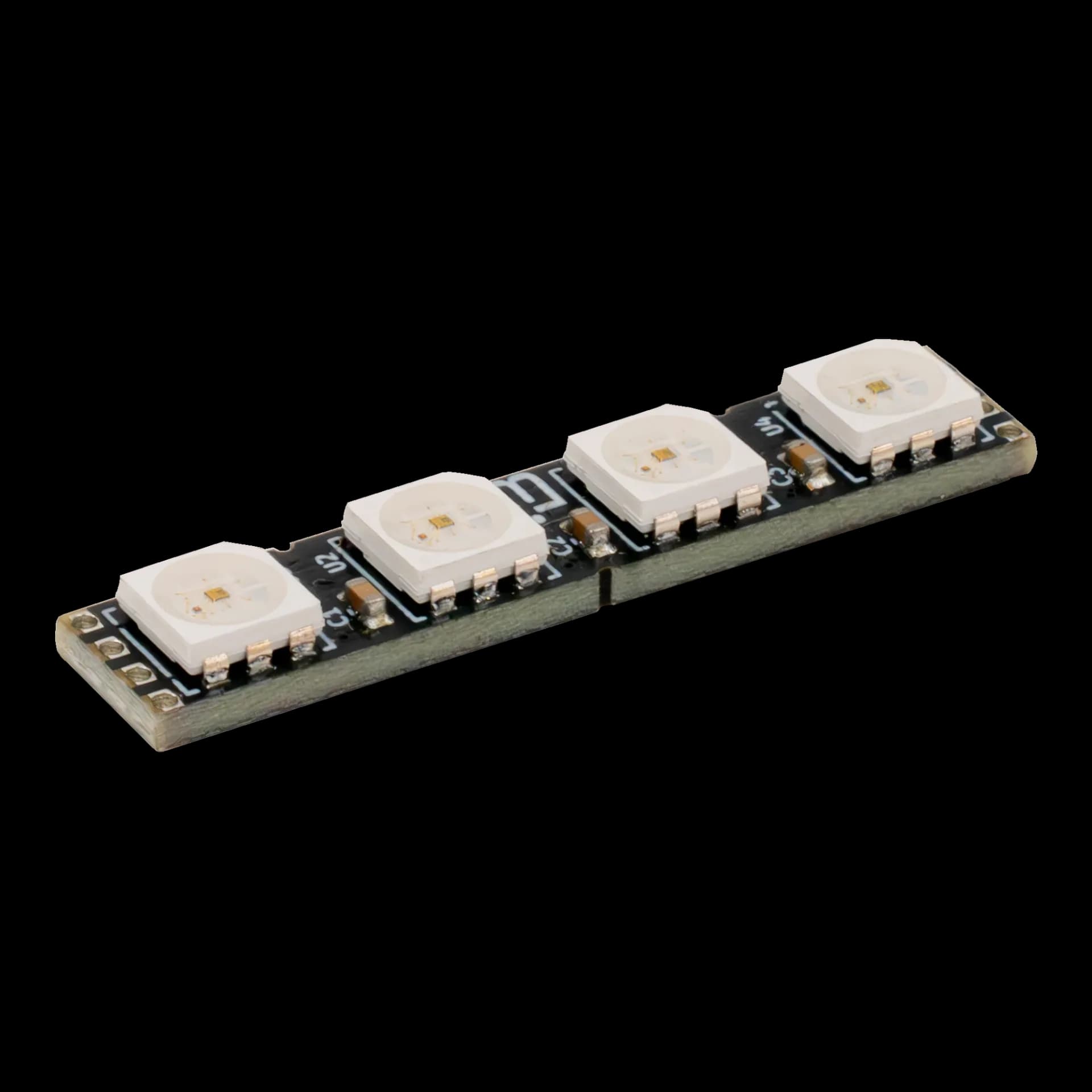

Boardoza Phoenix4 Breakout Board
The Boardoza Phoenix4 is a modular, addressable RGB LED breakout board designed to help makers create custom lighting patterns with maximum flexibility. Built around individually addressable RGB LEDs, the board integrates four LED segments in a compact, daisy-chainable form factor. Multiple boards can be soldered together to create letters, numbers, symbols, and custom lighting shapes. The board supports both 3.3 V and 5 V power supplies and is compatible with a wide range of microcontrollers and digital systems. The Boardoza Phoenix4 is well suited for decorative lighting, interactive displays, prototypes, and general-purpose addressable LED applications.
Temel Özellikler
- Modular ARGB Lighting Design: Allows multiple boards to be soldered together to create letters, numbers, or custom shapes.
- Addressable RGB LEDs: Each LED can be individually controlled for precise color and brightness adjustments.
- Wide Voltage Compatibility: Supports both 3.3V and 5V power supplies for broad microcontroller compatibility.
- TTL & CMOS Logic Support: Ensures seamless operation with different digital logic levels.
- Expandable Structure: Designed for daisy-chaining to build larger and more complex lighting systems.
Teknik Özellikler
- Model
- Phoenix4
- Üretici
- Boardoza
- Fonksiyonlar
- Addressable RGB LED Lighting Board
- Giriş Voltajı
- 3.3 V / 5 V
- LED Model
- T3A33BRG-H9C0002X1U1930
- Number of LEDs
- 24
- LED Type
- Individually addressable RGB LEDs
- Logic Compatibility
- TTL & CMOS
- Data Interface
- Serial Data & Clock (DIN / CIN / DOUT / COUT)
- Daisy-Chain Support
- Yes
- Çalışma Sıcaklığı
- -40 °C to +85 °C
- Kart Boyutları
- 6.9 mm × 34 mm

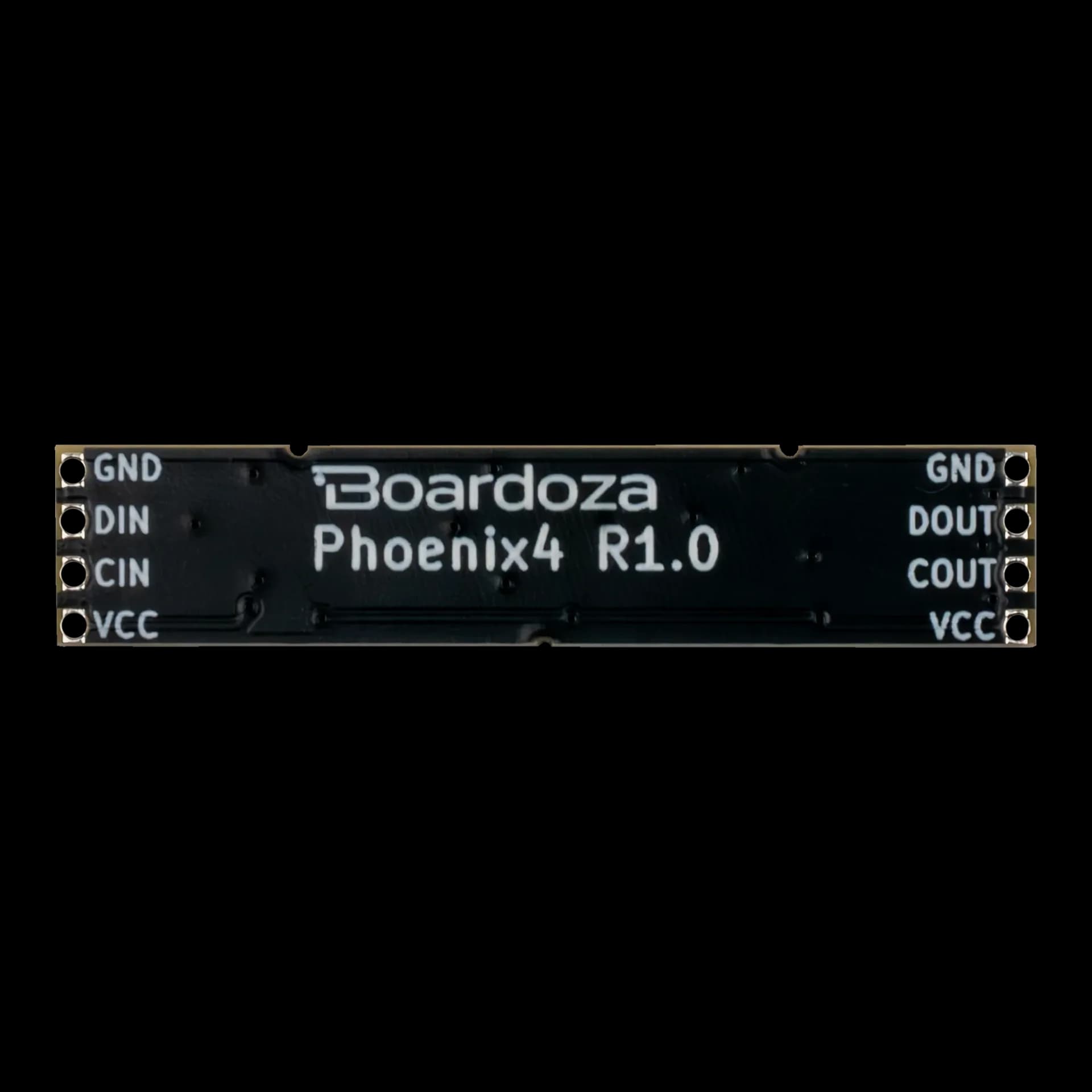

Kart Pin Yapısı
( J1 ) Output Connector
| Pin Numarası | Pin Adı | Açıklama |
|---|---|---|
| 1 | VCC | Power Supply |
| 2 | COUT | Clock Output |
| 3 | DOUT | Data Output |
| 4 | GND | Ground |
( J2 ) Input Connector
| Pin Numarası | Pin Adı | Açıklama |
|---|---|---|
| 1 | VCC | Power Supply |
| 2 | CIN | Clock Input |
| 3 | DIN | Data Input |
| 4 | GND | Ground |
