SensorsSKU: B0101V10000127

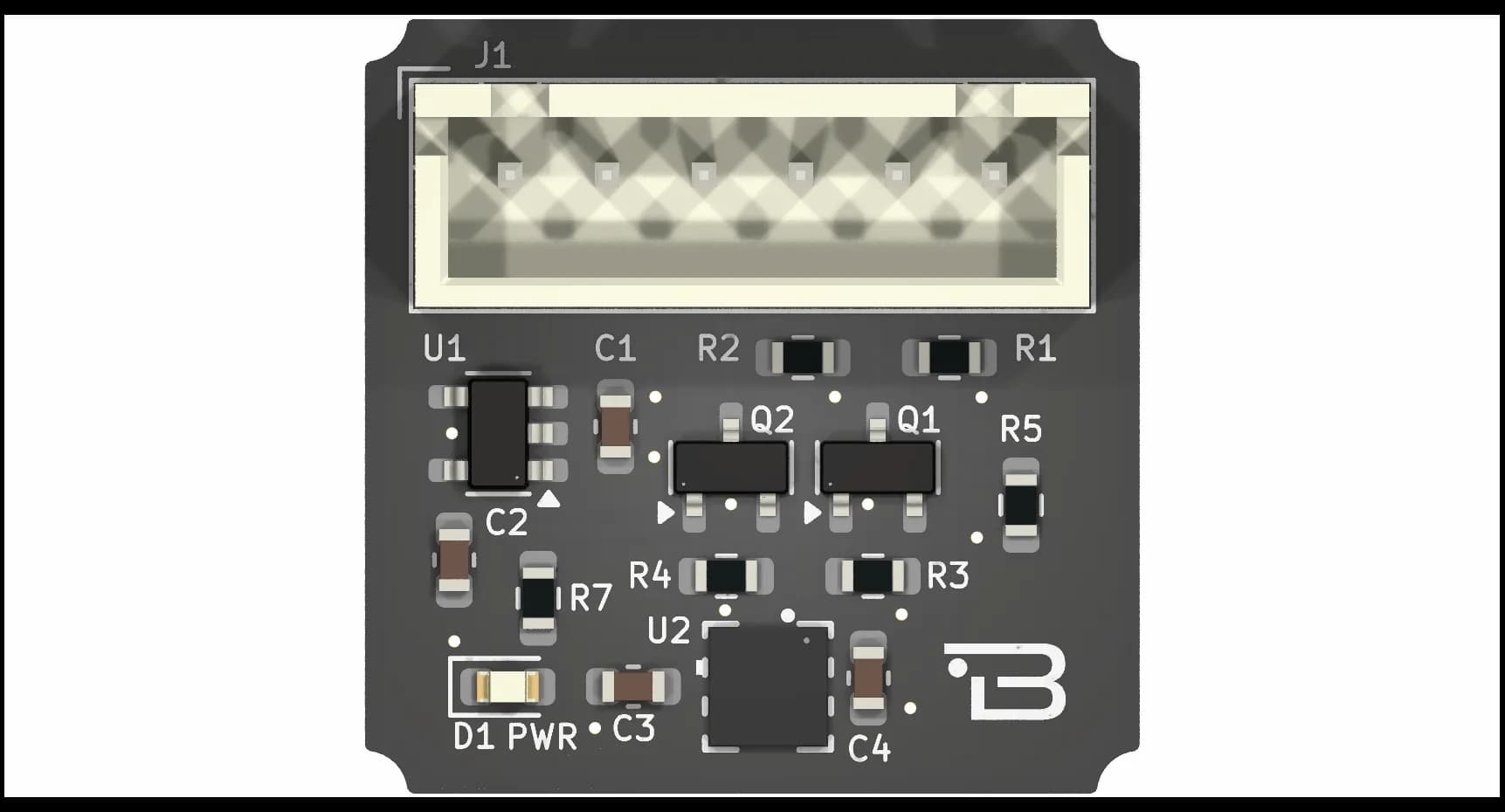

Boardoza ZMOD4410 Indoor Air Quality Sensor Breakout Board
The Boardoza ZMOD4410 Sensor Module has a wide measurement range and is a reliable breakout board based on the Renesas ZMOD4410 gas sensor with I²C connectivity. It is designed for high-precision indoor air quality monitoring and provides digital measurements for Total Volatile Organic Compounds (TVOC) and estimated CO₂ concentrations. The module is suitable for HVAC systems, smart home devices, air purifiers, and environmental sensing applications.
1 / 2
Key Features
- Indoor Air Quality (IAQ) classification output (1–5 scale)
- Measurement of TVOC (mg/m³) and estimation of eCO₂ (ppm)
- Ultra-low power (\~0.35 mW average in periodic measurement mode)
Technical Specifications
- Input Voltage
- 3.3 V \~ 5 V
- Functions
- IAQ indexing, TVOC and estimated CO2 measurement
- Maximum Input Current
- 100 mA (for any pin)
- Operating Temperature
- -40/+85 °C
- Board Dimensions
- 20x20mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
