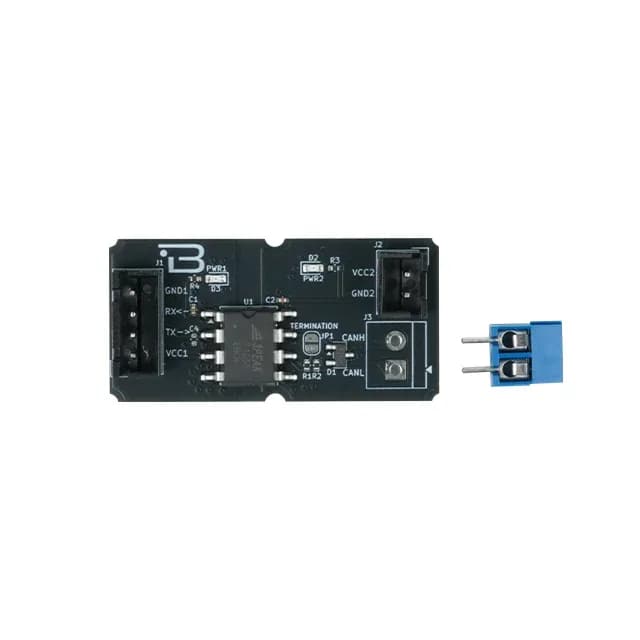

Boardoza TPT71050 Isolated CAN FD Transceiver Breakout Board
The Boardoza TPT71050 Breakout Board is a compact and robust isolated CAN FD transceiver solution designed for reliable communication in industrial, automotive, and embedded systems. Built around the TPT71050 isolated CAN transceiver, the board provides galvanic isolation between the logic side and the CAN bus side, helping protect sensitive electronics from electrical noise, ground loops, and voltage transients commonly encountered in harsh environments. Supporting both Classical CAN and CAN FD (Flexible Data Rate), the board enables data transfer rates of up to 5 Mbps while maintaining strong signal integrity and noise immunity. Its isolation barrier and selectable termination resistor make it ideal for industrial automation, motor control systems, battery management systems (BMS), automotive diagnostics, and other applications that require reliable long-distance CAN communication.
Where to buy?
Key Features
- Isolated CAN Communication: Provides galvanic isolation between MCU and CAN bus for enhanced safety.
- CAN FD Support: Compatible with both Classical CAN and high-speed CAN FD communication.
- High-Speed Data Transfer: Supports communication speeds up to 5Mbps.
- Improved Noise Immunity: Designed for stable operation in electrically noisy industrial environments.
- Selectable CAN Termination: Includes onboard selectable termination resistor support.
- Selectable CAN Termination: Includes onboard selectable termination resistor support.
- Industrial and Automotive Ready: Suitable for motor control, robotics, automation, and vehicle networks.
Technical Specifications
- Model
- TPT71050
- Manufacturer
- Boardoza
- Manufacturer IC
- 3PEAK
- Functions
- Isolated CAN FD Transceiver
- Supported Protocol
- CAN, CAN FD
- Communication Interface
- TX/RX Digital CAN Interface
- Data Rate
- Up to 5Mbps
- Logic Side Supply Voltage (VCC1)
- 2.25V – 5.5V
- Bus Side Supply Voltage (VCC2)
- 4.5V – 5.5V
- Isolation Type
- Galvanic Isolation
- Operating Temperature
- -40°C to +125°C
- Board Dimensions
- 40mm x 20mm
Board Pinout
( J1 ) Logic Side Connector
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | VCC1 | Logic Side Power Supply (2.25V – 5.5V) |
| 2 | TX | CAN Transmit Data Input |
| 3 | RX | CAN Receive Data Output |
| 4 | GND1 | Logic Side Ground |
( J2 ) Isolated Power Connector
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | VCC2 | Bus Side Power Supply (4.5V – 5.5V) |
| 2 | GND2 | Bus Side Ground |
( J3 ) CAN Bus Connector
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | CANL | CAN Low Bus Line |
| 2 | CANH | CAN High Bus Line |
Datasheet
Download (PDF)Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
