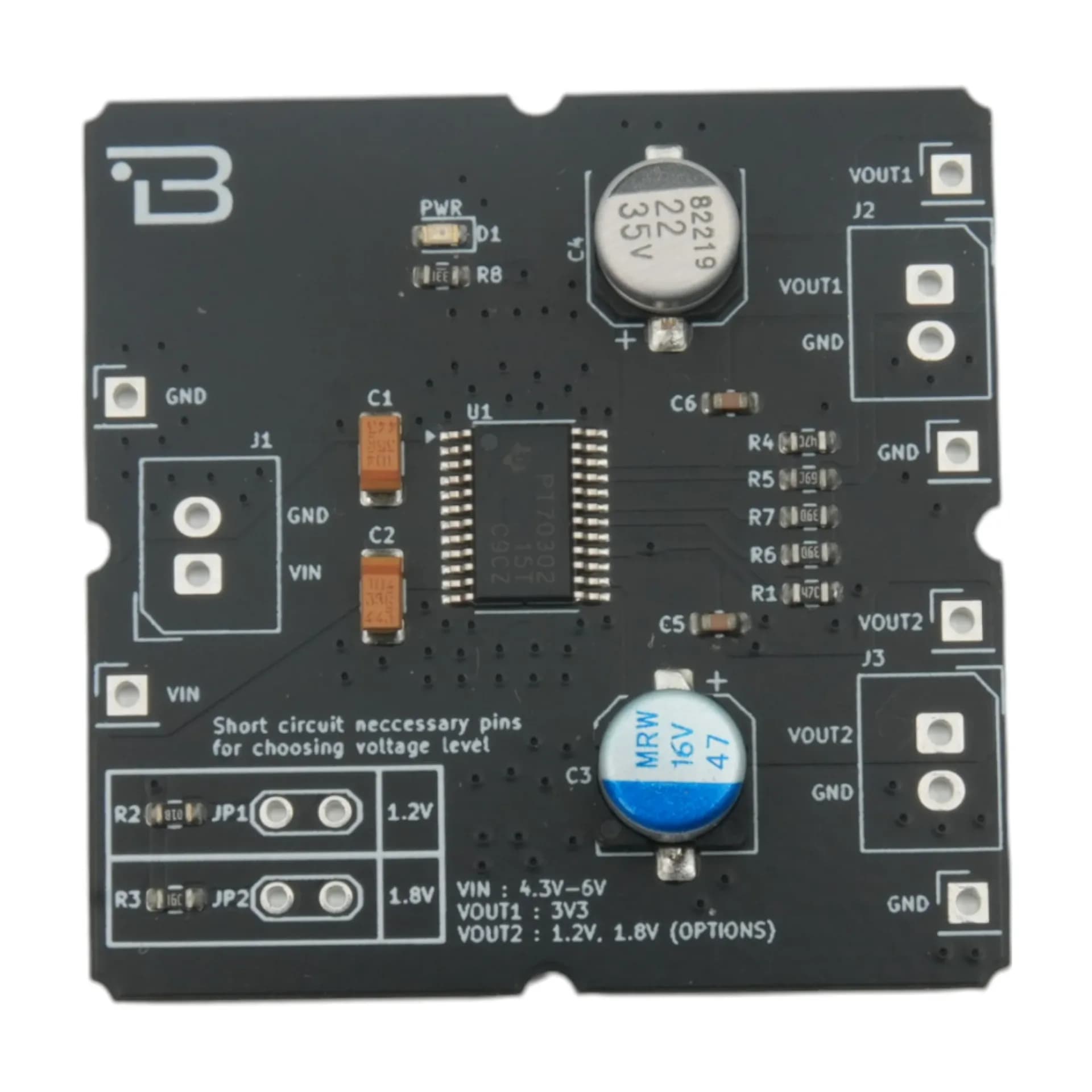

Boardoza TPS70302 Dual Output Voltage Regulator Breakout Board
The Boardoza TPS70302 Dual Output Voltage Regulator Breakout Board is a compact and efficient power regulation solution based on the Texas Instruments TPS70302 dual low-dropout linear regulator. Designed for modern embedded and low-power applications, this module provides two stable output rails from a single input supply — making it ideal for systems requiring split-voltage operation. With an input voltage range of 4.3V to 6V, the board delivers 3.3V fixed from the first output and a selectable 1.2V or 1.8V from the second output. The device’s low dropout voltage, high accuracy, and built-in protection features ensure excellent performance for powering microcontrollers, digital ICs, FPGAs, and precision analog components.
Where to buy?
Key Features
- Dual Regulated Outputs: Provides 3.3V fixed and selectable 1.2V or 1.8V outputs.
- High Accuracy: ±2% output accuracy across load and temperature variations.
- Integrated Power-On Reset: 120 ms delay ensures stable system startup.
- Comprehensive Protection: Features thermal shutdown and undervoltage lockout (UVLO).
- Efficient Split-Supply Design: Ideal for powering both analog and digital circuitry.
Technical Specifications
- Model
- Texas Instruments TPS70302
- Manufacturer
- Texas Instruments
- Input Voltage Range
- 4.3V – 6V
- Voltage
- 1.2V / 1.8V (Selectable) Output Current (VOUT1): Up to 1 A Output Current (VOUT2): Up to 2 A
- Accuracy
- ±2%
- Features
- UVLO, Thermal Shutdown, Power-On Reset
- Functions
- Dual Output Low-Dropout Regulator
- Operating Temperature
- -40°C ~ +125°C
- Board Dimensions
- 40mm x 40mm
Board Pinout
( J1 ) Power Input Connector
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | VIN | Power input (4.3V – 6V) |
| 2 | GND | Ground |
( J2 ) Output 1 Connector
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | VOUT1 | Fixed output voltage 3.3V |
| 2 | GND | Ground |
( J3 ) Output 2 Connector
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | VOUT2 | Selectable output voltage (1.2V or 1.8V) |
| 2 | GND | Ground |
Datasheet
Download (PDF)Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
