Boardoza TPAFE0808 8-Channel Configurable ADC/DAC/GPIO Breakout Board

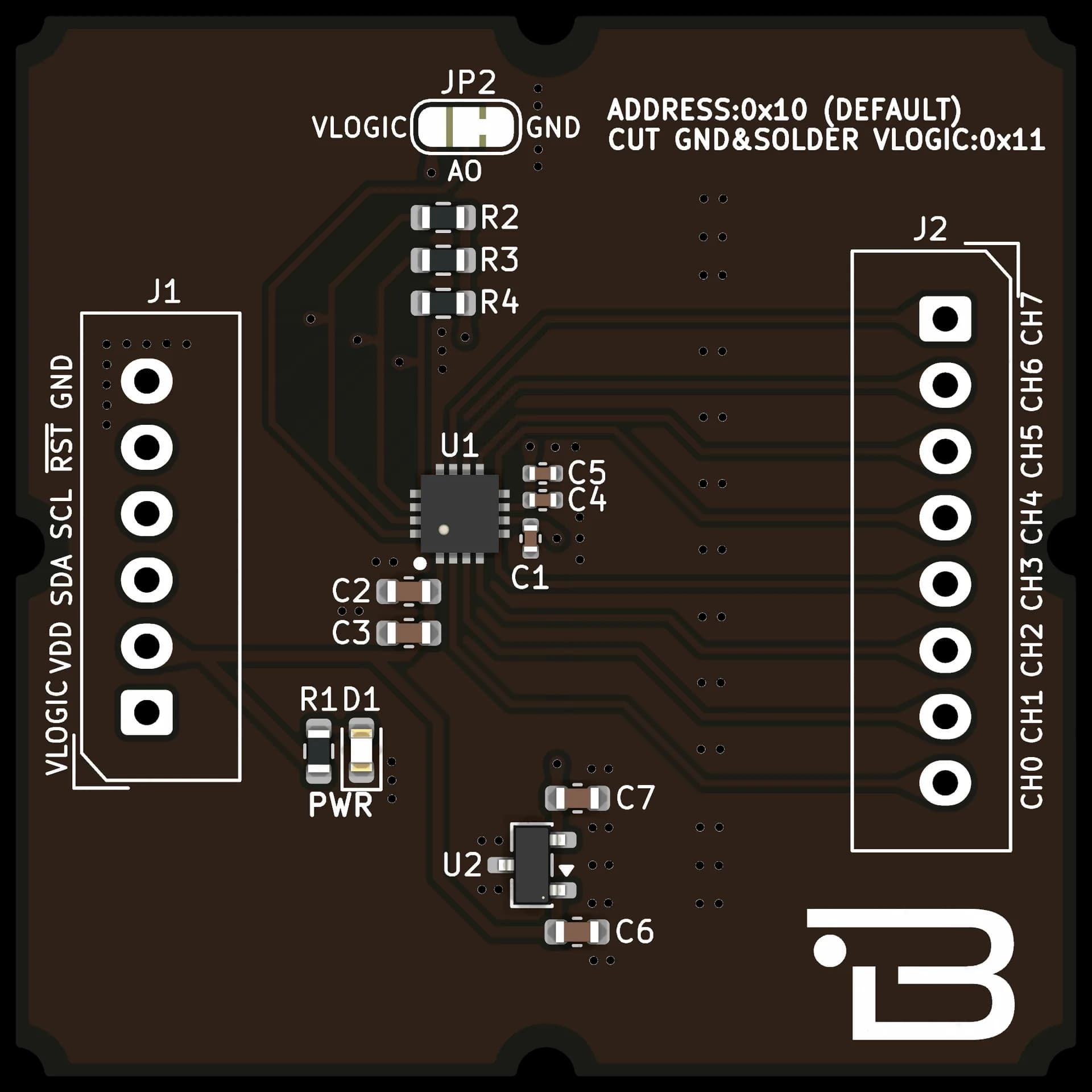

The Boardoza TPAFE0808 is an eight-channel analog and digital interface board built around the 3PEAK TPAFE0808-LFPR-S. It expands a microcontroller’s signal-handling capabilities by providing software-configurable ADC inputs, DAC outputs, and general-purpose digital I/O through a single I²C interface. Each channel can be assigned independently, allowing analog measurements, voltage outputs, and digital signals to share the same board according to the application’s requirements. 3PEAK product information
An onboard REF3025AIDBZR supplies the nominal 2.5 V conversion reference, while separate VDD and VLOGIC connections provide access to the device supply and digital-interface supply. The board also includes interface pull-ups, hardware reset access, and solder-selectable addressing. These functions support applications such as reading analog sensors, generating programmable voltage setpoints, and adding configurable I/O to monitoring and control systems.
Key Features
- Eight independently configurable ADC/DAC/GPIO channels.
- 12-bit ADC with eight multiplexed inputs.
- Eight 12-bit voltage-output DAC channels.
- Push-pull and open-drain GPIO support.
- Integrated die-temperature sensor.
- I²C communication up to 400 kHz.
- Onboard 2.5 V REF3025 voltage reference.
- Selectable I²C addresses: 0x10 and 0x11.
Technical Specifications
- Item
- TPAFE0808
- Input Voltage
- 2.7V – 5.5 V
- Functions
- ADC, DAC, GPIO
- Configurable Channels
- 8
- Resolution
- 12 bits per channel
- Operating Temperature
- −40+125 °C
- Board Dimensions
- 40x40mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
