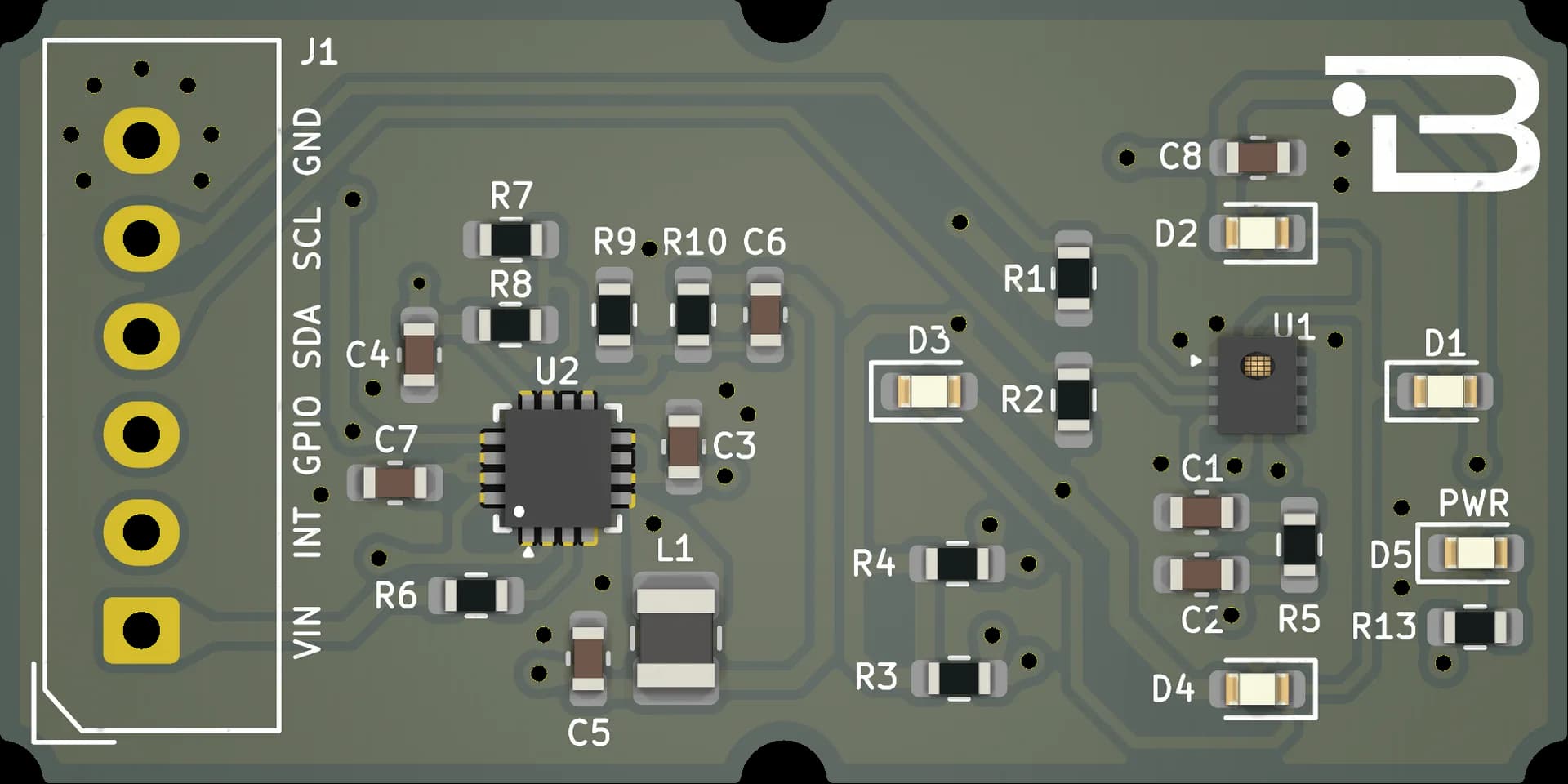

Boardoza TCS37013M RGB Color, Ambient Light and Proximity Sensor Breakout Board
The TCS37013M, an ordering variant of the TCS3701 sensor, is an ultra-high-precision RGB and ambient light sensor designed specifically for OLED backlight applications, providing accurate measurements of color temperature (CCT) and light intensity. The TPS65000 regulator integrated within the board provides a wide input voltage range of 3.3 V to 6 V for the TCS3701 sensor, which operates internally at 1.8 V, ensuring full compatibility with various systems. Its high dynamic range and low-noise power management make the board ideal for smartphone brightness control, wearable devices, and low-light IoT environments. All data is accessible via a single I2C bus, enabling rapid prototyping and seamless integration into professional hardware projects.
Key Features
- Integrated optical solution combining ambient light sensing and proximity detection in a single compact module
- Advanced proximity measurement with offset adjustment registers to compensate for unwanted IR energy reflection
- Digital ambient light sensing featuring UV and IR blocking filters for accurate photopic light intensity measurement
- I²C fast mode interface compatible with standard microcontroller communication protocols
- Factory calibrated LED driver and integrated IR LED for consistent optical performance
- Automatic ambient light subtraction to enhance proximity detection accuracy
- Interrupt-driven operation for efficient power management and system responsiveness
Technical Specifications
- Item
- TCS37013M ALS/Color and Proximity Sensor
- Input Voltage
- 3.3V to 6.0V
- Functions
- RGB Color, Ambient Light (ALS), and Proximity
- Operating Temperature
- -30°C to 70°C
- Board Dimensions
- 20mm x 40mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
