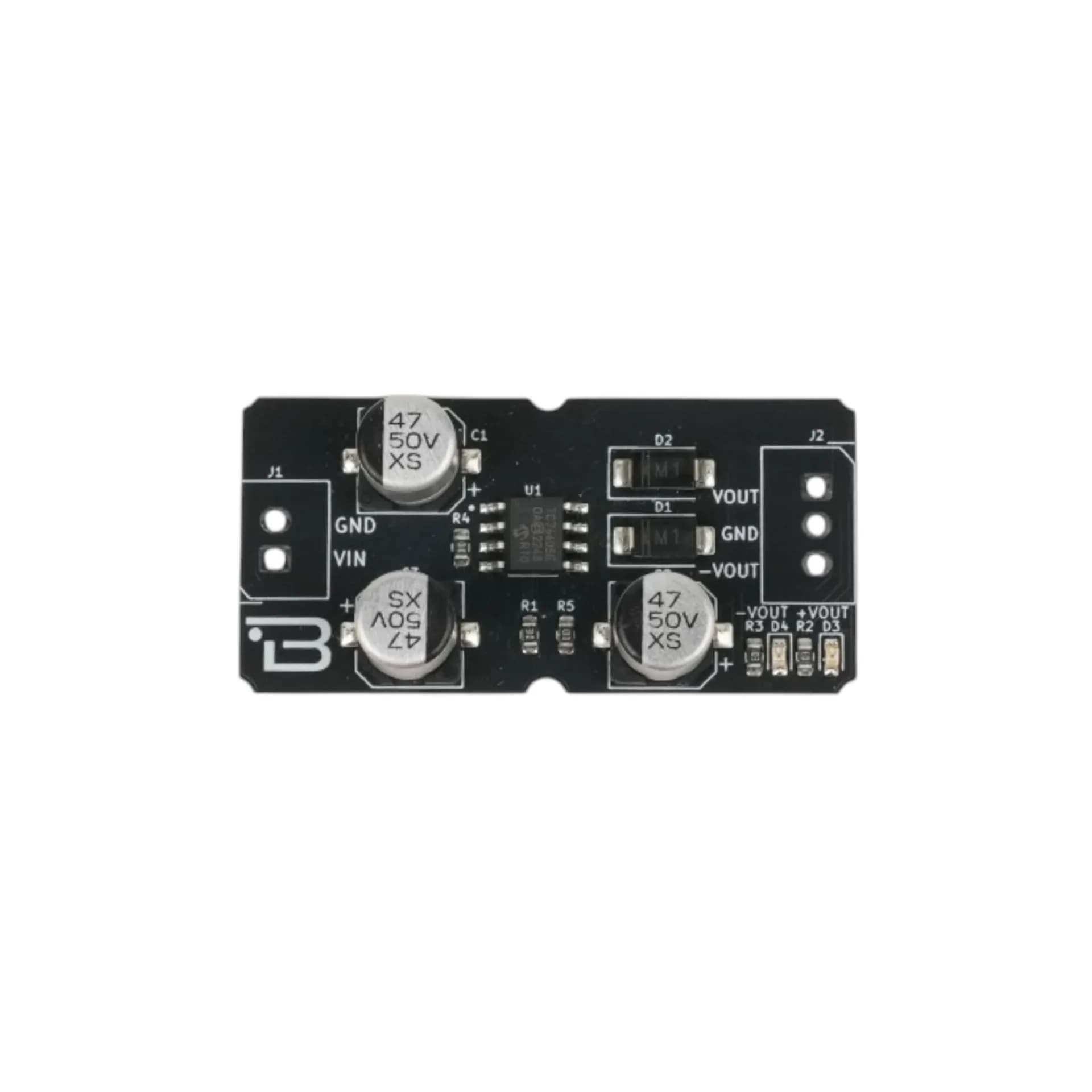

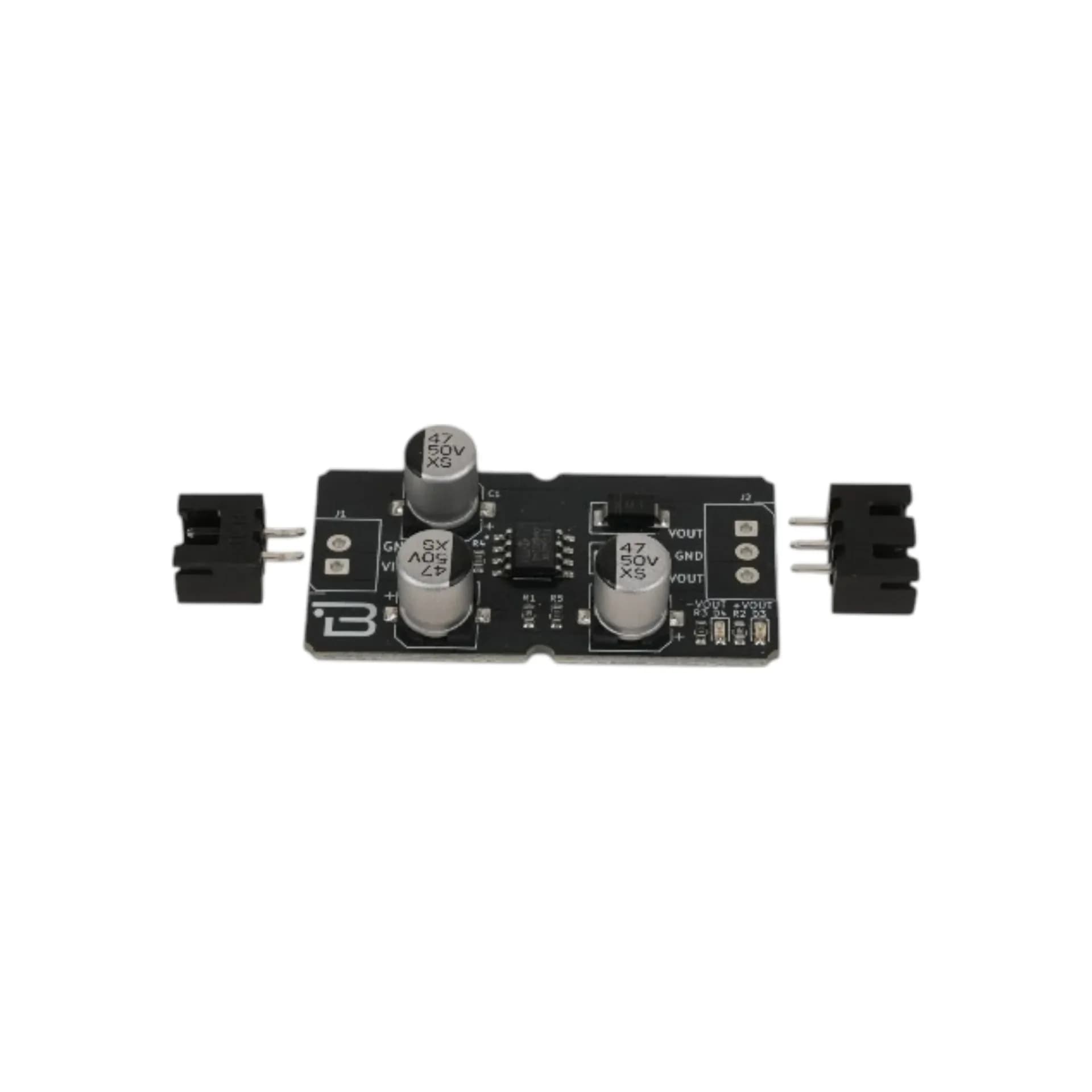

Boardoza TC7660S Symmetrical Breakout Board
Boardoza TC7660S-Symmetrical Breakout Board is a symmetrical voltage regulator that generates both positive and negative voltage outputs from a single input supply. It supports input voltages up to 12 V and can deliver a maximum output current of 15 mA. The VOUT pin provides the same voltage level as the applied input, while the -VOUT pin outputs the negative equivalent of that voltage. Based on the TC7660S charge pump IC, the board combines simplicity with robust performance, making it a preferred choice for engineers and developers who need stable symmetrical outputs with minimal design effort. This breakout board is well suited for applications that require dual supply voltage without complex power circuitry. It is ideal for operational amplifier circuits in audio and sensor applications, supports portable and battery-powered devices requiring compact and efficient voltage conversion, and ensures reliable operation in industrial equipment used in harsh or variable environments.
Key Features
- Symmetrical Voltage Generation: Generates both positive (VOUT) and negative (-VOUT) voltages from a single input using the TC7660S charge pump IC.
- Equal Output Levels: Provides ±VIN output, ensuring balanced voltage rails.
- High Efficiency: Up to 99.9% voltage conversion and ~98% power efficiency.
- Frequency Boost: Adjustable oscillator from 10 kHz to 45 kHz for reduced ripple.
- Easy Integration: Simple VIN, GND, VOUT, -VOUT connections.
Technical Specifications
- Model
- TC7660S-Symmetrical
- Manufacturer
- Boardoza
- Manufacturer IC
- Microchip Technology
- Input Voltage
- 3 V – 12 V
- Output Voltage
- Simple conversion of input voltage to ± of input voltage
- Output Current
- 10 mA
- Conversion Type
- Switched-capacitor charge pump
- Switching Frequency
- Up to 45 kHz
- Functions
- Symmetrical voltage regulation (± supply generation)
- Operating Temperature
- -40 °C to +85 °C
- Board Dimensions
- 40 mm × 20 mm
Board Pinout
( J1 ) Input Connector
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | VIN | Supply voltage input |
| 2 | GND | Ground |
( J2 ) Output Connector
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | VOUT | Positive output voltage |
| 2 | GND | Ground |
| 3 | -VOUT | Negative output voltage |
Datasheet
Download (PDF)Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
