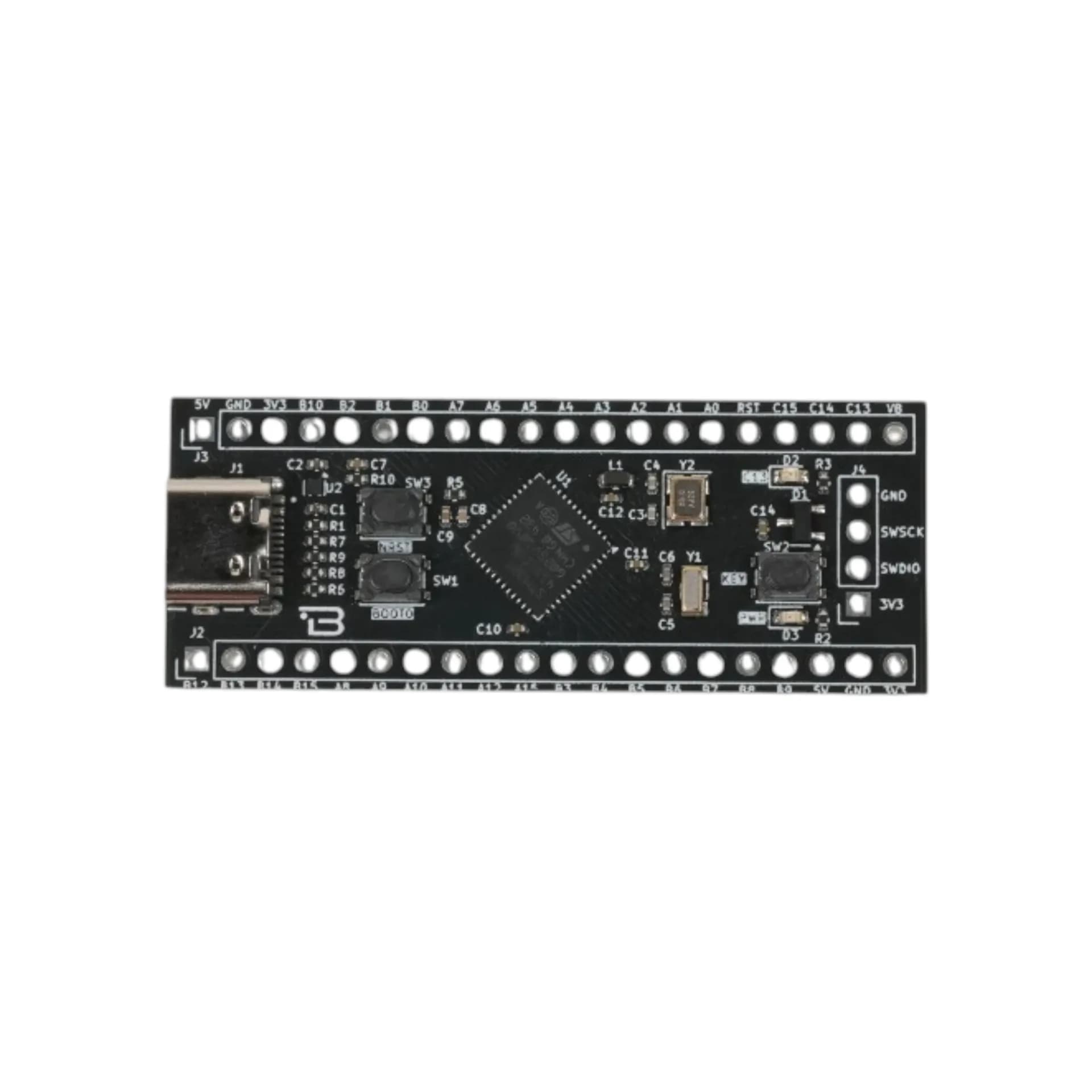

Boardoza STM32F411 Black Pill – Development Board
The Boardoza STM32F411CEU6 Black Pill Development Board is a compact development platform built around the STM32F411CEU6 microcontroller. Featuring a 100 MHz Arm® Cortex®-M4 core, it delivers strong processing performance in a small form factor and is well suited for projects that require greater capability than entry-level microcontrollers. The board includes 512 KB of Flash memory and 128 KB of SRAM, provides 32 general-purpose I/O pins, and supports commonly used communication interfaces such as UART, I²C, and SPI. Programming and debugging can be performed through USB DFU or SWD using tools such as ST-Link. Compatibility with STM32CubeIDE, PlatformIO, and the Arduino STM32 framework enables flexible development workflows.
Where to buy?
Key Features
- Arm® Cortex-M4 Core: 32-bit Cortex-M4 processor running at up to 100 MHz, delivering strong performance for embedded applications.
- Large On-Chip Memory: Equipped with 512 KB Flash and 128 KB SRAM for complex and memory-intensive projects.
- Rich Communication Interfaces: Supports multiple interfaces including UART, I²C, SPI, and I²S.
- Flexible Power Options: Can be powered via USB Type-C or through 3.3V / 5V header pins.
- Advanced Timers and PWM Support: Suitable for motor control, LED driving, and precise timing applications.
- Easy Programming and Debugging: Supports USB DFU and SWD (ST-Link) programming and debugging.
- Wide Software Compatibility: Works with STM32CubeIDE, PlatformIO, and Arduino STM32 framework.
Technical Specifications
- Model
- STM32F411CEU6
- Manufacturer
- Boardoza
- Manufacturer IC
- STMicroelectronics
- Operating Voltage
- 3.3 V - 5 V (USB or external supply)
- Voltage Input Type
- USB Type-C / 2.54 mm pin header
- Core
- Arm® Cortex-M4 (32-bit with FPU)
- Maximum Clock Frequency
- 100 MHz
- Flash Memory
- 512 KB
- SRAM
- 128 KB
- GPIO Pins
- 32
- Analog Inputs
- 10 (12-bit ADC)
- Interfaces
- UART, SPI, I²C, I²S
- Debug Interface
- SWD
- Operating Temperature
- -40 °C to +85 °C
- Board Dimensions
- 20.78 mm × 52.81 mm
Datasheet
Download (PDF)Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
