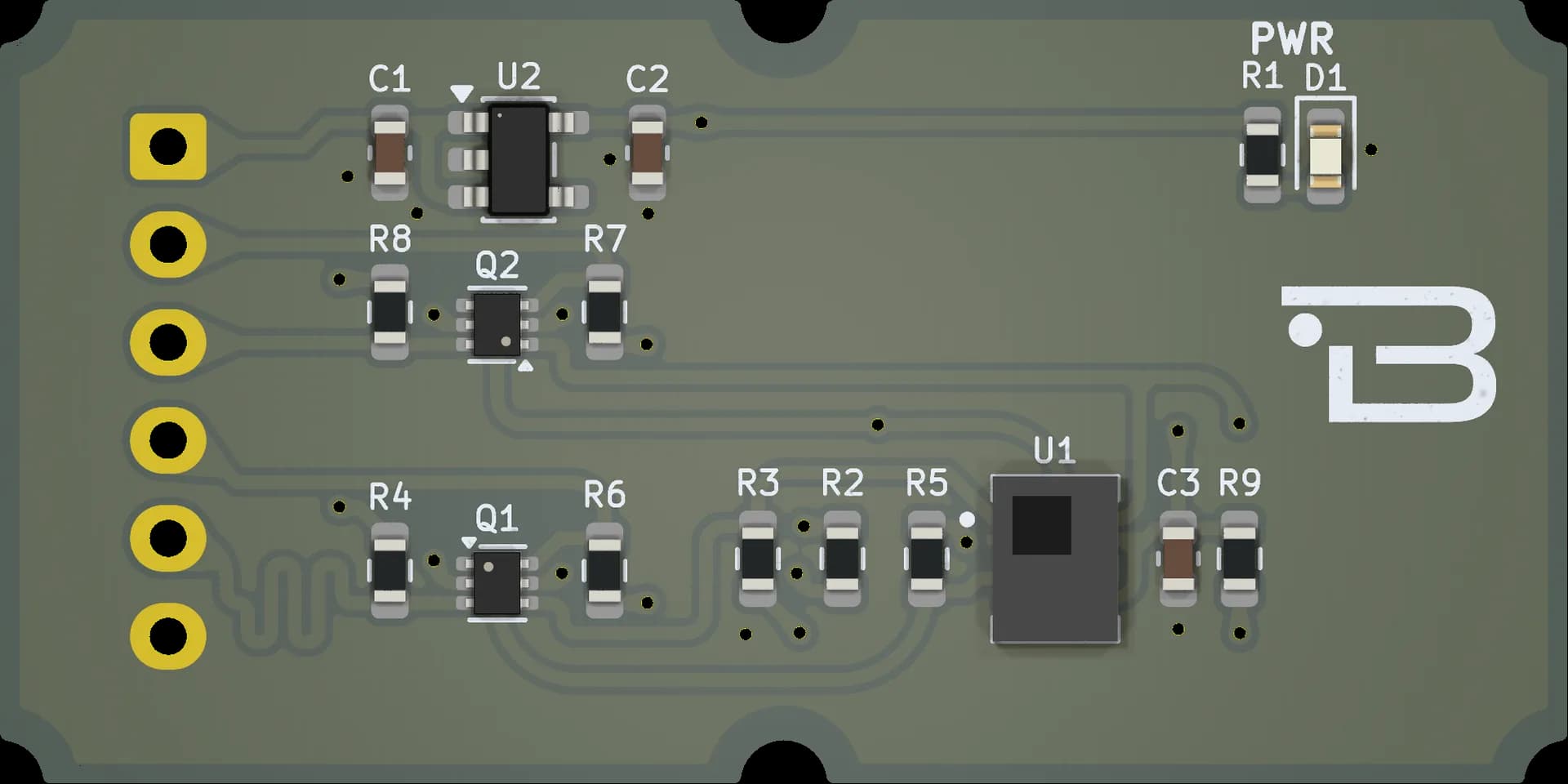

Boardoza STHS34PF80 Infrared Presence and Motion Sensor Breakout Board
The sensor board designed using the STHS34PF80 IC is a high-sensitivity infrared (IR) sensing solution developed for presence and motion detection applications. Operating within the 5 µm to 20 µm infrared wavelength range, the sensor provides reliable detection performance with an IR sensitivity of 2000 LSB/°C and 25 LSB rms noise (typical, AVG_TMOS = 32). It is capable of detecting stationary objects at distances of up to 4 meters within an 80° field of view and distinguishes between stationary and moving objects using its embedded smart detection algorithm. Featuring factory calibration, low power consumption, and support for both I²C and 3-wire SPI interfaces, the board provides a reliable and high-performance sensing solution for smart building systems, lighting control, industrial automation, and IoT applications.
Key Features
- 2-wire I²C / 3-wire SPI serial interface ( default I²C )
- One-shot mode
- High-sensitivity infrared presence and motion detection sensor board
- Reach up to 4 meters without lens for objects measuring 70 x 25 cm²
- Integrated silicon IR filter
- 80° field of view
- Capable of detecting stationary objects
- Capable of distinguishing between stationary and moving objects
- Low power
- IR sensitivity: 2000 LSB/°C
- RMS noise: 25 LSB rms (typical, AVG_TMOS = 32)
- Operating wavelength: 5 µm to 20 µm
- Local temperature sensor accuracy: ±0.3 °C
Technical Specifications
- Item
- B-STHS34PF80-BRK
- Input Voltage
- 3.3 V to 5V
- Functions
- High-sensitivity infrared (IR) sensor board
- Supply Current
- 6 mA
- IR sensitivity
- : 2000 LSB/°C
- Operating Temperature
- -40 °C to +85 °C
- Board Dimensions
- 40x20mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
