Boardoza SM351LT Magnetoresistive Sensor Breakout Board
The Boardoza SM351LT is a high-sensitivity magnetoresistive sensor module designed for lid, door, and drawer position detection. It features omnipolar sensing, activating with either pole of a magnet. With a push-pull output, the module eliminates the need for an external pull-up resistor, simplifying integration into various applications. Model: Honeywell SM351LT Voltage Supply: 3.3V - 5V Voltage Input Type: 3-pin 2.50mm header Current Consumption: 150µA Sensor Type: Magnetoresistive Sensor Output Type: Push-Pull (No external pull-up required) Operate Sensing Range: Typical: 7 Gauss Operating Temperature: -40°C to +85°C Board Dimensions: 20mm x 20mm
Where to buy?
Key Features
- Lid, Door, and Drawer Position Detection: Detects open/closed states using a magnet.
- Non-Contact Operation: Works through non-metallic surfaces, making it ideal for sealed enclosures.
- Omnipolar Sensing: Responds to both north and south poles of a magnet for flexible placement.
- Push-Pull Output: Built-in driver circuit eliminates the need for an external pull-up resistor.

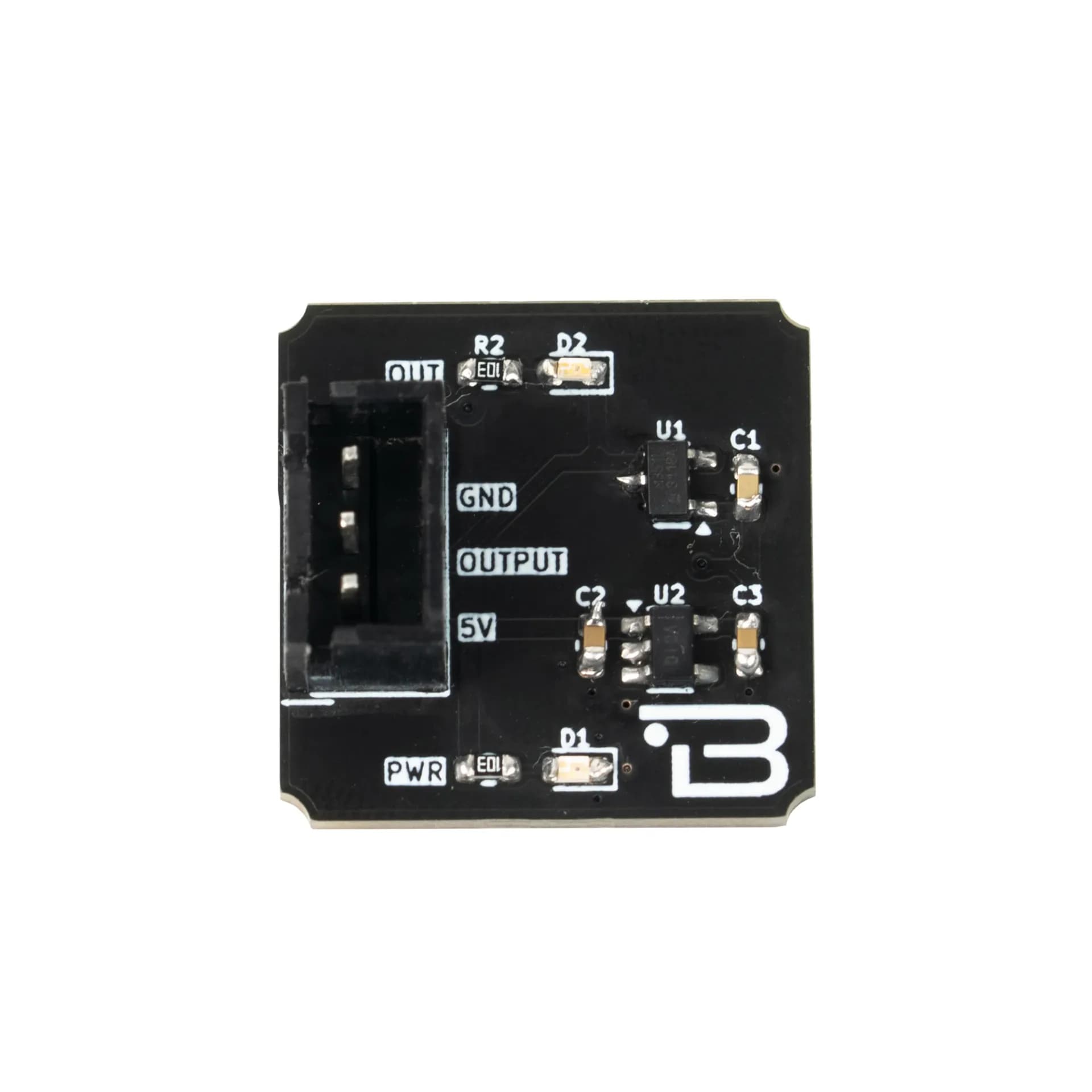

- Dual LED Indicators: Includes Power Good LED (D1) and Output Indicator LED (D2) for real-time status feedback.
Technical Specifications
- Model
- Honeywell SM351LTV
- Voltage Supply
- 3.3V - 5V
- Sensor Type
- Hall-Effect Sensor
- Voltage Input Type
- Push-Pull (No external pull-up required)
- Consumption
- 150µA
- Operate Sensing Range
- Typical: 7 Gauss
- Operating Temperature
- -40°C to +85°C
- Board Dimensions
- 20mm x 20mm
Board Pinout
Board Pinout
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | VCC | Power Supply (3.3V - 5V) |
| 2 | OUT | Digital Output (Push-Pull) |
| 3 | GND | Ground |
Datasheet
Download (PDF)Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
