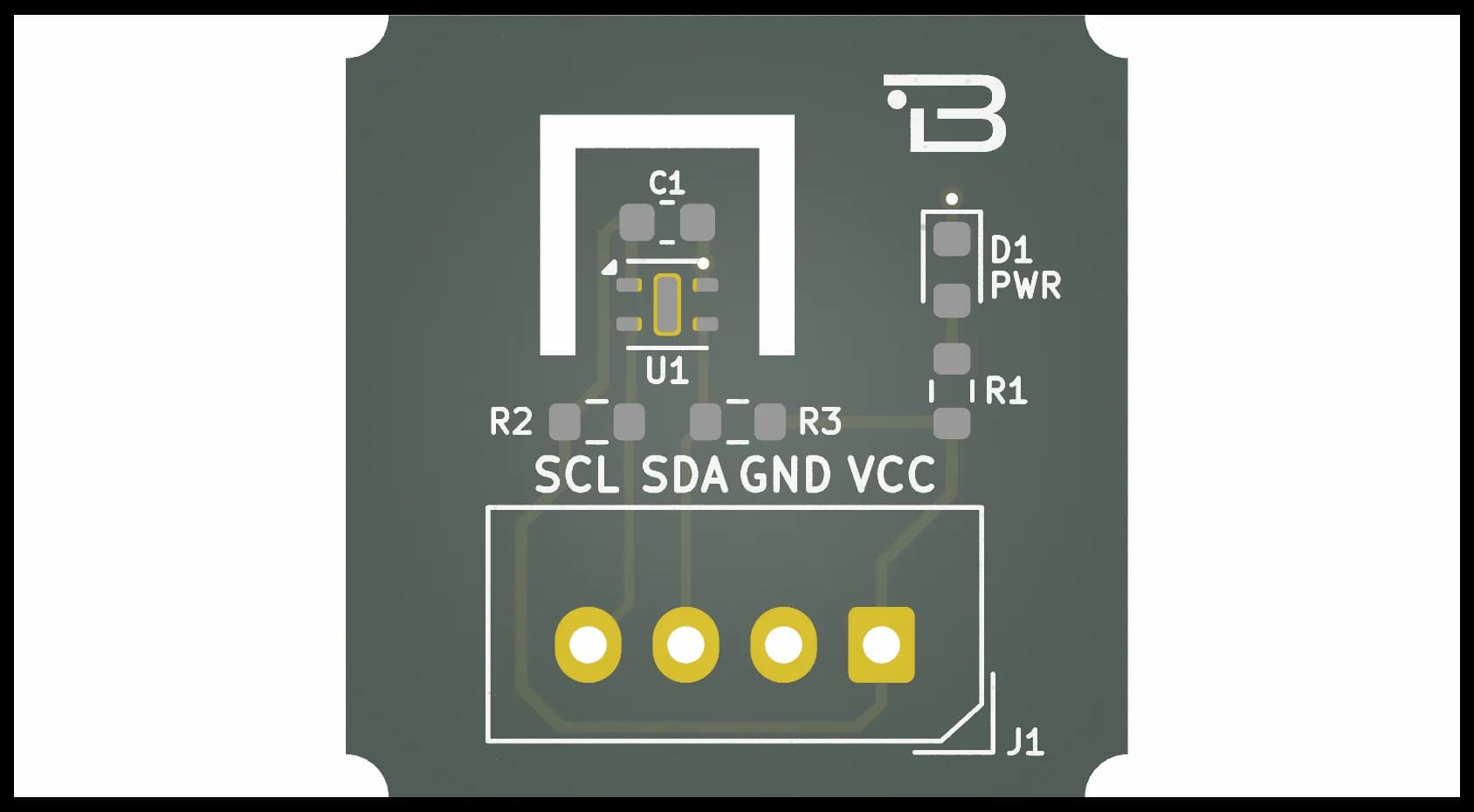

Boardoza SHTC3 Humidity and Temperature Sensor Breakout Board
The SHTC3 Module Card is a compact and low-power sensor solution based on the high-precision SHTC3 chip from Sensirion, the Swiss leader in sensor technology. This module is designed to accurately and quickly measure environmental humidity (0% to 100% Relative Humidity (RH)) and temperature (-40°C to 125°C) data.
The chip features calibrated and linearized digital outputs, which eliminates the need for additional calibration or signal processing. Communication is carried out via the standard I²C (Inter-Integrated Circuit) digital interface, making it easy to integrate into Arduino, Raspberry Pi, and other microcontroller systems.
The most significant advantages of the module are its extremely low power consumption (especially in sleep mode) and fast response time. These characteristics make the SHTC3 module an ideal choice for battery-powered smart home devices, mobile weather stations, wearable technology products, and other energy-constrained IoT applications.
Key Features
- High Accuracy Typical humidity accuracy: ±2 %RH and ±0.2 °C temperature (Across a wide measurement range).
- Wide Measurement Range : Relative Humidity (RH): 0% to 100%. Temperature: -40°C to 125°C
- Ultra-Low Power Consumption : Typical current consumption in Sleep mode: 0.3 uA. Typical 270uA in low-power measurement mode.
- Digital Communication : Easy integration via I2C interface. (Supports fast mode up to 1 MHz).
- Internal Calibration : Fully calibrated and linearized digital signal output. Minimum requirement for external components.
Technical Specifications
- Item
- SHTC3
- Input Voltage
- 3V3
- Functions
- Humidity & Temperature
- Operating Temperature
- -40°C to +125°C
- Board Dimensions
- 20x20mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
