SensorsSKU: B0101V10000224

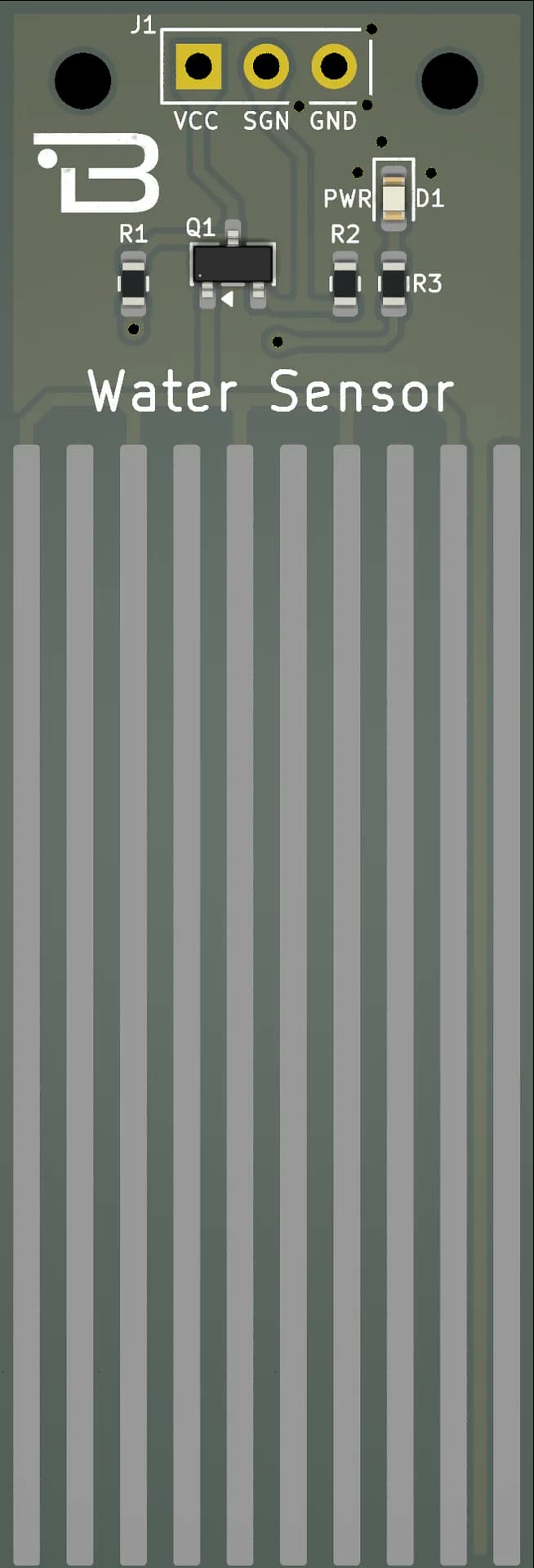

Boardoza S8050 Water Level Sensor Breakout Board
Boardoza Water Sensor is designed to detect and monitor water level using conductive trace sensing technology. The sensor generates an analog signal proportional to the water level, allowing simple and reliable measurement through microcontroller ADC inputs. The board is suitable for liquid level monitoring, overflow detection, and general water sensing applications in embedded and IoT systems.
1 / 2
Key Features
- Conductive trace based water level detection
- Analog output proportional to water level
- Compatible with microcontroller ADC inputs
- Simple interface for embedded and IoT applications
- Compact and easy-to-integrate design
Technical Specifications
- Item
- S8050
- Input Voltage
- 3,3Vdc - 5Vdc
- Functions
- Water Detectıon
- Operating Temperature
- -40 °C/+85 °C
- Board Dimensions
- 20mm x 58mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
