RF CommunicationSKU: B0201V10000151

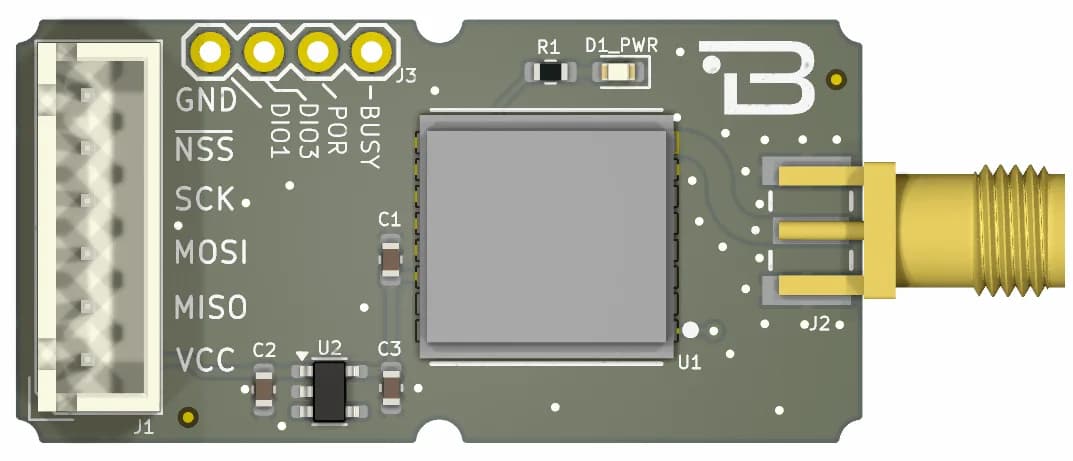

Boardoza RFM68LCW 868S2 LoRa Transceiver Breakout Board
The RFM68LCW is an ultra-low power, high performance, high integration LORA/FSK transceiver for a wide range of 868 to 960 M Hz wireless applications.The RFM68LCW supports fewer peripheral components, transmitting power up to+22 dBm, receiving sensitivity up to -129 dBm, duty-cycle operation mode, channellistening, high-precision RSSI, etc. The level of integration and the low consumptionof the RFM68LCW can provide more flexible long range wireless applications andmake products more differentiated and competitiveness.
1 / 2
Key Features
- 868 MHz LORA Transceiver
- Tx Power: 22dBm Max. (configurable through software)
- Modulation: LORA/GFSK/FSK
- Data Rate: 1.76-62.5 kbps (LORA) or 0.6-300 kbps (FSK)
- Sensitivity：-129dBm @ BW=125KHz and SF=9
- Receiving Current: 8.8mA @ BW=125Khz
- Sleep Current: 160nA @ Duty Cycle=OFF, 600nA @ Duty Cycle=ON
- SMA Female Connector on Board
- 4-wire SPI Interface
- 3.3V SPI/control logic; onboard TLV73333 regulator powers the radio from a 3.6V-5.5V board input. Use level shifting for 5V host signals.
- Power Led Indicator
Technical Specifications
- Item
- RFM68LCW 868S2
- Board Input Voltage
- 3.6V-5.5V
- Radio Supply and Logic Level
- 3.3V (onboard regulator; logic is not 5V tolerant)
- Functions
- 868 MHz LORA Transceiver Module
- Operating Temperature
- -40/+85 °C
- Board Dimensions
- 20x40mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
