SensorsSKU: B0101V10000001

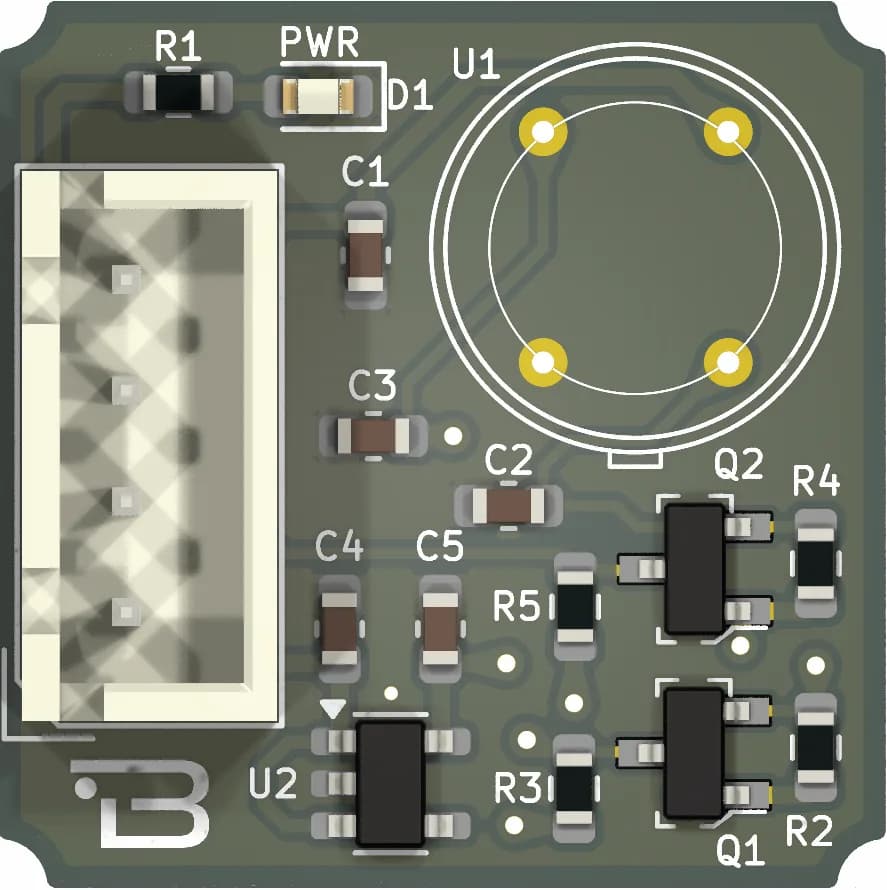

Boardoza PYD1598 PIR Motion Sensor Breakout Board
PYD1598 is a PIR (Passive Infrared) sensor from Excelitas Technologies. It uses human body heat for motion detection and is often used in automatic light control applications.
1 / 2
Key Features
- Motion detection unit with Interrupt function
- High responsivity ceramic pyroelectric elements
- Dual detector with 2 × 1 mm2 elements
- 130◦ field-of-view
- TO-5 metal housing for high EMI immunity
Technical Specifications
- Item
- PYD1598
- Voltage Supply
- 3.3V - 5V
- Supply Current
- 3.5uA
- Functions
- Motion Detection
- Operating Temperature
- -40/+70 °C
- Board Dimensions
- 20x20mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
