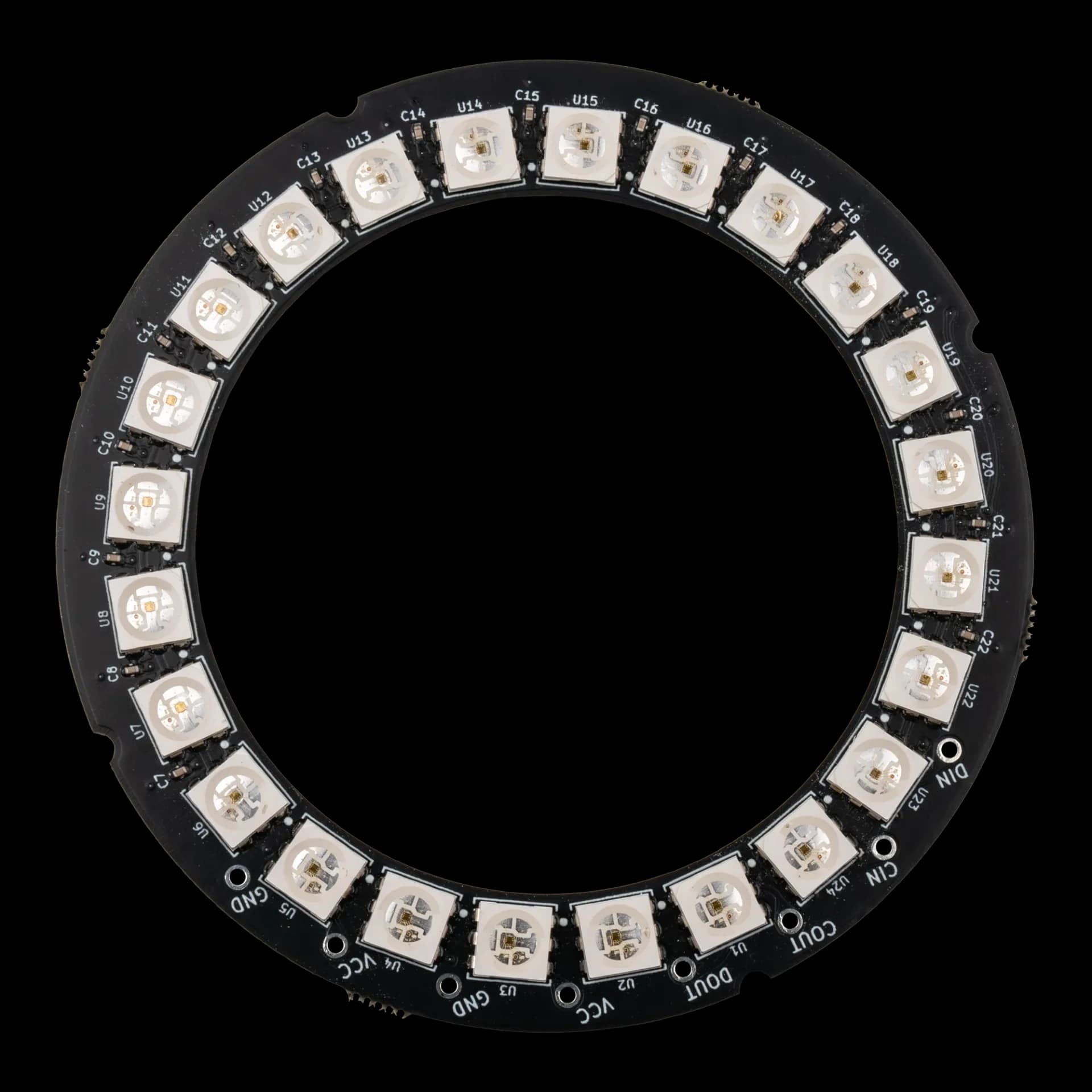

Boardoza Phoenix24 Breakout Board

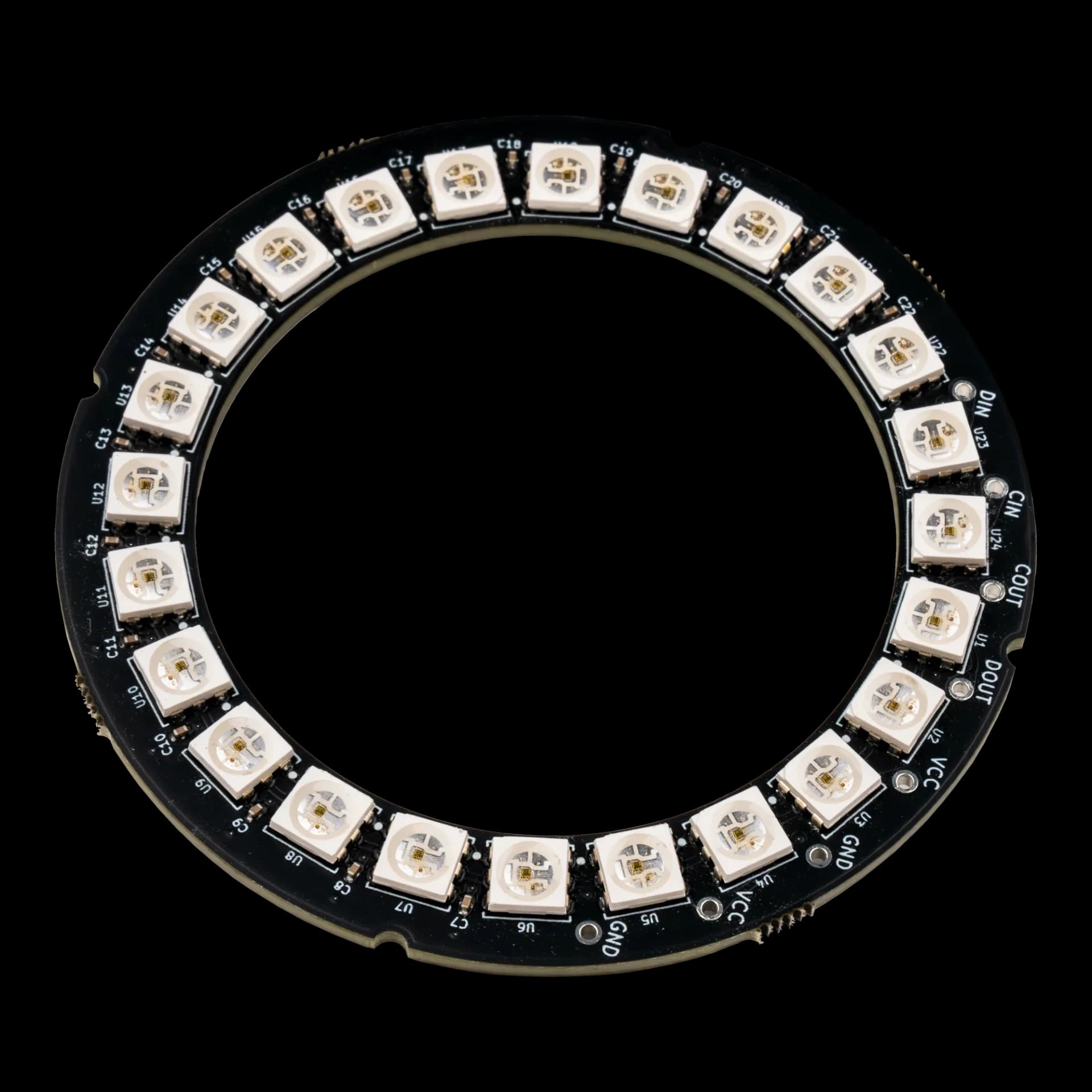

The Boardoza Phoenix24 is a high-performance addressable RGB (ARGB) LED breakout board featuring 24 individually addressable LEDs based on the T3A33BRG-H9C0002X1U1930 LED chipset. It is designed to produce vibrant, dynamic lighting effects while maintaining reliable signal integrity across complex LED chains. With DIN, CIN, DOUT, and COUT signal routing and support for both CMOS and TTL logic levels, the Phoenix24 can be easily integrated into a wide range of embedded systems. Its THT (Through-Hole) and SMD (Surface-Mount) connection options make it suitable for both rapid prototyping and final product designs. The board is ideal for lighting installations, user interfaces, visual feedback systems, and decorative applications.
Key Features
- 24 Addressable RGB LEDs: Enables vivid, dynamic, and individually controllable lighting effects.
- CMOS & TTL Signal Compatibility: Ensures seamless integration with a wide range of microcontrollers and logic systems.
- Dedicated Data & Clock Lines: Separate DIN, CIN, DOUT, and COUT signals provide reliable signal flow and easy daisy-chaining.
- Flexible Connection Options: Supports both THT (Through-Hole) and SMD (Surface-Mount) connections for versatile assembly.
- Wide Application Support: Ideal for lighting systems, visual feedback, user interfaces, and decorative projects.
Technical Specifications
- Model
- Phoenix24
- Manufacturer
- Boardoza
- Functions
- Addressable RGB LED Lighting Board
- Input Voltage
- 3.3 V / 5 V
- LED Model
- T3A33BRG-H9C0002X1U1930
- Number of LEDs
- 24
- LED Type
- Individually addressable RGB LEDs
- Logic Compatibility
- TTL & CMOS
- Data Interface
- Serial Data & Clock (DIN / CIN / DOUT / COUT)
- Daisy-Chain Support
- Yes
- Operating Temperature
- -40 °C to +85 °C
- Board Dimensions
- 67.24 mm × 67.18 mm

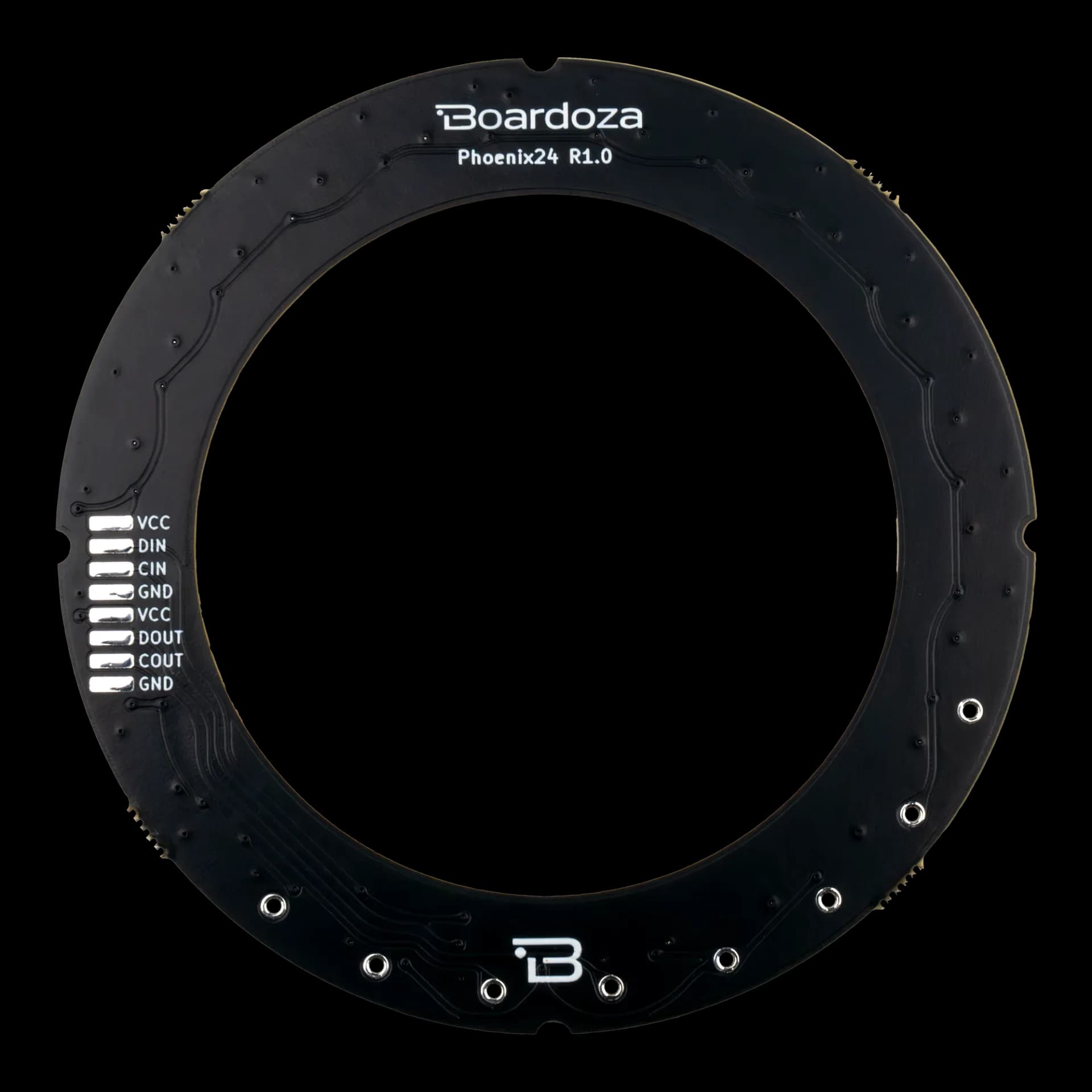

Board Pinout
( J1 ) Power Connector
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | VCC | Power Supply |
( J2 ) Power Connector
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | VCC | Power Supply |
( J3 ) Data Input
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | DIN | Serial Data Input |
( J4 ) Clock Input
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | CIN | Clock Input |
( J5 ) Data Output
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | DOUT | Serial Data Output |
( J6 ) Clock Output
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | COUT | Clock Output |
( J7 ) Ground
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | GND | Ground |
( J8 ) Ground
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | GND | Ground |
Datasheet
Download (PDF)Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
