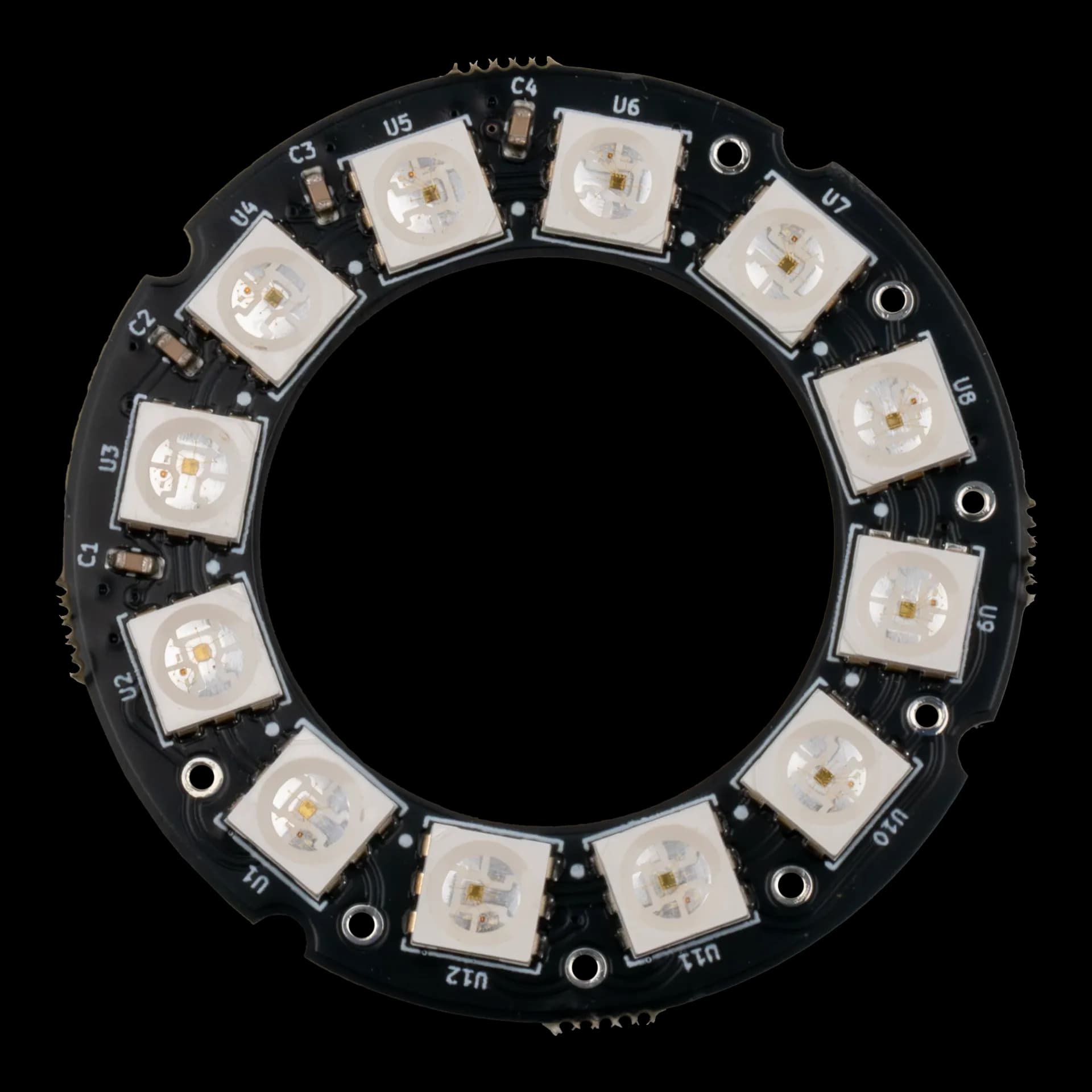

Boardoza Phoenix12 Breakout Board

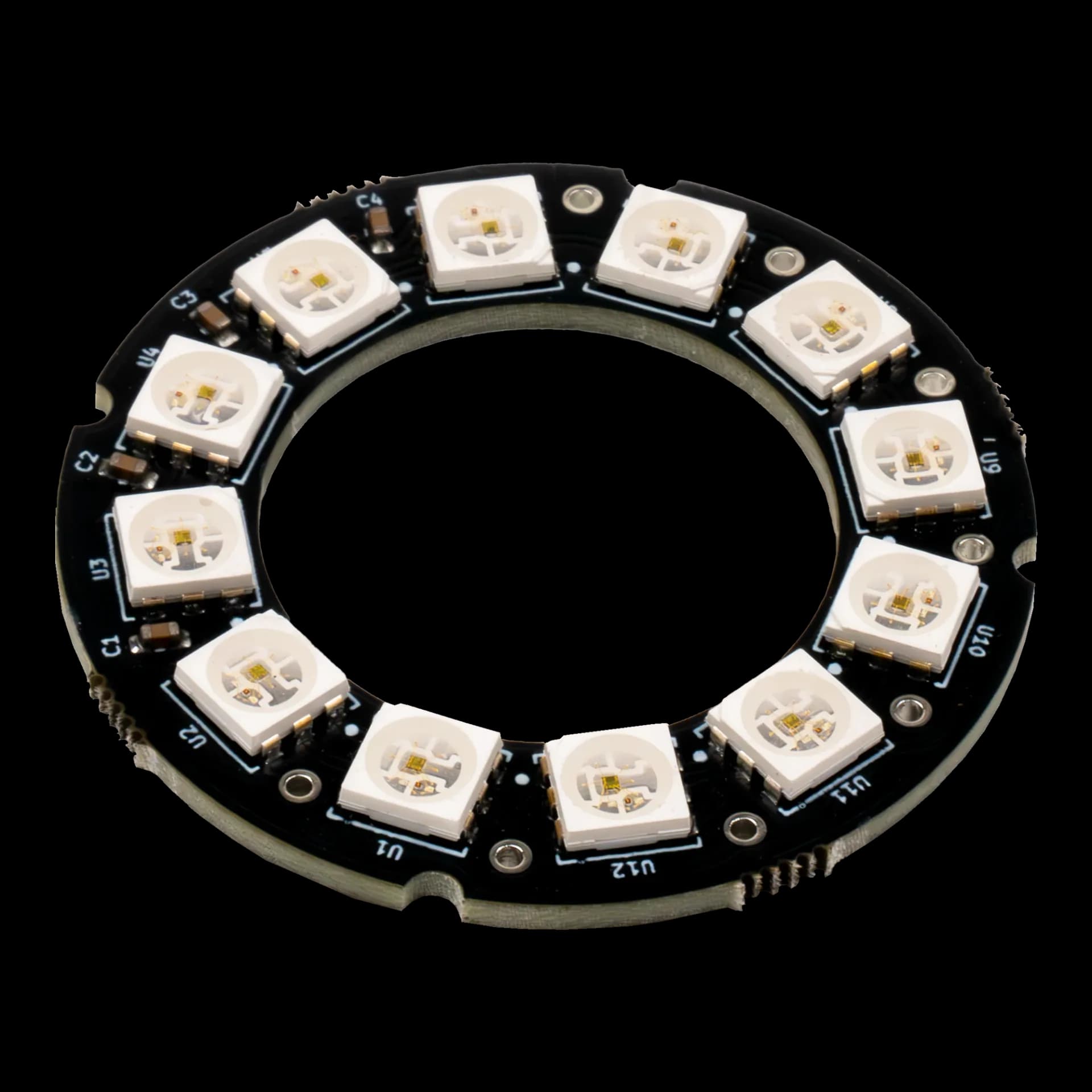

The Boardoza Phoenix12 is a compact, ring-shaped addressable RGB LED breakout board featuring 12 individually controllable RGB LEDs arranged in a circular layout with an open center. This design makes it particularly suitable for creative lighting applications that require uniform circular illumination. Designed to operate with both 3.3 V and 5 V power supplies, the B-Phoenix12-BRK is compatible with a wide range of microcontrollers and digital systems. Its addressable LED architecture allows each LED’s color and brightness to be controlled independently, enabling smooth animations, dynamic lighting effects, and customized visual patterns. The board is ideal for photography and videography lighting, wearable electronics, decorative installations, artistic projects, and interactive applications.
Key Features
- 12x Addressable RGB LEDs: Each LED can be individually controlled for color and brightness, enabling dynamic lighting effects and smooth animations.
- Ring-Shaped Open-Center Design: Circular form factor optimized for camera, phone, and creative lighting applications.
- Wide Voltage Compatibility: Operates with both 3.3 V and 5 V power supplies for flexible system integration.
- Modular & Expandable Structure: Multiple boards can be daisy-chained to create larger and customizable lighting systems.
- Flexible Connection Options: Supports both SMD and through-hole (THR) soldering pads for easy installation.
- TTL & CMOS Logic Compatible: Ensures reliable operation with common microcontrollers and digital circuits.
- Creative Application Ready: Ideal for photography lighting, wearable electronics, decorative projects, and visual art installations.
Technical Specifications
- Model
- Phoenix12
- Manufacturer
- Boardoza
- Functions
- Addressable RGB LED Ring
- Input Voltage
- 3.3 V / 5 V
- LED Model
- T3A33BRG-H9C0002X1U1930
- Number of LEDs
- 12
- LED Type
- Individually addressable RGB LEDs
- Logic Compatibility
- TTL & CMOS
- Data Interface
- Serial Data & Clock (DIN / CIN / DOUT / COUT)
- Daisy-Chain Support
- Yes
- Operating Temperature
- -40 °C to +85 °C
- Board Dimensions
- 39.97 mm × 39.95 mm

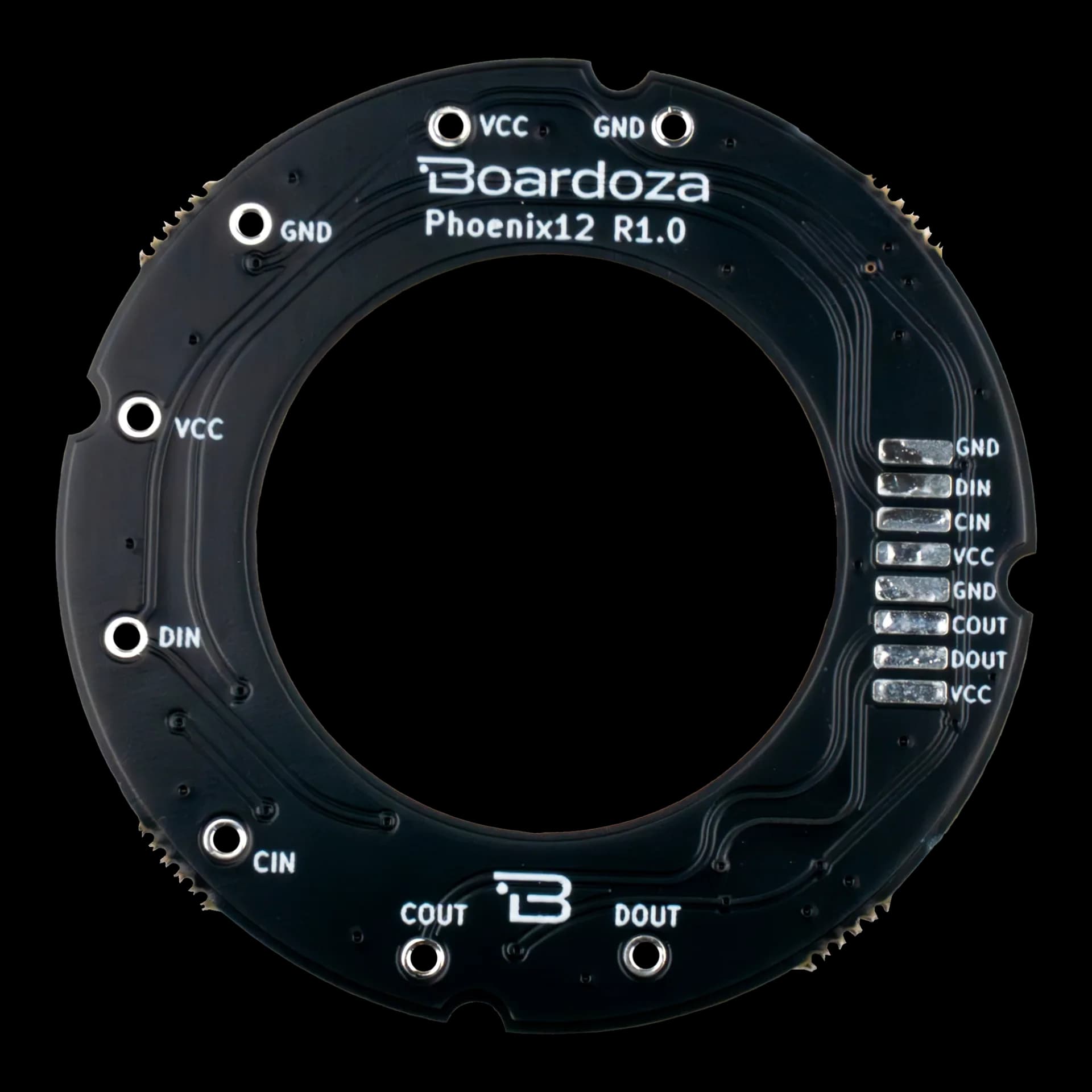

Board Pinout
( J1 ) Power Connector
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | VCC | Power Supply (3.3V / 5V) |
( J2 ) Power Connector
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | VCC | Power Supply (3.3V / 5V) |
( J3 ) Clock Output
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | COUT | Clock Output |
( J4 ) Data Output
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | DOUT | Serial Data Output |
( J5 ) Clock Input
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | CIN | Clock Input |
( J6 ) Data Input
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | DIN | Serial Data Input |
( J7 ) Ground
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | GND | Ground |
( J8 ) Ground
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | GND | Ground |
Datasheet
Download (PDF)Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
