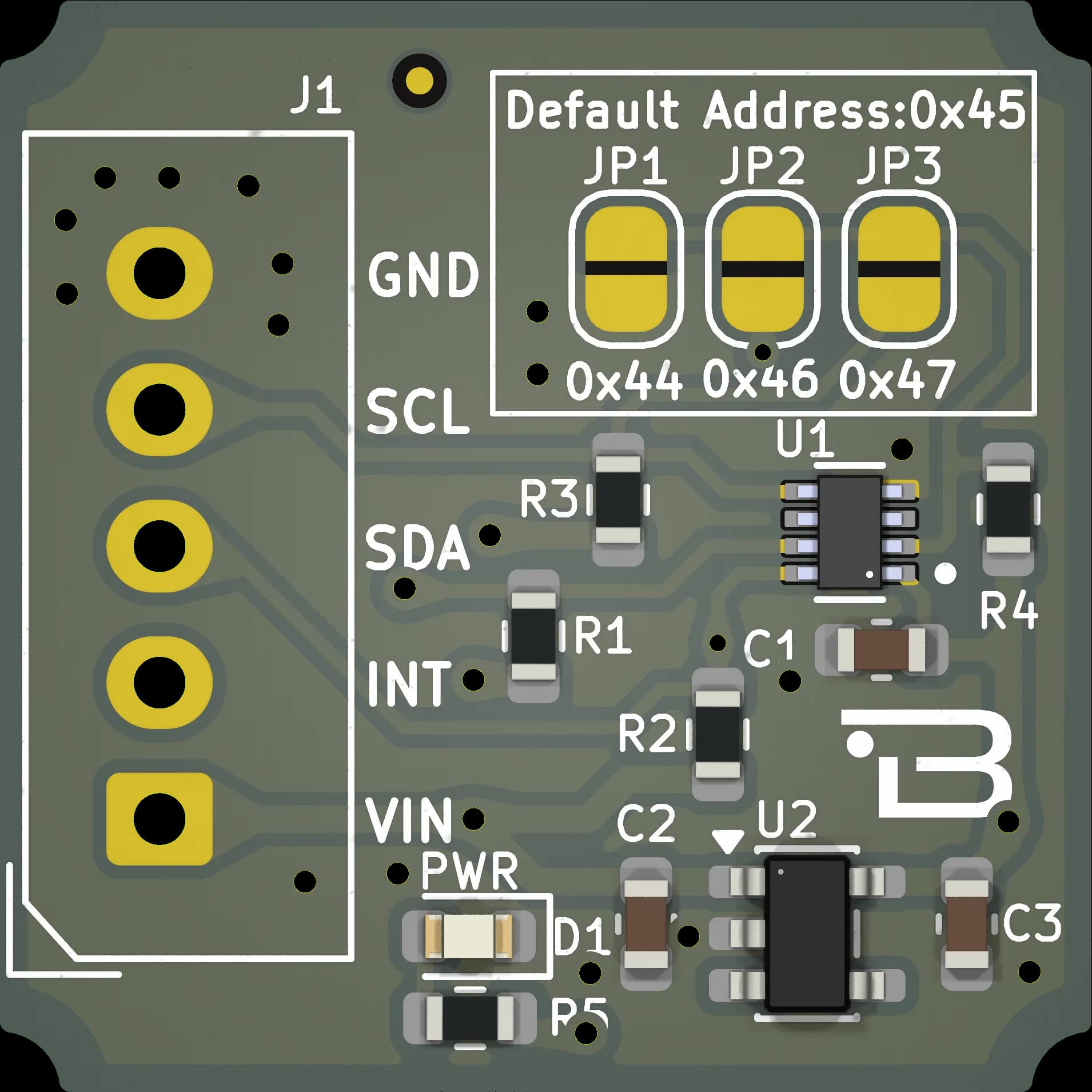

Boardoza OPT4048DTSR Ambient Light and Color Sensor Breakout Board
Boardoza OPT4048 Color Sensor Board is a high-precision optical sensing solution designed for advanced ambient light and color measurement applications. Based on the OPT4048, the board supports high-resolution color measurement in CIE color space, correlated color temperature (CCT) calculation, and accurate ambient lux sensing.
The sensor features high infrared rejection, allowing reliable measurements even behind dark optical windows where IR leakage commonly affects conventional light sensors. With automatic full-scale range detection and a 26-bit dynamic measurement architecture, the device can accurately measure very low and very high light levels without manual calibration or range switching. The board supports continuous and one-shot measurement modes, programmable interrupt generation, threshold detection, CRC protected output registers, and integrated sample counters for reliable data acquisition in embedded and industrial systems.
Its high-speed I2C interface, low-noise optical front-end, and configurable conversion timing make it suitable for smart lighting, display brightness control, camera white balance systems, environmental monitoring, medical devices, and industrial optical sensing applications.
Key Features
- OPT4048 based high-precision ambient light and color sensor
- High-resolution color measurement with CIE and CCT calculation
- Accurate ambient lux measurement
- High infrared rejection for operation behind dark optical windows
- 26-bit dynamic measurement architecture
- Automatic full-scale range detection up to 144k lux
- Programmable conversion times from 600 µs to 800 ms
- Continuous and one-shot measurement modes
- Configurable interrupt and threshold detection support
- Integrated CRC and sample counter for reliable data transfer
- High-speed I2C interface support up to 2.6 MHz
- Suitable for smart lighting, display, camera, and industrial sensing systems
- Supports up to 5V power input with 3.3V-compatible I/O levels
Technical Specifications
- Item
- OPT4048 Color Sensor Board
- Input Voltage
- 3V3-5V (IO Voltage Level 3V3)
- Functions
- Ambient light, lux, chromaticity, and color sensing
- Sensor Supply Current
- Typical operating current in darkness: 24 μA; typical standby current in darkness: 2 μA (sensor IC only)
- Conversion Time
- 600 µs to 800 ms
- Interface
- I2C
- Measurement Range
- Up to 144284 lux
- Dynamic Range
- 26-bit
- Operating Temperature
- -40°C / +85°C
- Board Dimensions
- 20x20mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
