RF CommunicationSKU: B0201V10000013

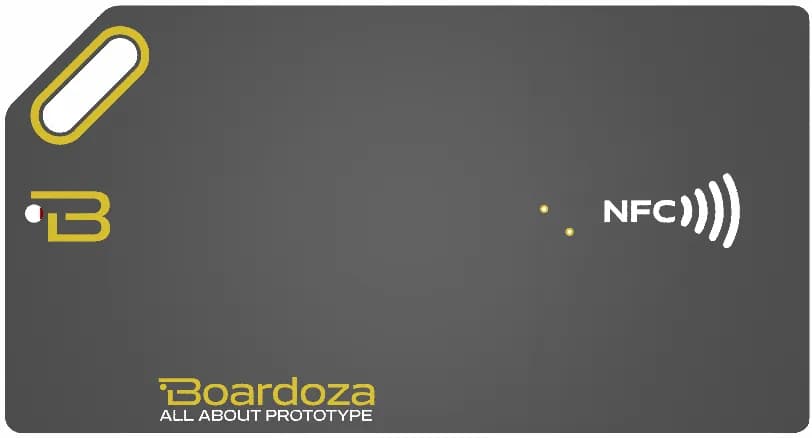

Boardoza NT3H2111W0FHKH NFC Energy Harvesting Breakout Board
NT3H2111W0FHKH NTAG I2C energy harvesting NFC Forum Type 2 Tag from NXP. Designed to be the perfect enabler for NFC in home-automation and consumer applications, this feature-packed, second-generation connected NFC tag is the fastest, least expensive way to add tap-and-go connectivity to just about any electronic device.
The second-generation technology provides four times higher pass-through performance, along with energy harvesting capabilities, yet NTAG I2C plus devices are optimized for use in entry-level NFC applications and offer the lowest BoM of any NFC solution.
1 / 2
Key Features
- ISO/IEC 14443 Part 2 and 3 compliant
- Configurable field detection pin based on open-drain implementation to signal NFC events or synchronize pass-through data transfer
- Energy harvesting from NFC field, so as to power external devices (e.g. connected microcontroller)
Technical Specifications
- Item
- Boardoza NT3H2111 Module
- Operating Frequeny
- 13.56MHz
- Memory
- 2k bytes EEPROM - 64 bytes SRAM
- Input Capacitance
- 50 pF
- Operating Temperature
- -40°C \~ 105°C
- Board Dimensions
- 42x80 mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
