Power ManagementSKU: B0301V10000117

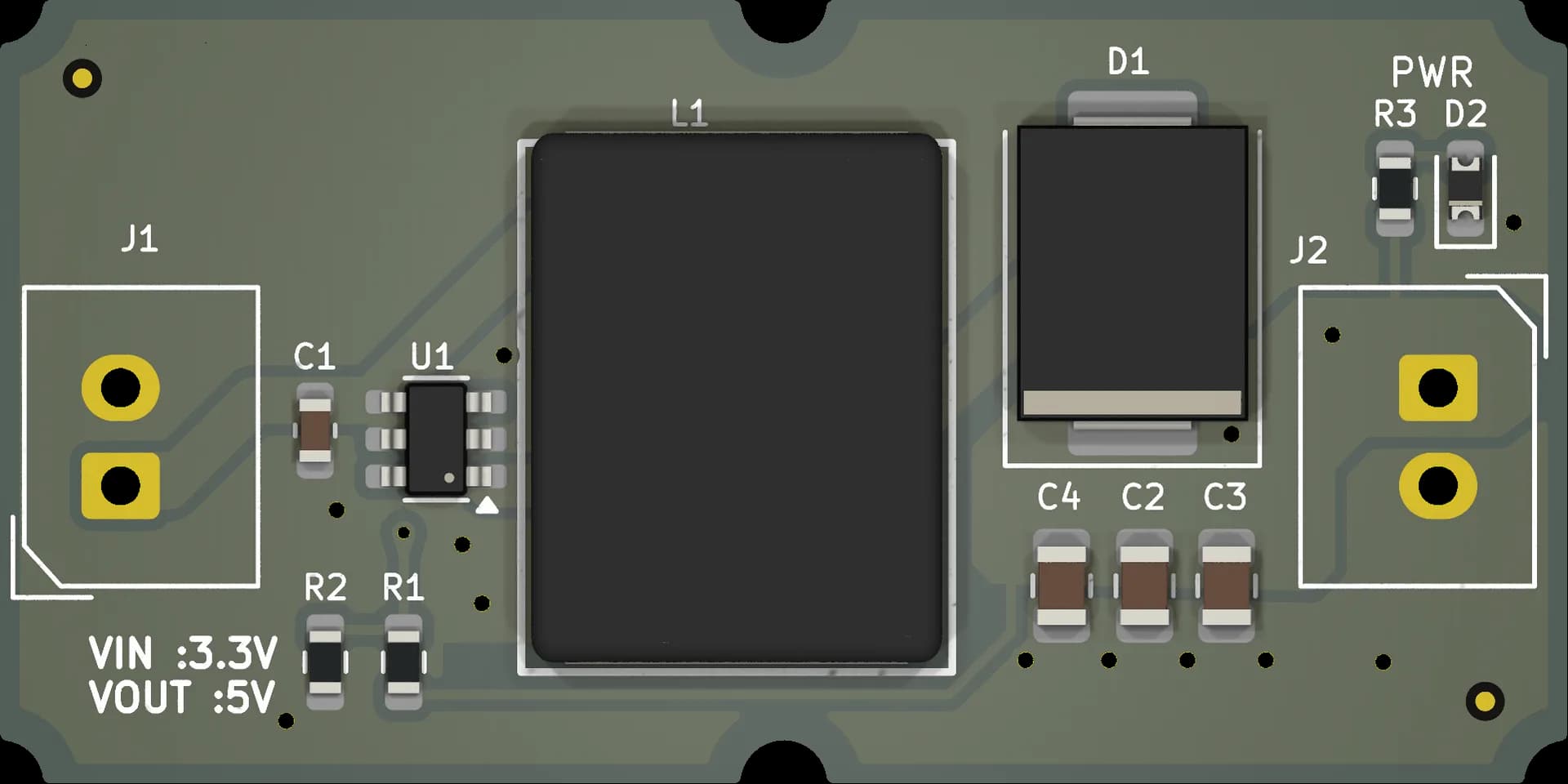

Boardoza MT3608 5V Boost Converter Breakout Board
This board is designed using the MT3608 step-up (boost) DC-DC converter IC to convert low input voltages into a higher and regulated output voltage. Thanks to its compact design and high efficiency, it is suitable for a wide range of embedded systems and power applications.
The board supports a wide input voltage range and is capable of boosting low-voltage sources such as batteries or adapters to a higher output voltage.
A typical use case for this design is boosting a 3.3V input to a regulated 5V output, making it ideal for powering 5V logic circuits from low-voltage sources.
1 / 2
Key Features
- Designed based on the MT3608 boost (step-up) DC-DC converter IC
- Converts low input voltages into a higher, regulated output voltage
- Configured for 3.3V input to 5V regulated output in this design
- 1.2MHz Fixed Switching Frequency
- up to 97% Efficiency
- Automatic Pulse Frequency Modulation Mode at Light Loads
Technical Specifications
- Item
- B-MT3608-BRK
- Input Voltage
- 3.3V
- Output Voltage
- 5V
- Functions
- Step-Up Converter
- Output Current
- 500mA
- Operating Temperature
- -40°C to 85°C
- Board Dimensions
- 20x40mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
