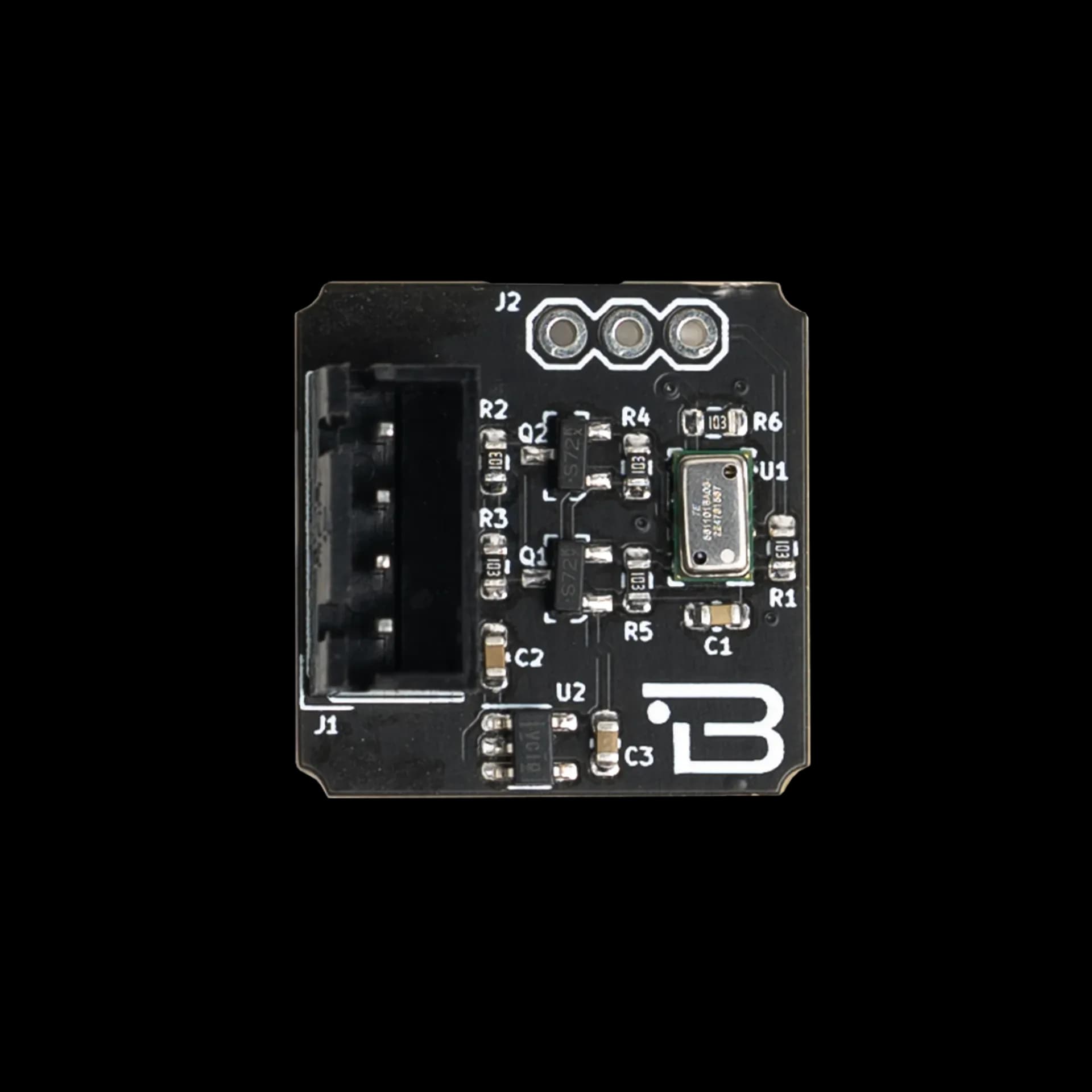

Boardoza MS5611 Barometric Pressure Sensor Breakout Board
The Boardoza MS5611 is a high-precision barometric pressure sensor module designed for altitude measurement, weather monitoring, and industrial pressure sensing. It integrates the MS5611-01BA03 digital pressure sensor, providing accurate pressure readings with ultra-low power consumption. This module operates with 3.3V or 5V, making it compatible with a wide range of microcontrollers. It communicates via I2C by default, but can be switched to SPI mode using the PS pin. The CSB, SDO, and PS pins operate at 3.3V, ensuring easy interfacing with low-power microcontrollers.
Where to buy?
1 / 3
Key Features
- High-Precision Barometric Pressure Sensor: Ideal for altitude measurement, weather monitoring, and UAV applications.
- 24-bit High-Resolution Output: Ultra-precise pressure measurement using an integrated 24-bit ADC.
- Flexible Power Compatibility: Operates with 3.3V or 5V, making it suitable for various MCUs.
- I2C and SPI Support: Default interface is I2C, but can be configured to SPI mode using the PS pin.
- Ultra-Low Power Consumption: Optimized for battery-powered applications.
Technical Specifications
- Model
- MS5611-01BA03
- Input Voltage
- 3.3V - 5.5V
- Type
- 4-pin 2.50mm header
- Interface
- I2C (default), SPI (configurable)
- Functions
- High-Precision Barometric Pressure Measurement
- ADC Resolution
- 24-bit
- Operating Pressure Range
- 450 to 1100 mbar (Full Accuracy)
- Extended Pressure Range
- 10 to 1200 mbar (Linear ADC Range)
- Operating Temperature
- -40°C ~ +85°C
- Board Dimensions
- 20 mm x 20 mm
Board Pinout
( J1 ) I2C Communication Pins
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | VCC | Power Supply (3.3V - 5.5V) |
| 2 | SCL | I2C Serial Clock Pin |
| 3 | SDA | I2C Serial Data Pin |
| 4 | GND | Ground |
( J2 ) SPI Mode & Configuration Pins
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | CSB | Chip select (active low), internally pulled down to ground with a pull-down resistor. |
| 2 | SDO | Serial data output. |
| 3 | PS | Protocol selection:PS High (3.3V) = I2C (Default address: 0x77)PS Low (GND) = SPI Mode (Internally pulled up to 3.3V with a pull-up resistor). |
Datasheet
Download (PDF)Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
