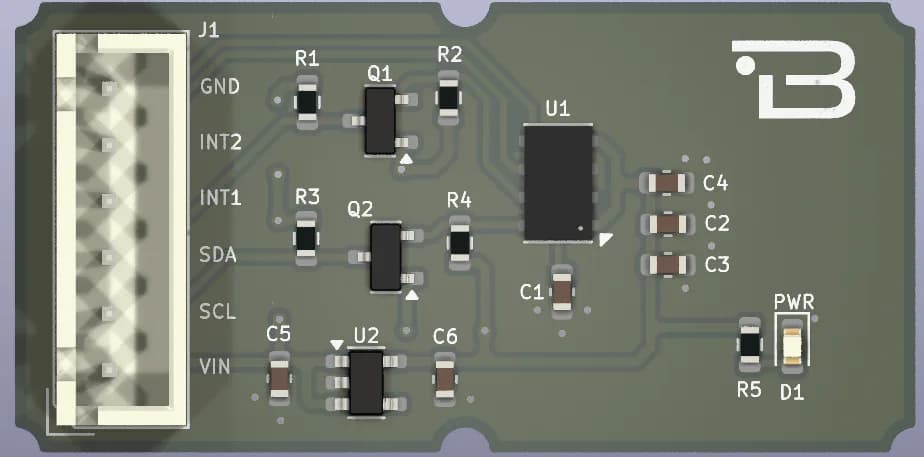

Boardoza MPL3115A2 Barometric Pressure and Temperature Sensor Breakout Board
The MPL3115A2 digital pressure and temperature sensor with a high-resolution 24-bit ADC, ideal for barometric and altimeter applications. It outputs accurate data over I²C and supports INT1/INT2 interrupts for event-based sensing.
The board accepts a 3.3 V to 5 V input at VIN. Its onboard TLV73333PDBVR LDO supplies the sensor from a nominal 3.3 V rail, while I²C level shifters interface to the VIN-side logic domain. The LDO output follows its dropout behavior at the low end of the input range. With low power consumption (\~40 µA), it’s perfect for drones, weather monitoring, and portable sensor applications.
1 / 2
Key Features
- MPL3115A2 Barometric Pressure & Temperature Sensor
- Altimeter or barometer mode (Selectable)
- High-resolution 24-bit ADC digital output
- Bidirectional level shifters for 3.3V and 5V I²C systems
- The standard 7-bit I2C client address is 60h or 110 0000. 8-bit read is C1h, 8-bit write is C0h.
Technical Specifications
- Item
- MPL3115A2
- Functions
- Barometric Pressure & Temperature Sensor
- Board Input Voltage (VIN)
- 3.3 V to 5 V
- Sensor Supply
- Nominal 3.3 V from onboard TLV73333PDBVR LDO; dropout applies at low VIN
- Pressure Range
- 20kPa to 110kPa
- Operating Temperature
- −40 °C to +85 °C
- Board Dimensions
- 20x40mm
