Boardoza MDBT42TV AT Bluetooth 5 1 Module Breakout Board

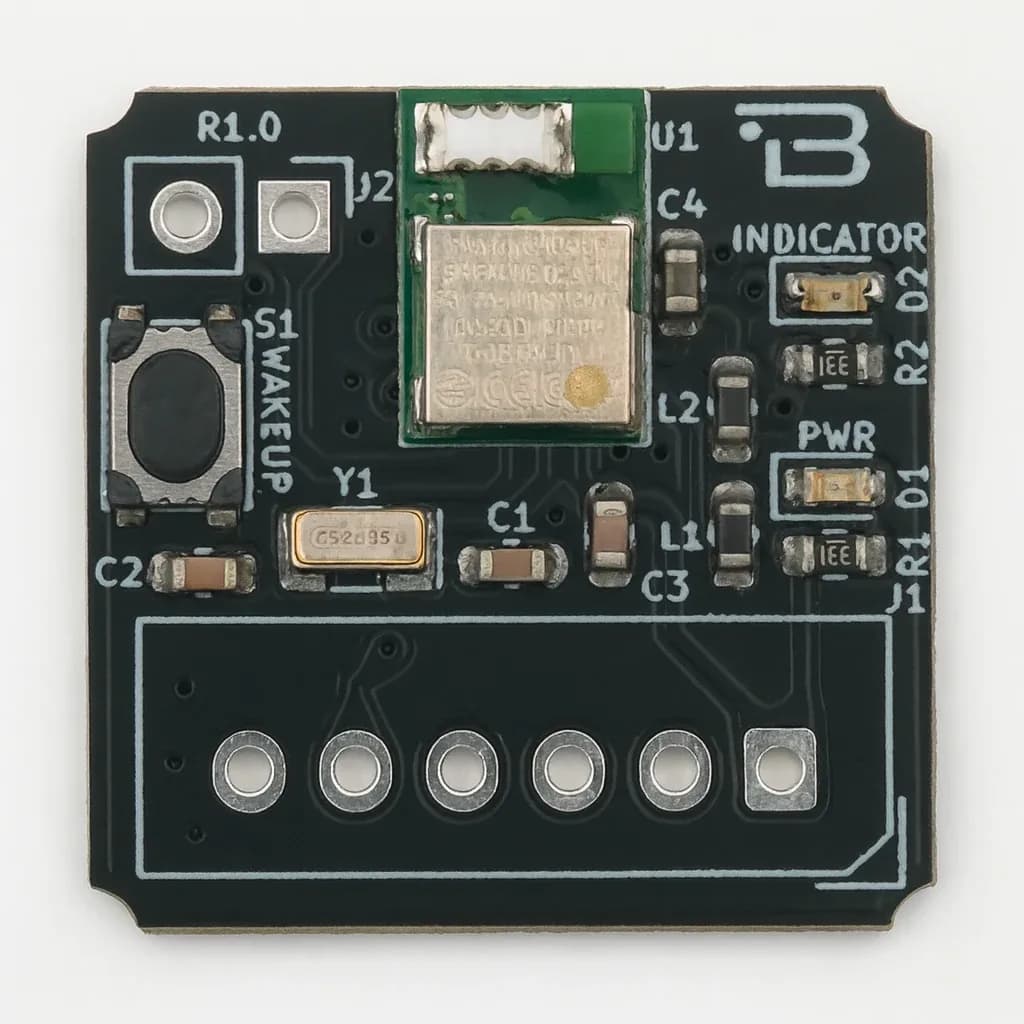

The Boardoza MDBT42TV-AT Bluetooth 5.1 Module Breakout Board is a compact and energy-efficient wireless communication solution designed for embedded systems, IoT applications, and portable devices. Powered by the Raytac MDBT42TV-AT module, this board delivers reliable Bluetooth 5.1 connectivity with minimal power consumption, making it ideal for low-power wireless data transfer. This module features a UART interface in peripheral/slave mode, allowing simple integration into existing serial-based systems. Its integrated chip antenna, compact form factor, and high performance make it ideal for projects that demand seamless Bluetooth communication with minimal hardware complexity.
Where to buy?
Key Features
- Bluetooth 5.1 Connectivity: High-speed, low-power wireless communication for modern IoT devices.
- Integrated Chip Antenna: Optimized RF design ensures stable and compact signal performance.
- High Data Throughput: Supports up to 2 Mbps for fast and efficient data exchange.
- Extended Range: Achieves up to +4 dBm transmit power and –96 dBm sensitivity.
- Low Power Operation: Ultra-low TX and RX currents maximize battery life.
- UART Interface: Enables simple and reliable data communication in embedded systems.
- Ample Memory Resources: 192 kB Flash and 24 kB RAM support BLE stack and custom firmware.
- Optimized for IoT: Suitable for smart sensors, beacons, portable devices, and wireless control systems.
Technical Specifications
- Model
- Raytac MDBT42TV-AT
- Manufacturer
- Raytac Corporation
- Bluetooth Version
- 5.1 (Low Energy)
- Frequency Range
- 2.36 GHz – 2.5 GHz
- Data Rate
- Up to 2 Mbps
- TX Power
- +4 dBm
- RX Sensitivity
- –96 dBm
- Interface
- UART (Peripheral/Slave Mode)
- Memory
- 192 kB Flash / 24 kB RAM
- Input Voltage Range
- Input Voltage Range: 1.7V – 3.6V Typical Operating Voltage: 3.3V Power Consumption (RX): 3.5 mA – 11.2 mA Power Consumption (TX): 2.1 mA – 15.4 mA
- Functions
- Bluetooth UART Communication Module
- Antenna
- Integrated Chip Antenna
- Operating Temperature
- –40°C ~ +85°C
- Board Dimensions
- 20mm x 20mm
Board Pinout
( J1 ) UART & Power Connector
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | 3V3 | Power supply input (1.7V – 3.6V) |
| 2 | RX | Module UART receiver input |
| 3 | TX | Module UART transmitter output |
| 4 | RESET | Configurable as system RESET pin |
| 5 | PD | Active-high with internal pull-up to disable hardware UART (default: disabled) |
| 6 | GND | Ground |
( J2 ) Function Pins
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | FLASH DEFAULT | Active-low with internal pull-up. Holding low for 0.48s–1s resets the module to factory defaults. |
| 2 | WAKEUP | Logic input to wake the system from deep sleep mode. |
Datasheet
Download (PDF)Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
