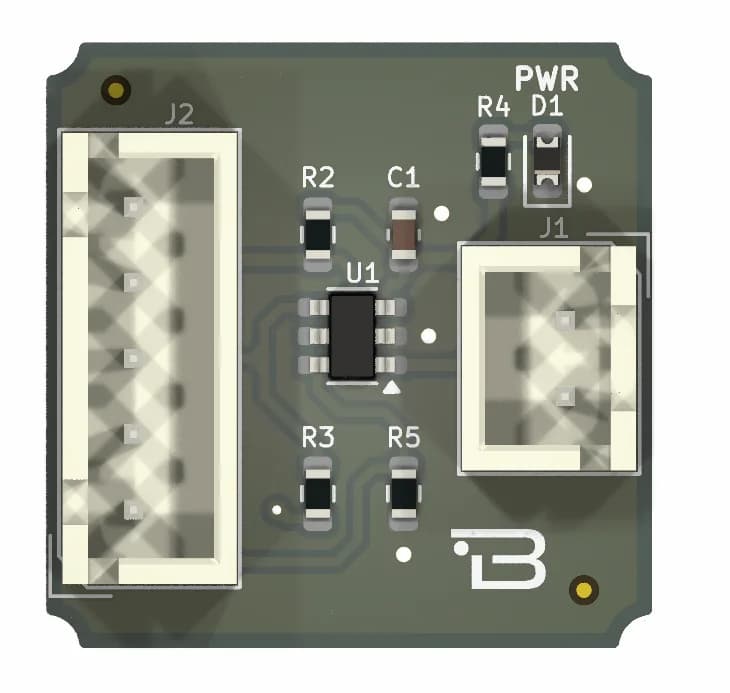

Boardoza MCP4725 12-Bit I²C DAC Breakout Board
The MCP4725 is a low-power, high accuracy, single channel, 12-bit buffered voltage output Digital-toAnalog Convertor (DAC) with non-volatile memory (EEPROM). Its on-board precision output amplifier allows it to achieve rail-to-rail analog output swing.
The DAC input and configuration data can be programmed to the non-volatile memory (EEPROM) by the user using I2C interface command. The non-volatile memory feature enables the DAC device to hold the DAC input code during power-off time, and the DAC output is available immediately after power-up.
I2C address bit selection pin (A0 bit) is connected to GND by default.
1 / 2
Key Features
- 12-Bit Resolution
- External A0 Address Pin
- Single-Supply Operation: 2.7V to 5.5V
- I2C Interface Default Address is:
- Write Adress (R/W = 0): 0b11000000 = 0xC0
- Read Adress (R/W = 1): 0b11000001 = 0xC1
- Eight Available Addresses
- Standard (100 kbps), Fast (400 kbps), and High-Speed (3.4 Mbps) Modes
- Normal or Power-Down Mode
Technical Specifications
- Item
- B-MCP4725-BRK
- Input Voltage
- 2.7V to 5.5V
- Functions
- Digital to Analog Converter (DAC)
- Output Current
- 210 µA
- Output Current max
- 400 µA
- Operating Temperature
- -40/+125 °C
- Board Dimensions
- 20x20mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
