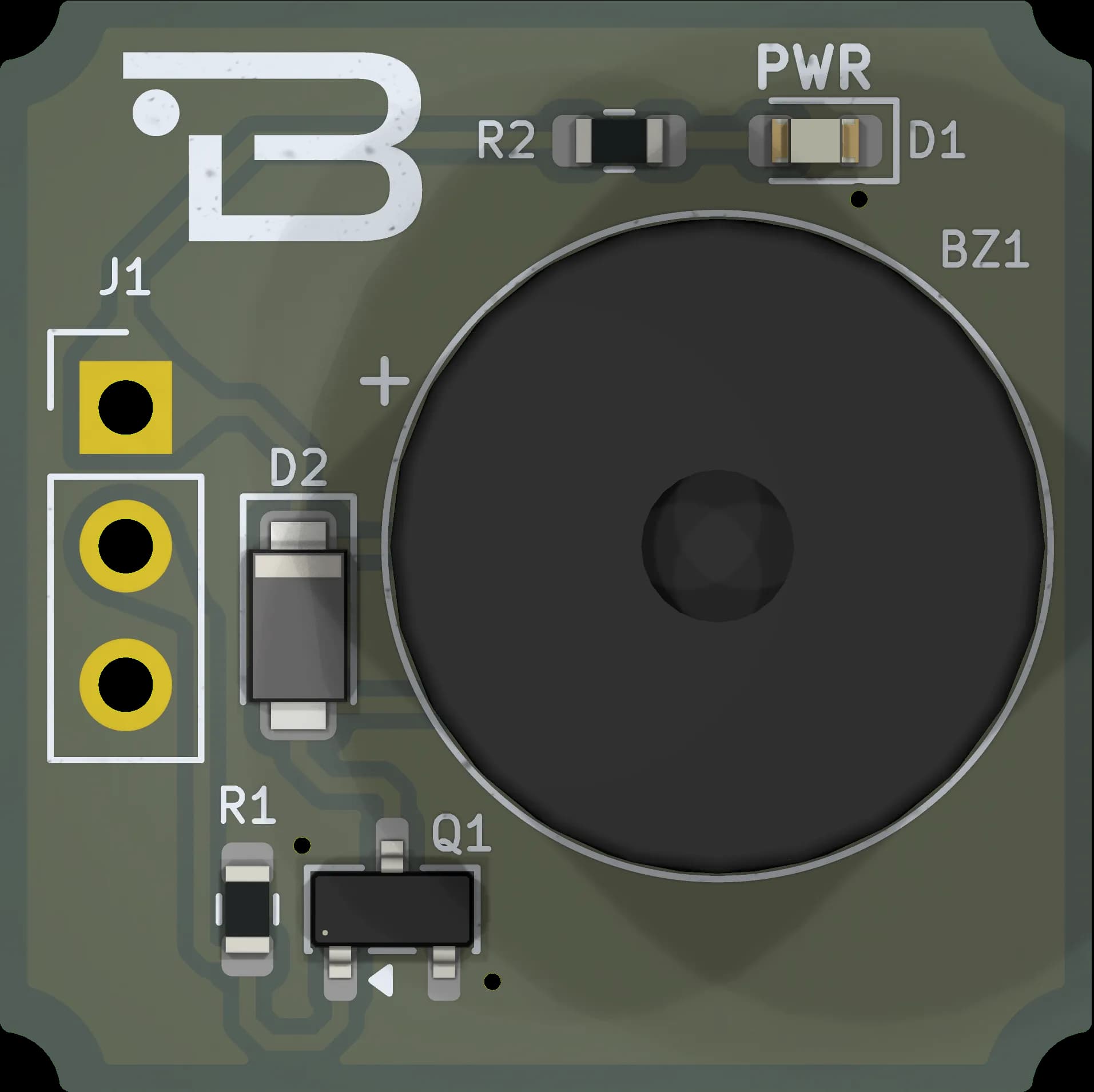

Boardoza MB1275B06NP Active Magnetic Buzzer Breakout Board
The Boardoza Active Buzzer Board is a compact and easy-to-use sound output module based on the MB1275B06NP active magnetic buzzer. It produces an approximately 3.1kHz audible tone and can be easily controlled using a digital signal from a microcontroller.
With its simple connections, the board can be easily integrated into different projects. It is suitable for alarms, warning signals, notifications, status indicators, and other applications where an audible alert is required.
1 / 2
Key Features
- Minimum Sound Pressure Level: Provides a minimum sound pressure level of 85dB at 10cm at the rated operating condition.
- Digital ON/OFF Control: The buzzer can be activated by applying a HIGH logic level to the SIGNAL pin and deactivated by applying a LOW logic level.
- Active Magnetic Buzzer: Generates an audible tone when enabled without requiring an external audio-frequency PWM signal.
- Freewheeling Diode: Helps protect the MOSFET from voltage spikes when the buzzer is switched off.
- 3.3V and 5V Logic Control: Compatible with common 3.3V and 5V microcontroller control signals.
Technical Specifications
- Item
- Active Buzzer
- Operating Voltage
- 3-8 V
- Max Operating Current
- 30 mA
- Resonance Frequency
- 3100Hz ± 300Hz
- Minimum Sound Pressure Level
- 85dB @ 10cm
- Operating Temperature
- -20°C to +70°C
- Board Dimensions
- 20mm x 20mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
