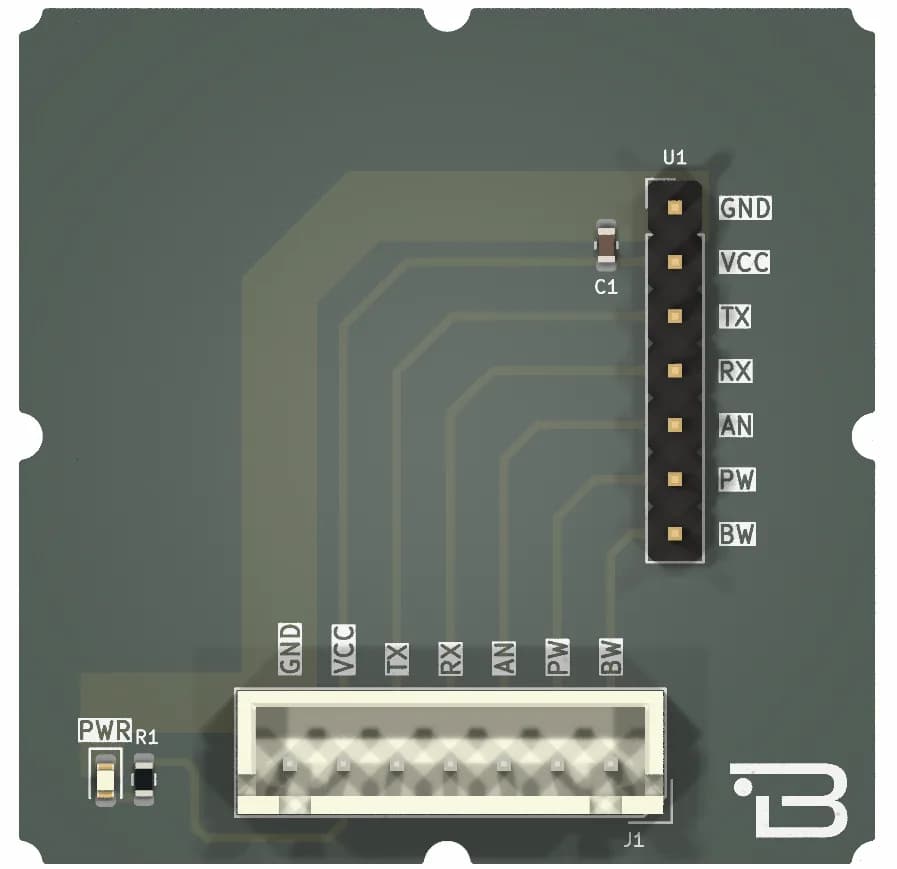

Boardoza MB1020 Ultrasonic Sensor Breakout Board
It is an ultrasonic sensor manufactured by MaxBotix. It is an ultrasonic sensor manufactured by MaxBotix. Reading speed is 20Hz. Its frequency is 42kHz. It offers a wide measurement range from 15 cm to 645 cm. With 1 inch resolution, it can make very precise measurements.
User can be easly arrange all the parameters via RangeTrack*™ GUI Software. (https://maxbotix.com/pages/rangetrack)
1 / 2
Key Features
- Sensor operates at 42KHz
- High output square wave sensor drive (double Vcc)
- Actual operating temperature range from –40°C to +65°C, Recommended operating temperature range from 0°C to +60°C
- Continuously variable gain for control and side lobe suppression
- Object detection to zero range objects
- 2.5V to 5.5V supply with 2mA typical current draw
- Readings can occur up to every 50mS, (20-Hz rate)
- Free run operation can continually measure and output range information
- Triggered operation provides the range reading as desired
- Interfaces are active simultaneously
- Serial, 0 to Vcc, 9600 Baud, 81N
- Analog, (Vcc/512) / inch
- Pulse width, (147uS/inch)
- Learns ringdown pattern when commanded to start ranging
- Designed for protected indoor environments
Technical Specifications
- Item
- MB1020-000
- Voltage Supply
- 2.5V \~5.5V
- Functions
- Ultrasonic sensor
- Communication
- UART (Default 9600 Baud)
- Operating Temperature
- -40°C/+65°C
- Board Dimensions
- 40x40mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
