RF CommunicationSKU: B0201V10000099

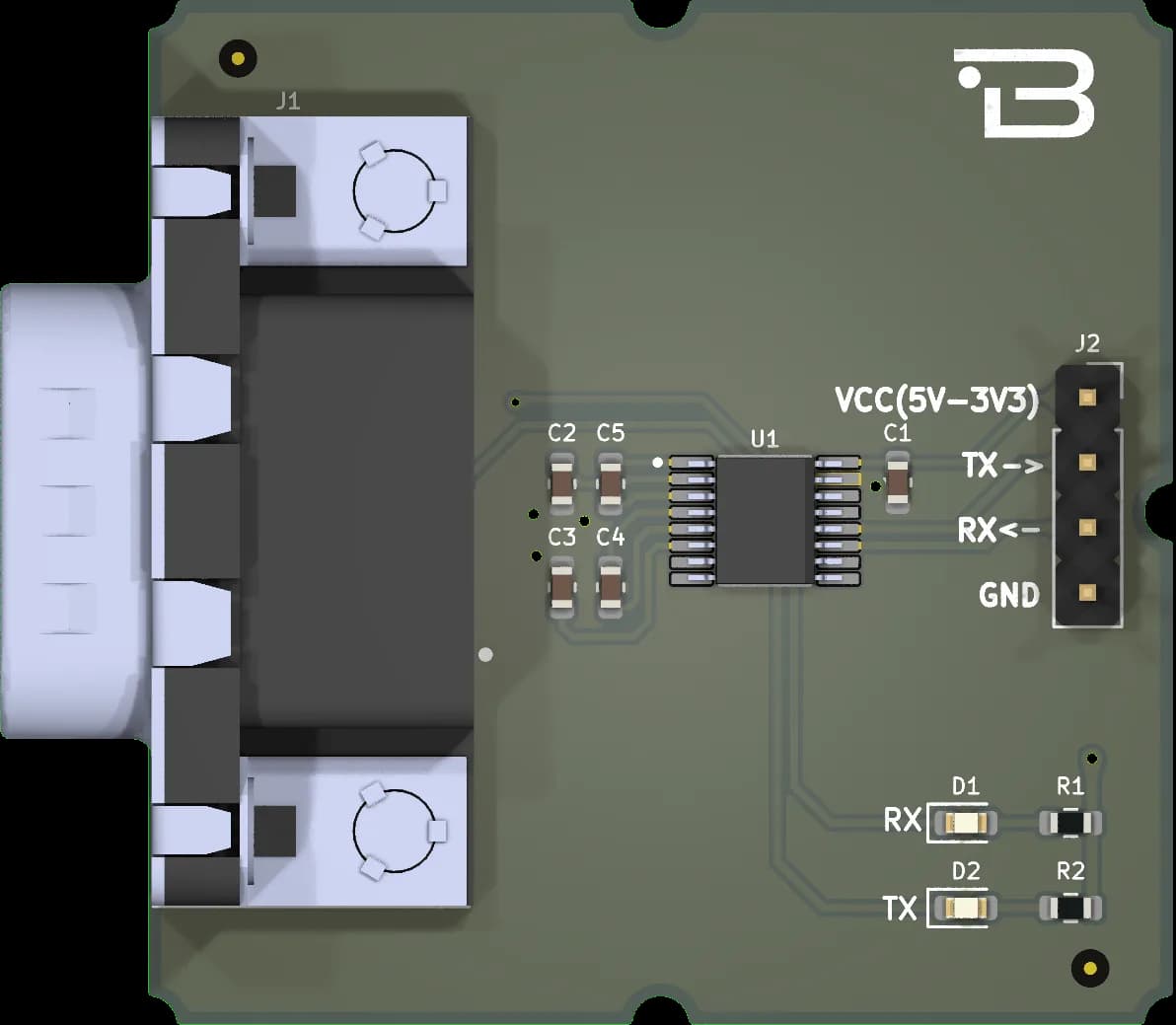

Boardoza MAX3232 RS232 to UART Breakout Board
This board is designed using the MAX3232 IC to provide reliable voltage level conversion between RS232 and TTL/CMOS signals. It operates with both 3.3V and 5V systems, ensuring broad microcontroller compatibility. The UART interface (VCC,TX, RX, GND) is externally accessible, allowing seamless integration with microcontrollers, computers, and industrial communication applications.
1 / 2
Key Features
- Meets or exceeds the requirements of TIA/ EIA-232-F and ITU V.28 standards
- Operates with 3-V to 5.5-V VCC supply
- Operates up to 250 kbit/s
- Low IC supply current: 300 μA Typical
- External capacitors: 4 × 0.1 μF
- Accepts 5-V logic input with 3.3-V supply Applications
- Wired networking
- Data center and enterprise networking
- Battery-powered systems
- PDAs
- Notebooks
- Laptops
- Palmtop PCs
- Hand-held equipment
- Industrial PCs
Technical Specifications
- Item
- B-MAX3232-BRK
- Input Voltage
- 3V3/5V
- Functions
- RS232 to Uart
- Supply Current (IC, Typical)
- 300 μA
- Operating Temperature
- -40/+85 °C
- Board Dimensions
- 40x40mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
