SensorsSKU: B0101V10000012

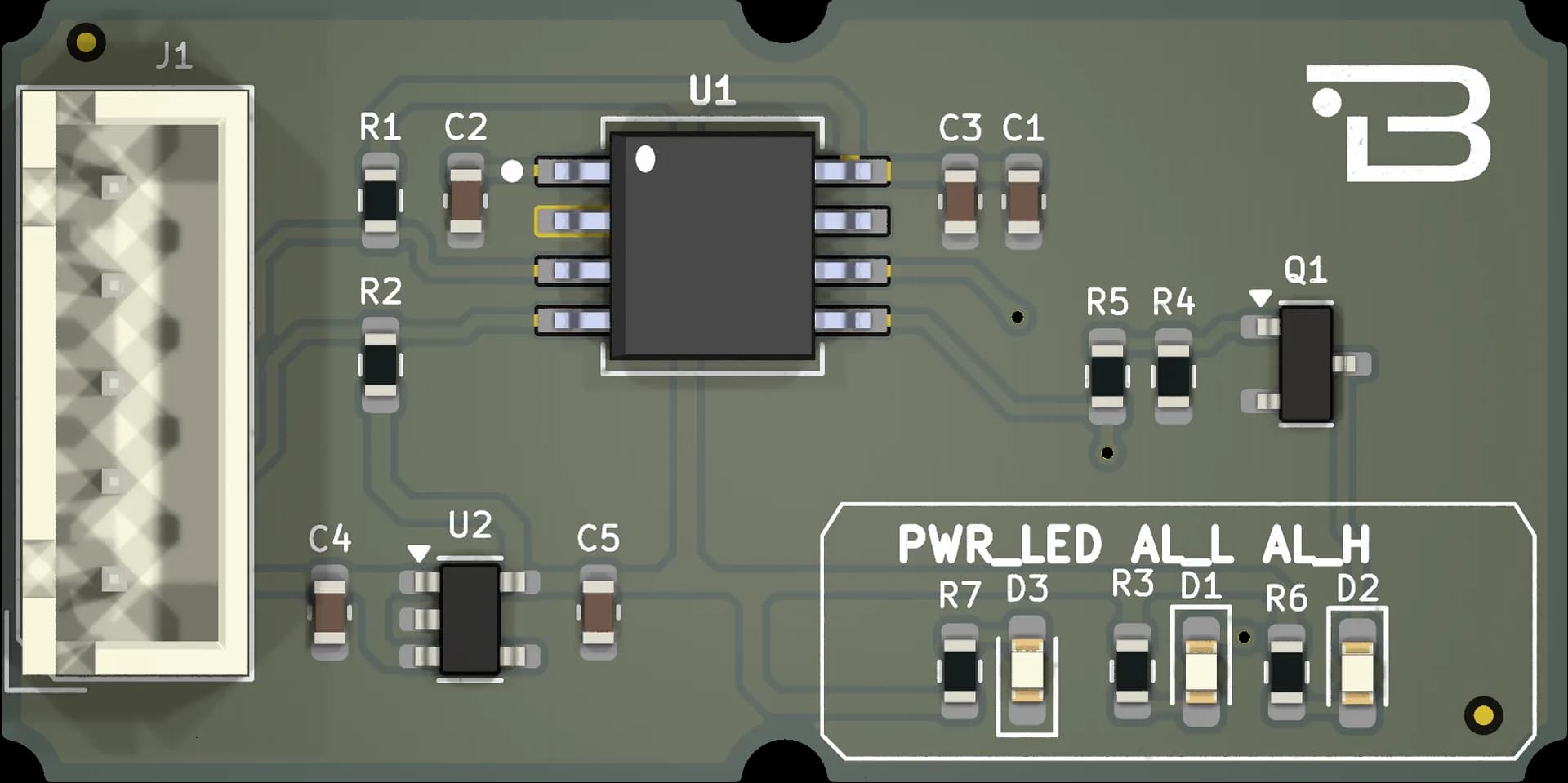

Boardoza HIH8131-021-001 Humidity and Temperature Sensor Breakout Board
This board uses the HIH8131-021-001 for humidity and temperature measurements and transmits data digitally through its I2C interface.
1 / 2
Key Features
- ±2.0 %RH accuracy @ 0-100% measurement range
- ±0.5 °C accuracy (temperature performance)
- Competitive humidity sensors require a 12 hour at 75 %RH rehydration process (which requires special equipment chambers) to correct reflow temperature offset.
- Resolution : 14 bit ADC resolution
- Humidity response time: 6 s typical, 8 s maximum (airflow minimum 20 l/min)
- Long term stability : 50 %RH for 5 years typ. ±0.05 %RH
- Long term stability : 25 °C for 5 years typ. ±0.05 °C/yr
Technical Specifications
- Item
- HIH8131-021-001
- Voltage Supply
- 3V3-5V
- Functions
- Humidity and temperature sensor board.
- Communication
- I2C
- Operating Temperature
- -40/+125 °C
- Board Dimensions
- 20x20mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
