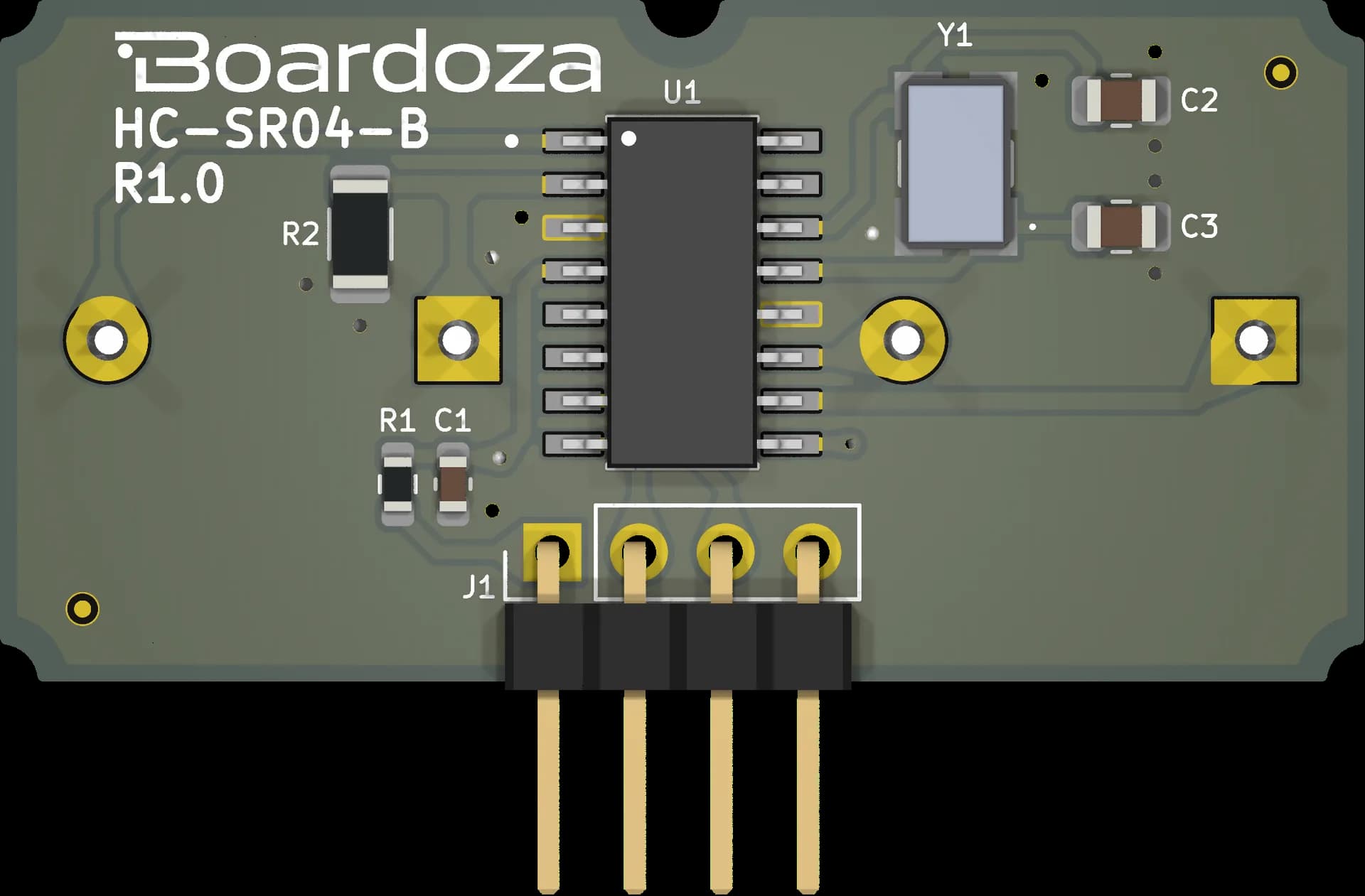

Boardoza HC-SR04-B Ultrasonic Distance Sensor Breakout Board
The CS100A ultrasonic ranging IC-based ultrasonic distance sensor board is a compact and high-precision solution designed for non-contact distance measurement. The board operates by transmitting ultrasonic pulses and analyzing the reflected echo to determine the distance to an object.
The system utilizes an 8 MHz crystal oscillator to provide stable timing and operating frequency. It employs two ultrasonic transducers to transmit and receive acoustic signals. Through the TRIG and ECHO interface pins, the module can be easily integrated with microcontrollers. This architecture enables reliable performance in applications such as robotics, industrial automation, distance sensing, and obstacle detection.
The board is designed with a minimal component count, ensuring high stability and low power consumption. Its simple interface makes it suitable for both embedded system developers and electronics designers who require an efficient ultrasonic measurement module.
Key Features
- Integrated CS100A ultrasonic ranging controller
- TRIG / ECHO interface for easy microcontroller integration
- 8 MHz crystal oscillator for stable timing
- High-sensitivity ultrasonic transmitter and receiver transducers
- Non-contact distance measurement technology
- Low power consumption
- Compact PCB design
- Suitable for robotics and automation applications
- Ideal for obstacle detection and distance measurement
- Easy integration and rapid prototyping support
Technical Specifications
- Item
- B-HC-SR04-B-BRK
- Supply Voltage
- 3.3 Vdc up to 5 Vdc
- Functions
- Ultrasonic Distance Sensor
- Operating Current
- 5.3 mA
- Measuring range
- up to 5,6 meters
- Ultrasonic emission frequency
- 40KHZ
- Operating Temperature
- -40/+85°C
- Board Dimensions
- 40x20mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
