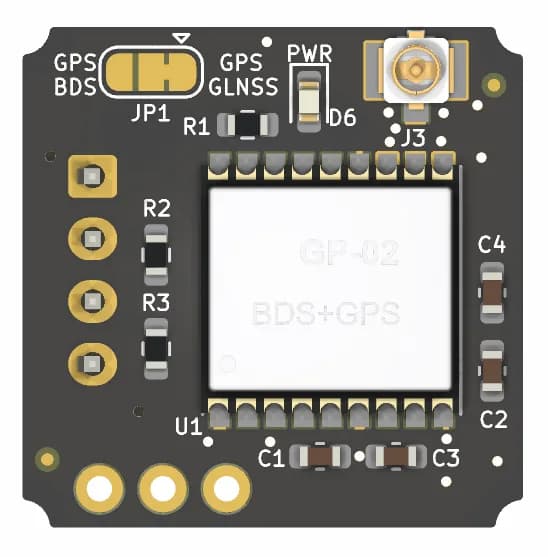

Boardoza GP-02 Light BDS/GNSS Receiver Breakout Board
The B-GP-02 LIGHT-BRK is a compact breakout board built around the high-performance GP-02 BDS/GNSS multi-mode satellite navigation receiver module. Designed as a smaller and more space-efficient version of the standard GP-02 board, it is particularly suitable for compact tracking devices, portable navigation systems and embedded IoT applications.
The GP-02 integrates an RF front end, digital baseband processor, 32-bit RISC CPU, power-management circuitry, and active-antenna detection and protection functions. It supports multiple global satellite navigation systems, including China’s BeiDou (BDS), the United States’ GPS, and Russia’s GLONASS, enabling reliable multi-constellation positioning. Despite its reduced dimensions, the board retains the essential power, communication and external-antenna connections required for easy system integration.
Key Features
- UART GP-02 Module
- It can work with 3.3V.
- It easily communicates with an MCU with TTL UART outputs.
- Small size factor.
- GPS, BDS, GLONASS selection
Technical Specifications
- Item
- Boardoza GP-02 Light Breakout Board
- Voltage Supply
- 3.3V
- Power Input Type
- Molex 4 pin 2.50mm header
- Functions
- BDS/GNSS multi-mode satellite navigation receiver SOC module.
- Operating Temperature
- -40/+85 °C
- Board Dimensions
- 20x20mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
