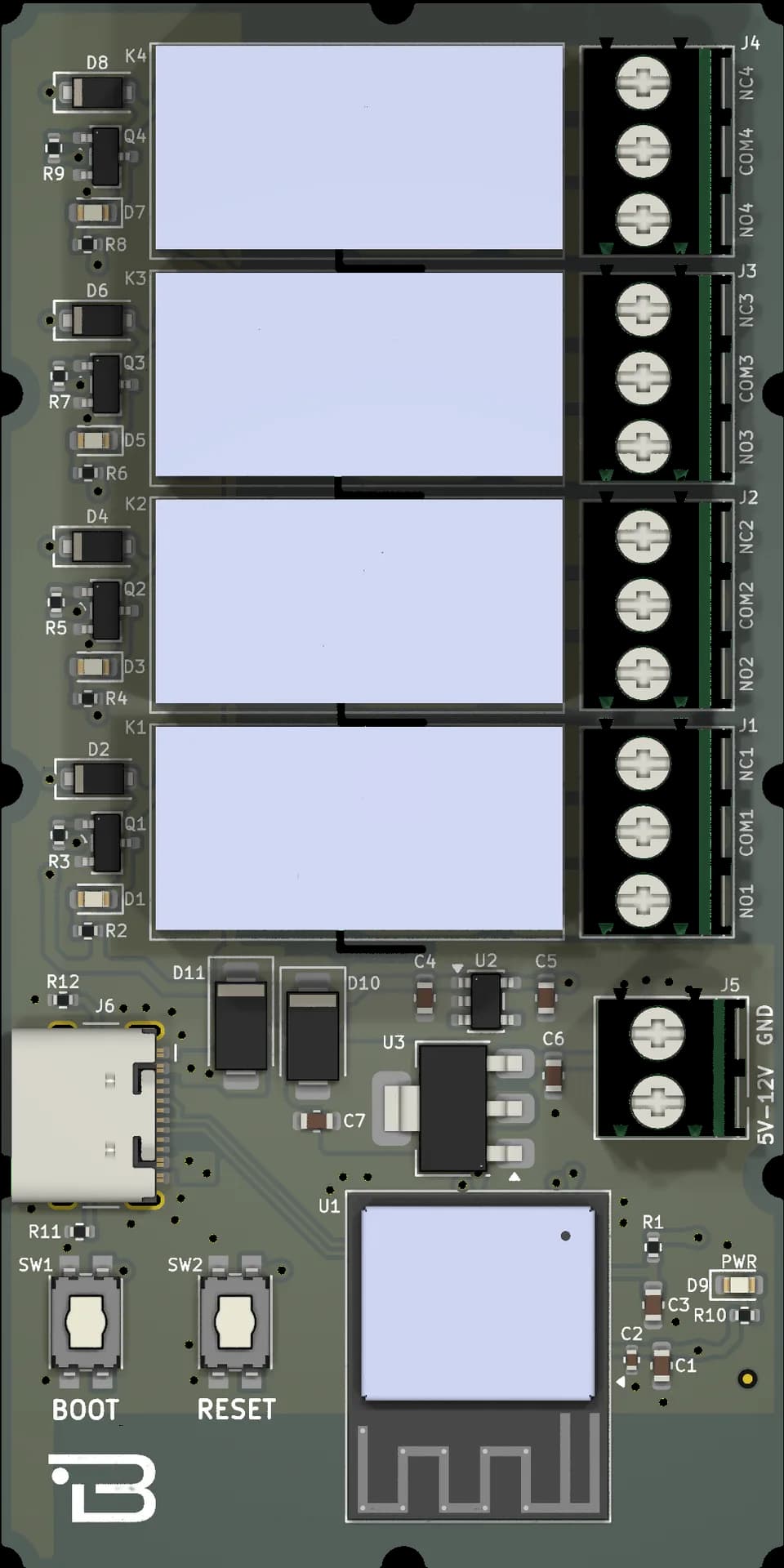

Boardoza ESP32-H2 4-Channel Wireless Relay Evaluation Board
Boardoza ESP32-H2 Relay Board is a compact and flexible control solution built around an ESP32-H2 wireless module. It features 4 high-current relays for switching external loads while enabling modern wireless connectivity. The board can be powered from 5–12V or via USB Type-C, providing flexible integration into different systems. With support for Matter, HomeKit, Zigbee, BLE, and Thread protocols, it is well suited for smart home automation, remote control systems, and IoT applications.
1 / 2
Key Features
- ESP32-H2 based wireless controller
- 4-channel relay output with 10A switching capability
- Supports 5–12V input and USB Type-C power
- Supports Matter, HomeKit, Zigbee, BLE, and Thread protocols
- Suitable for smart home, IoT, and automation systems
- Reliable control of AC and DC loads
- Compact design for easy integration
Technical Specifications
- Item
- ESP32H2 4CH Relay Board
- Input Voltage
- 5V - 12V & Type-C
- Functions
- 4-channel relay switching and wireless control
- Relay Rating
- 10A @ 5V (per channel)
- Wireless Connectivity
- Matter, HomeKit, Zigbee, BLE, Thread
- Operating Temperature
- -40 °C / +85 °C
- Board Dimensions
- 40mm x 80mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
