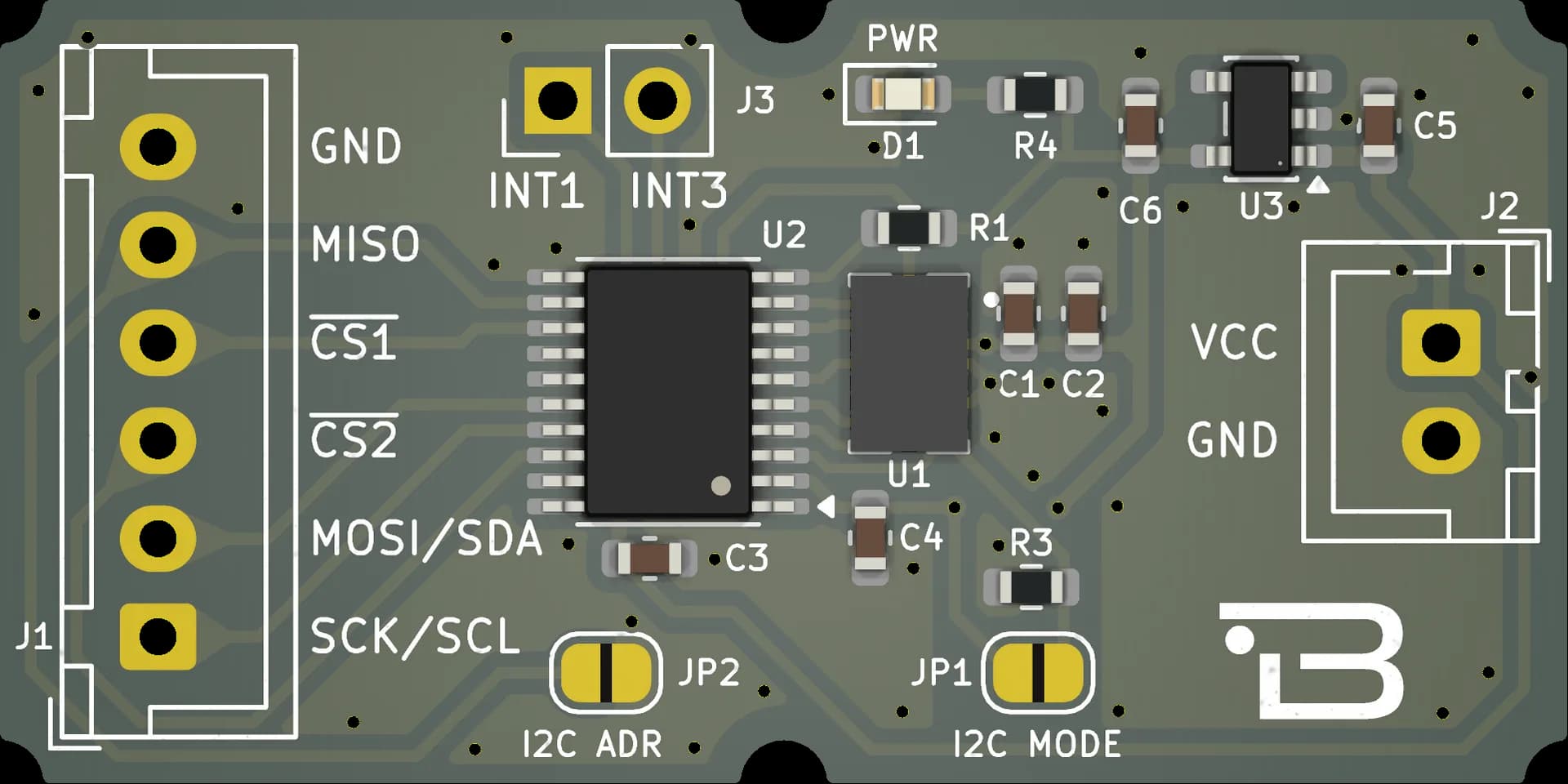

Boardoza BMI088 6-Axis IMU Breakout Board
Boardoza BMI088 6-Axis IMU Breakout Board is a high-performance motion-tracking module designed to detect precise movements and rotations across 6 degrees of freedom (6DoF) in harsh vibration environments. It integrates a versatile 16-bit digital accelerometer, an advanced 16-bit digital gyroscope, and an 11-bit internal temperature sensor featuring a wide measurement range of -104°C to +150°C alongside an onboard bidirectional voltage-level shifter. By featuring a fully level-translated data path and local 3.3V regulation, this board allows users to interface with both 3.3V and 5V host microcontrollers over SPI or I²C, making it an ideal, reliable choice for drone flight controllers, robotics, complex camera stabilization systems, and industrial projects.
Key Features
- 6-Axis 6-DoF Sensing: Integrates an ultra-low-drift 16-bit gyroscope and a low-noise 16-bit accelerometer on a single platform.
- Universal Logic Compatibility: Employs a bidirectional level shifter to safely interface with 3.3V and 5V host logic families.
- Flexible Communication: Breaks out necessary lines to support robust SPI or I²C host serial communication protocols.
Technical Specifications
- Item
- B-BMI088-BRK
- Input Voltage
- 3.3V to 5.5V DC
- Sensor Functions
- 6-Axis Inertial Measurement (Acceleration & Angular Velocity) and Temperature Measurement
- Measurement Range
- Up to ±24g acceleration / Up to ±2000°/s angular rate
- Sensor Bit Resolutions
- 16-bit Digital Accelerometer & 16-bit Digital Gyroscope & 11-bit Digital Temperature Sensor
- Communication Interfaces
- SPI (Default) / I²C (Short JP1 to use I²C )
- Accelerometer default I²C address
- 0x19 / 0x18 (when JP2 shorted)
- Gyroscope default I²C address
- 0x69 / 0x68 (when JP2 shorted)
- Temperature Sensor Measurement Range
- -104°C to +150°C
- Operating Temperature
- -40°C to +85°C
- Board Dimensions
- 20mm x 40mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
