Boardoza AQY284EHAZ 4-Channel PhotoMOS Solid-State Relay Breakout Board

Name: Boardoza AQY284EHAZ 4-Channel PhotoMOS Solid-State Relay Breakout Board
Brand: Boardoza
SKU: B0301V10000268

This board is a 4-channel Solid State Relay (SSR) module built with the AQY284EHAZ PhotoMOS® relay. It supports 3.3V to 24V control input and is capable of switching both AC and DC loads. With fast, silent, and reliable operation, it is well-suited for automation, industrial control, and low-noise electronic systems.

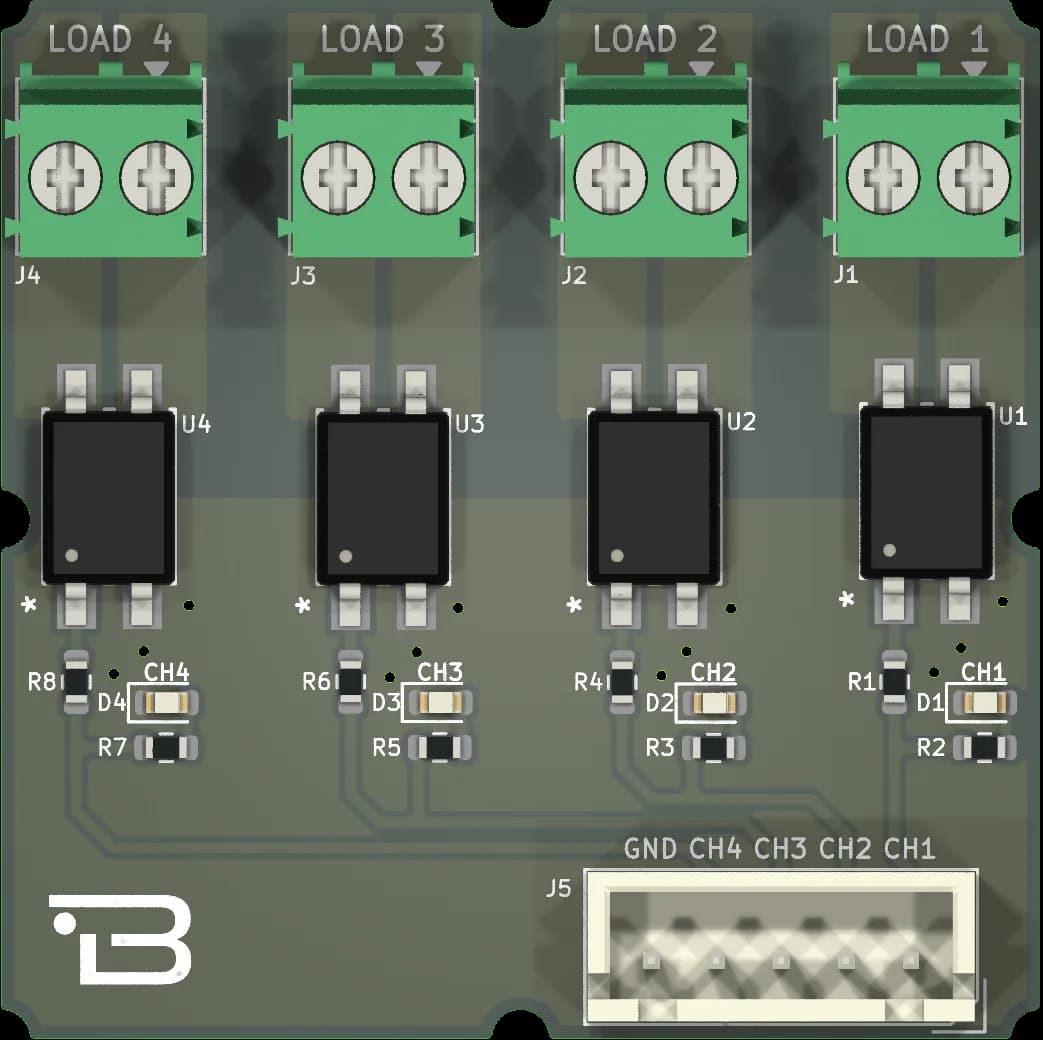

Boardoza AQY284EHAZ 4-Channel PhotoMOS Solid-State Relay Breakout Board – 1

1 / 2

Key Features

4× SSR channels based on AQY284EHAZ PhotoMOS® relay.
Supports control input from 3V3 to 24V.
Capable of switching both AC and DC loads.
Silent operation with no mechanical wear.
Galvanic isolation between control and load side.
Compact PCB design for easy integration.
AC&DC Output Values: up to 400 V / up to 100 mA

Technical Specifications

Item: AQY284EHAZ
Input Voltage: 3V3-24V
Functions: Solid State Relay
Output Current: 100mA per channel
Operating Temperature: -40/+85°C
Board Dimensions: 40x40mm

Support

For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.

[email protected]
