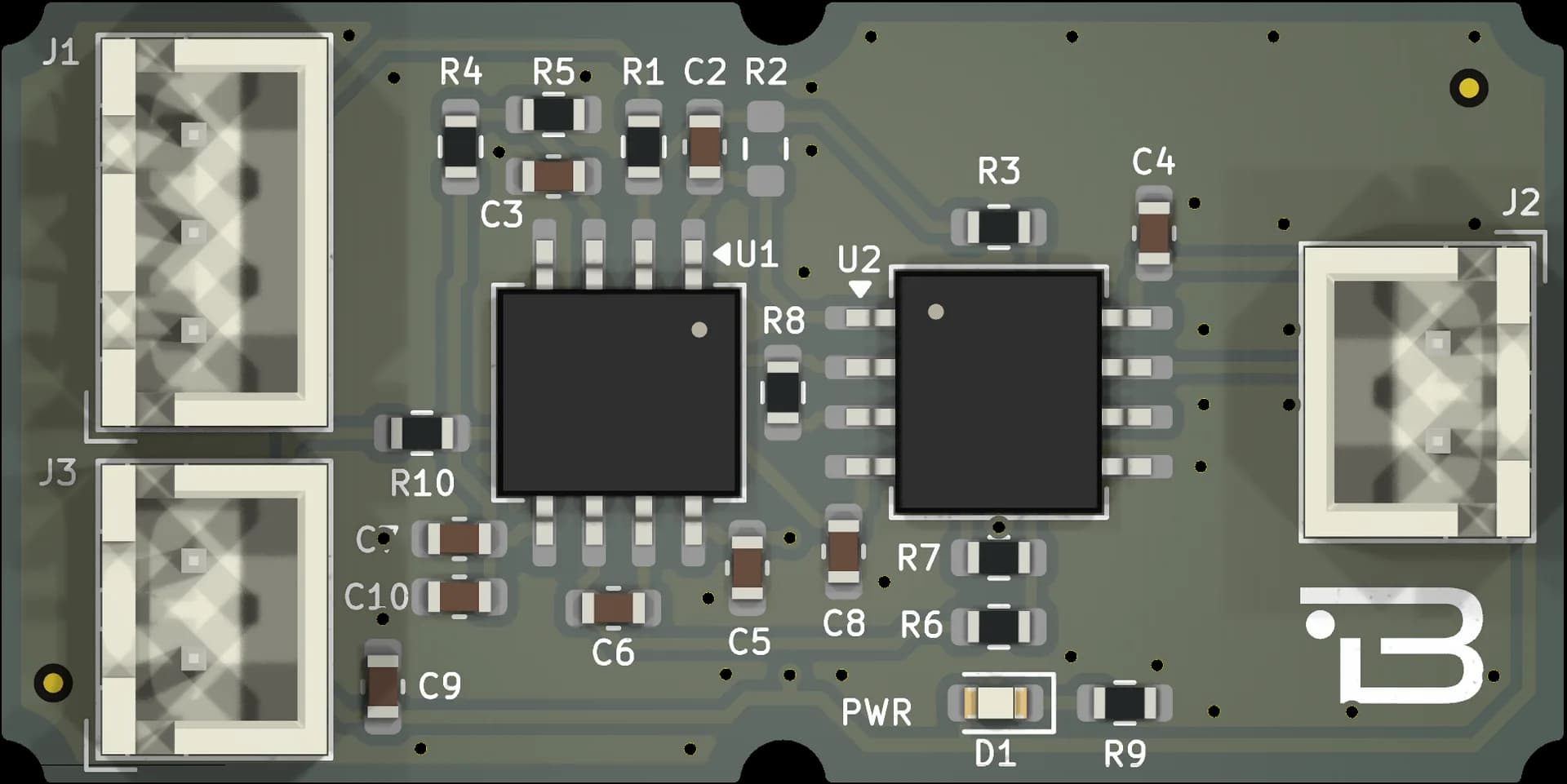

Boardoza Analog-to-PWM Converter Breakout Board
Boardoza Analog-to-PWM Converter is a high-precision signal converter module designed using discrete operational amplifiers and comparators. It converts an analog input voltage (typically from a throttle or sensor) into a PWM signal with proportional Duty Cycle. By utilizing a purely hardware-based signal path, this board achieves near-zero latency and high immunity to software-related failures, making it ideal for robust motor control and power electronics.
1 / 2
Key Features
- Discrete Analog Architecture: Built entirely with discrete high-speed op-amps and comparators for maximum reliability and speed.
- Push-Pull CMOS Logic Output
Technical Specifications
- Supply Voltage (VCC)
- 2.7V to 5.5V
- Analog Voltage (INPUT)
- 0.1V to 4.9V
- Output Short Circuit Current
- 74 mA
- Operating Temperature
- -40°C to +125°C
- Board Dimensions
- 20x40mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
