Boardoza AMC1350 Isolated Analog Amplifier Breakout Board

Name: Boardoza AMC1350 Isolated Analog Amplifier Breakout Board
Brand: Boardoza
SKU: B1101V10000112

The AMC1350 is a precision, isolated amplifier with an output separated from the input circuitry by an isolation barrier that is highly resistant to magnetic interference. This barrier is certified to provide reinforced galvanic isolation of up to 5 kVRMS according to VDE V 0884-11 and UL1577, and supports a working voltage of up to 1.5 kVRMS. The isolation barrier separates parts of the system that operate on different common-mode voltage levels and protects the low-voltage side from potentially harmful voltages and damage.

The high-impedance input of the AMC1350 is optimized for connection to high-impedance resistive dividers or other voltage signal sources with high output resistance. The excellent accuracy and low temperature drift supports accurate AC and DC voltage sensing in DC/DC converters, frequency inverters, AC motor, and servo-drive applications over the extended industrial temperature range from –40°C to +125°C.Linear input voltage range: ±5 V and output range : ±2 V

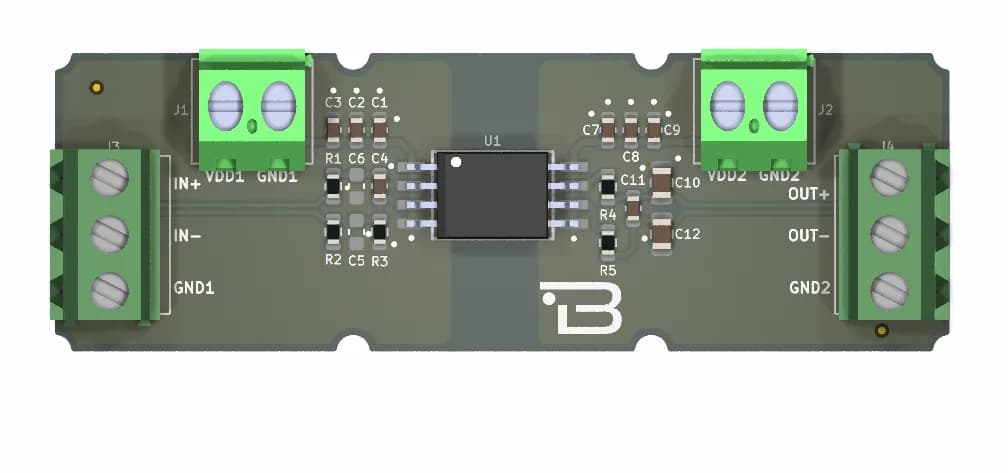

Boardoza AMC1350 Isolated Analog Amplifier Breakout Board – 1

1 / 2

Key Features

Linear input voltage range: ±5 V
Linear output voltage range: ±2 V
High input impedance: 1.25 MΩ (typ)
Fixed gain: 0.4 V/V
Low DC errors: – Offset error ±1.5 mV (max) – Offset drift: ±15 μV/°C (max) – Gain error: ±0.2% (max) – Gain drift: ±35 ppm/°C (max) – Nonlinearity ±0.02% (max)
High-side and low-side supply ranges: VDD1 = 3.0 V to 5.5 V relative to GND1; VDD2 = 3.0 V to 5.5 V relative to GND2
High CMTI: 100 kV/μs (min)
Fail-safe output
Safety-related certifications: – 7070-VPK reinforced isolation per DIN VDE V 0884-11: 2017-01 – 5000-VRMS isolation for 1 minute per UL1577
Fully specified over the extended industrial temperature range: –40°C to +125°C
Isolated AC voltage sensing in: – Motor drives – Frequency inverters – Protection relays – Power supplies

Technical Specifications

Item: B-AMC1350-BRK
Supply Voltages: VDD1 = 3.0 V to 5.5 V relative to GND1; VDD2 = 3.0 V to 5.5 V relative to GND2
Functions: ANALOG ISOLATOR
Output Current: 14mA
Operating Temperature: -40/+125 °C
Board Dimensions: 20x60mm

Support

For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.

[email protected]
