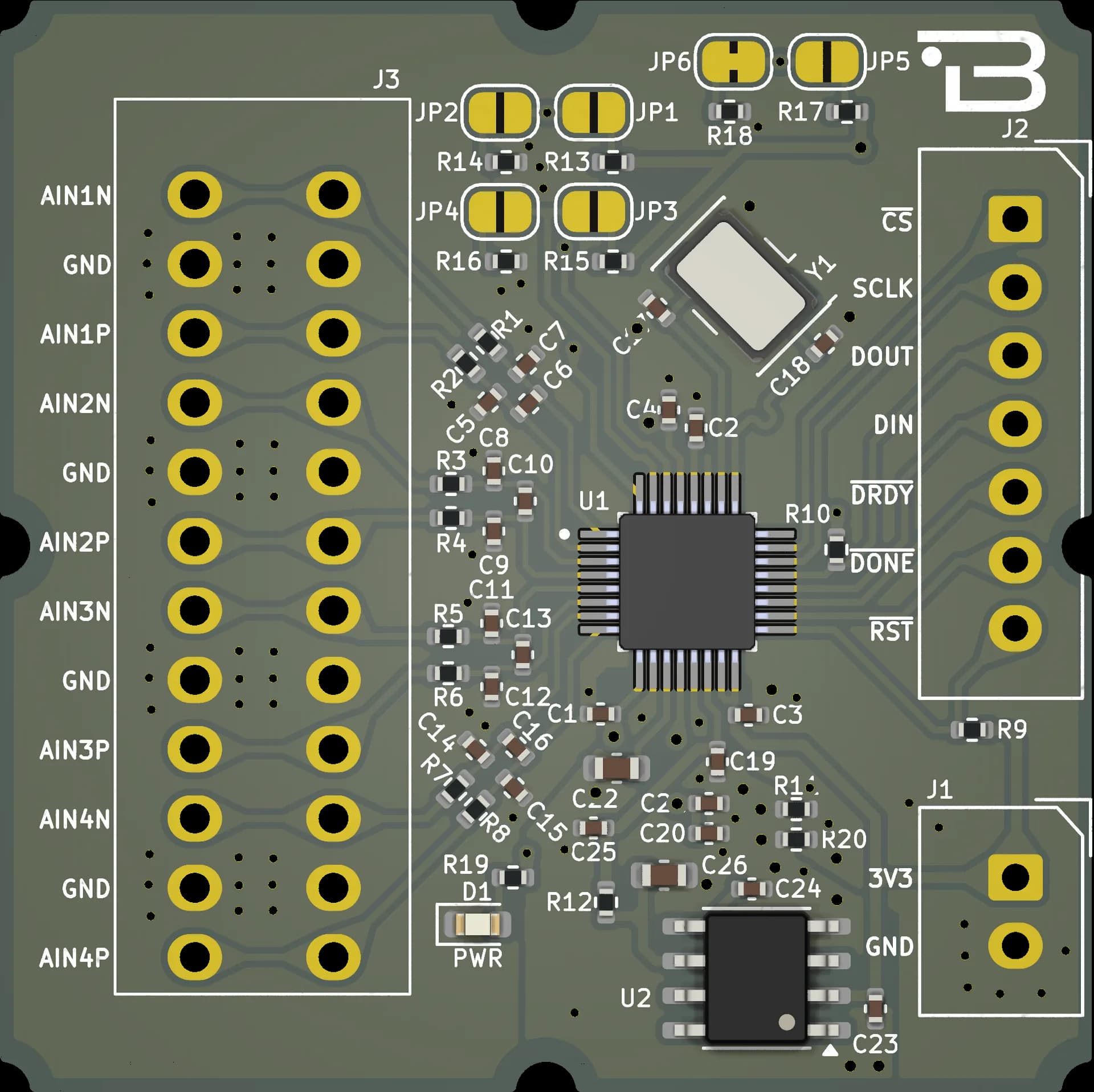

Boardoza ADS131A04 4-Channel 24-Bit Precision ADC Breakout Board
Boardoza ADS131A04 ADC Board is a high-performance data acquisition solution designed for precision differential signal measurement. Based on the 24-bit ADS131A04 ADC, the board supports 4 simultaneous differential input channels with low noise and high dynamic range performance. With programmable gain, high-resolution conversion, and SPI communication support, it is suitable for industrial monitoring, energy metering, sensor interfacing, and precision measurement systems requiring accurate multi-channel analog acquisition.
1 / 2
Key Features
- ADS131A04 based 24-bit precision ADC
- 4 simultaneous differential input channels
- Up to 128 kSPS sampling rate
- Low-noise sigma-delta ADC architecture
- High dynamic range and high ENOB performance
- SPI interface for high-speed communication
- Internal reference and programmable gain support
- Suitable for industrial, sensor, and measurement applications
- Programmable differential input range with PGA support
- Compact design for easy integration
Technical Specifications
- Item
- ADS131A04
- Input Voltage
- 3V3
- Functions
- 4-channel high-resolution ADC
- ADC Resolution
- Sellectable 16-bit (Default) or 24-bit
- Interface
- SPI
- Sampling Range
- ±2,5V
- SPI Clock Support
- Up to 16 MHz
- Sampling Rate
- Up to 128 kSPS
- Operating Temperature
- –40°C to +125°C
- Board Dimensions
- 40x40mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
