Data ConvertersSKU: B1101V10000102

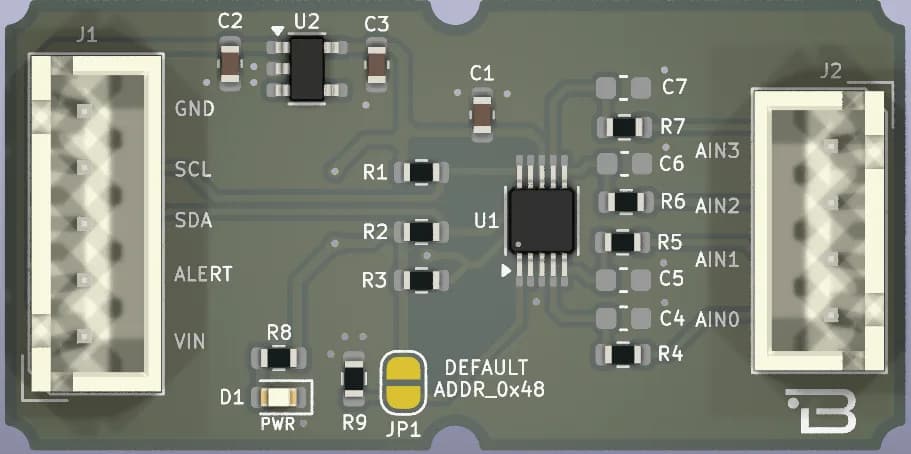

Boardoza ADS1115 16-Bit I²C ADC Breakout Board
This board features the ADS1115, a low-power 16-bit analog-to-digital converter with I²C interface. It supports both single-ended and differential input measurements, making it ideal for precise sensor readings in compact systems. With its wide input range and built-in voltage reference, the board is well-suited for general-purpose analog signal acquisition in embedded applications.
1 / 2
Key Features
- ADS1115 16-bit Analog-to-Digital Converter (ADC)
- 4 Single - ended or 2 Differantial analog input
- Low power consumption and compact design
- Internal reference voltage and oscillator
- High resolution and low noise
- Interrupt support via ALERT/RDY pin
Technical Specifications
- Item
- ADS1115
- Input Voltage
- 3V3 to 5V
- Functions
- 16-bit ADC, 4-channel analog measurement
- Data Rate
- 8SPS to 860SPS
- Operating Temperature
- –40°C to +125°C
- Board Dimensions
- 20x40mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
