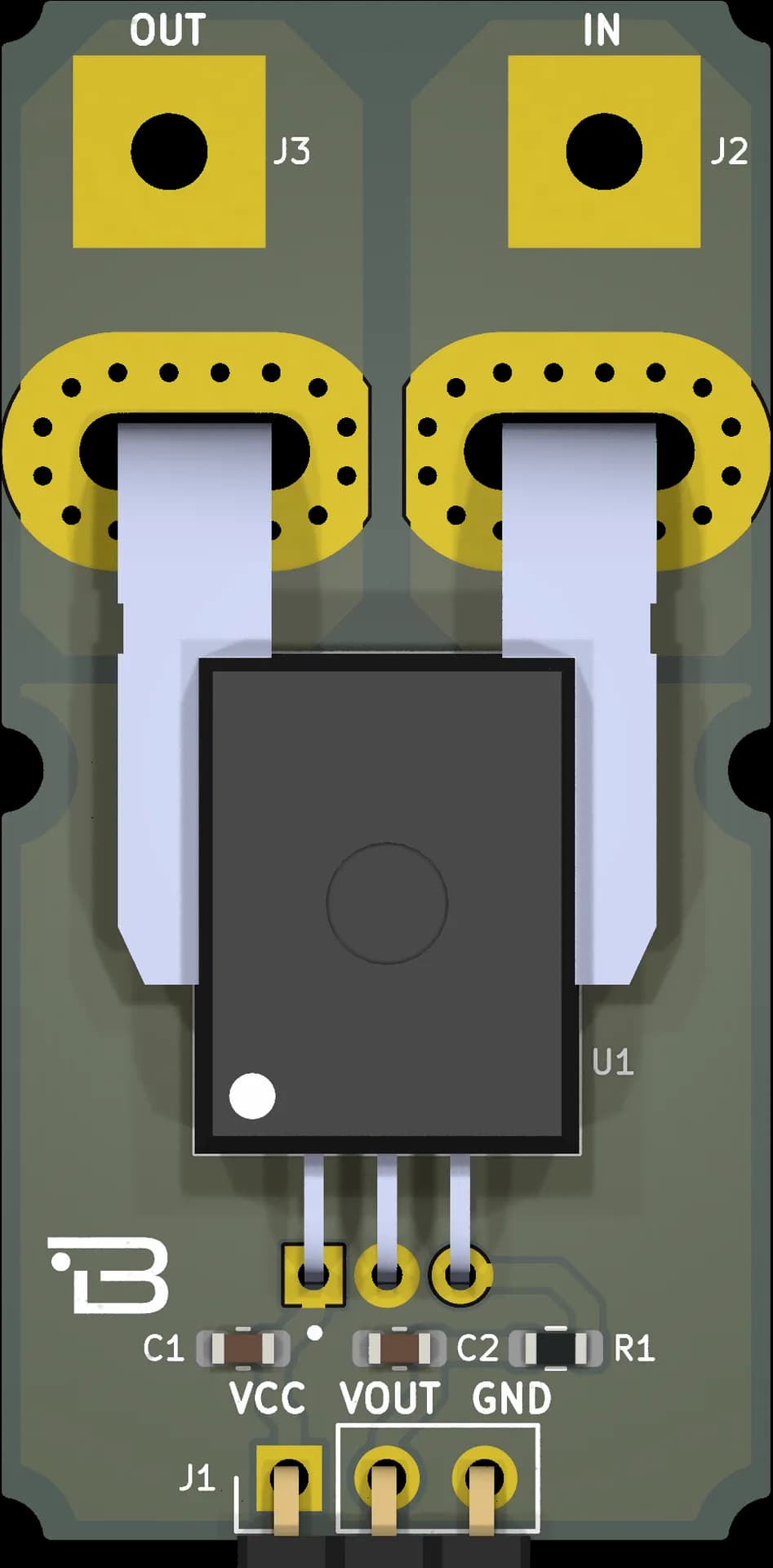

Boardoza ACS758LCB-050B Bidirectional Current Sensor Breakout Board
The current sensor board designed using the ACS758LCB-050B-PFF-T IC is a Hall-effect-based AC or DC current sensing solution capable of measuring bidirectional currents up to ±50 A while providing galvanic isolation between the primary current path and the signal output. Featuring high accuracy, low internal conductor resistance, fast response time, and integrated isolation, the board is well suited for industrial equipment, power management systems, battery monitoring, motor control, and other embedded applications requiring reliable current measurement.
1 / 2
Key Features
- Bidirectional AC/DC current measurement up to ±50 A
- 3.0 to 5.5 V, single supply operation
- 120 kHz typical bandwidth
- Factory-trimmed for accuracy
- 3 µs output rise time in response to step input current
- Extremely stable output offset voltage
- Nearly zero magnetic hysteresis
Technical Specifications
- Item
- B-ACS758LCB-050B-BRK
- Input Voltage
- 3.0 V to 5.5 V
- Functions
- ACS758LCB-050B-PFF-T Hall-effect current sensor
- Primary Sampled Current
- ±50 A
- Current Directionality
- Bidirectional
- Operating Temperature
- –40 °C to 150 °C
- Board Dimensions
- 20x40mm
Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
