Boardoza 8x8 ARGB Flexible Display Breakout Board

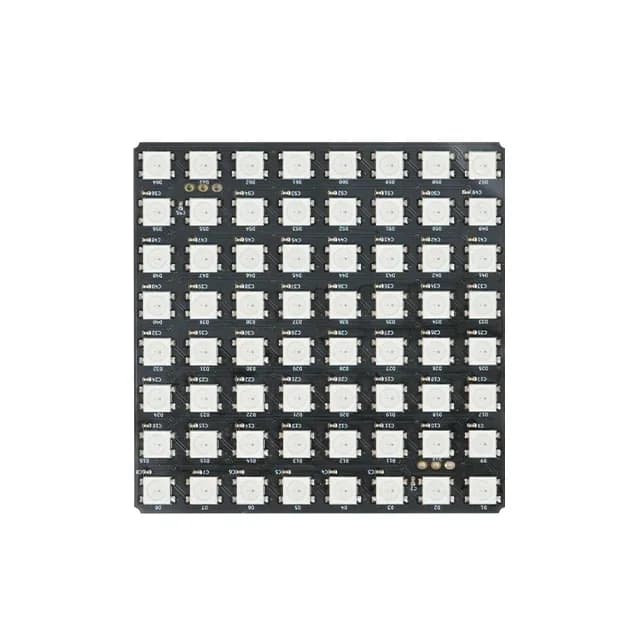

The Boardoza 8×8 ARGB Flexible Display is a high-performance 24-bit RGB LED matrix breakout board featuring 64 individually addressable XINGLIGHT XL-5050RGBC-WS2812B-S LEDs. Each LED includes an integrated driver IC, allowing independent brightness and color control through a single-wire digital communication interface. Its flexible PCB design enables the display to conform to curved or uneven surfaces, making it well suited for creative lighting and wearable applications. The board is ideal for robotics, IoT devices, wearable electronics, decorative lighting, gaming projects, smart displays, interactive installations, and animation systems. With support for cascading and flexible signal routing, multiple matrices can be connected seamlessly to create larger animated displays with synchronized lighting effects.
Where to buy?
Key Features
- 64 Individually Addressable LEDs: Control each pixel independently for dynamic lighting effects and animations.
- Integrated Driver LEDs: Built-in WS2812B-compatible control circuitry simplifies wiring and programming.
- Flexible PCB Structure: Easily conforms to curved or uneven surfaces for creative installations.
- Single-Wire Communication: Requires only one data line for controlling the entire matrix.
- Seamless Cascading Support: Connect multiple matrices together using DI (Data IN) and DO (Data Out) pins without additional hardware.
- High Color Consistency: Provides stable and vivid RGB color output across the entire display
- Wide Compatibility: Works with Arduino, ESP32, STM32, Raspberry Pi, and many other development platforms.
Technical Specifications
- Model
- 8x8 ARGB Flexible Display
- Manufacturer
- Boardoza
- Manufacturer IC
- XINGLIGHT
- Input Voltage
- 3.3 VDC – 5 VDC
- Functions
- Flexible ARGB LED Matrix Display
- LED Count
- 64 LEDs (8x8 Matrix)
- LED Type
- XL-5050RGBC-WS2812B-S with Integrated Driver IC
- Communication Protocol
- Single-Wire Digital Interface
- Data Transfer Speed
- Up to 800 Kbps
- Refresh Rate
- Up to 480 Hz (64 LEDs calculated)
- Color Depth
- 24-bit RGB
- Light Intensity
- Red: 400–600 mcd ,Green: 1000–1400 mcd , Blue: 200–400 mcd
- Operating Temperature
- -30°C to +70°C
- Board Dimensions
- 68.8mm x 68.8mm
Board Pinout
( J1 ) Input Connector
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | VDD | Power Supply Input (3.3 VDC – 5 VDC) |
| 2 | DI | Data Input from MCU or Previous Matrix |
| 3 | GND | Ground |
( J2 ) Output Connector
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | VDD | Power Supply Output |
| 2 | DO | Data Output to Next Matrix |
| 3 | GND | Ground |
( J3 ) Secondary Input Connector
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | VDD | Power Supply Input (3.3 VDC – 5 VDC) |
| 2 | DI | Data Input from MCU or Previous Matrix |
| 3 | GND | Ground |
( J4 ) Secondary Output Connector
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | VDD | Power Supply Output |
| 2 | DO | Data Output to Next Matrix |
| 3 | GND | Ground |
Datasheet
Download (PDF)Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
