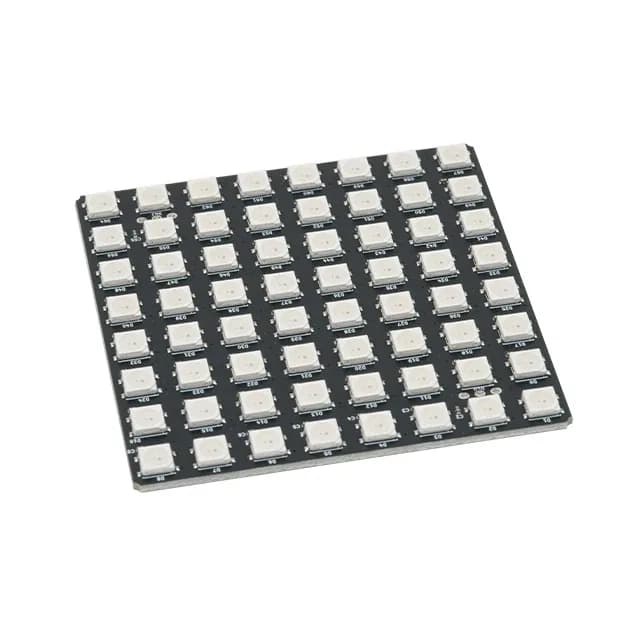

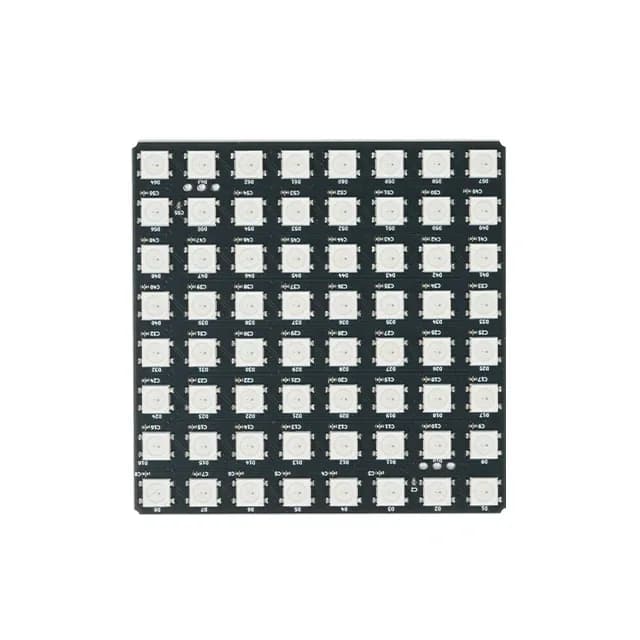

Boardoza 8x8 ARGB Display Breakout Board
The Boardoza 8×8 ARGB Display is a high-performance 24-bit color LED matrix breakout board featuring 64 individually addressable XINGLIGHT XL-5050RGBC-WS2812B-S LEDs. Each LED includes its own integrated control circuitry, enabling precise and independent adjustment of color and brightness through a single-wire digital communication interface. Designed for smooth animations and vibrant lighting effects, the board provides reliable operation with high refresh rates and stable signal transmission. This breakout board is ideal for robotics, IoT projects, smart lighting systems, wearable electronics, interactive displays, gaming projects, and custom visual effects. Its compact square layout and cascading capability allow multiple boards to be connected easily, making it possible to create larger LED matrices and advanced lighting installations.
Where to buy?
Key Features
- 64 Individually Addressable LEDs: Control each LED independently for animations, effects, and colorful patterns.
- Integrated WS2812B-S Driver: Built-in LED driver simplifies hardware design and reduces external component requirements.
- High-Speed Data Transfer: Supports communication speeds up to 800Kbps for smooth visual performance.
- Cascadable Design: Data Input (DI) and Data Output (DO) pins allow seamless chaining of multiple boards.
- High Color Consistency: Provides stable and vivid RGB color output across the entire display.
- Signal Reshaping Circuit: Maintains reliable signal quality across long LED chains.
- Wide Compatibility: Works with popular development platforms such as Arduino, ESP32, Raspberry Pi, STM32, and more.
Technical Specifications
- Model
- 8x8 ARGB Display
- Manufacturer
- Boardoza
- Manufacturer IC
- XINGLIGHT
- Input Voltage
- 3.3 VDC - 5 VDC
- Functions
- ARGB LED Matrix Display
- LED Count
- 64 LEDs (8x8 Matrix)
- LED Type
- XL-5050RGBC-WS2812B-S with Integrated Driver IC
- Communication Protocol
- Single-Wire Digital Interface
- Data Transfer Rate
- Up to 800Kbps
- Refresh Rate
- Up to 480Hz (Calculated for 64 LEDs)
- Color Depth
- 24-Bit RGB
- Light Intensity
- Red: 400 - 600mcd ,Green: 1000 - 1400mcd ,Blue: 200 - 400mcd
- Operating Temperature
- 30°C to +70°C
- Board Dimensions
- 68.8mm x 68.8mm

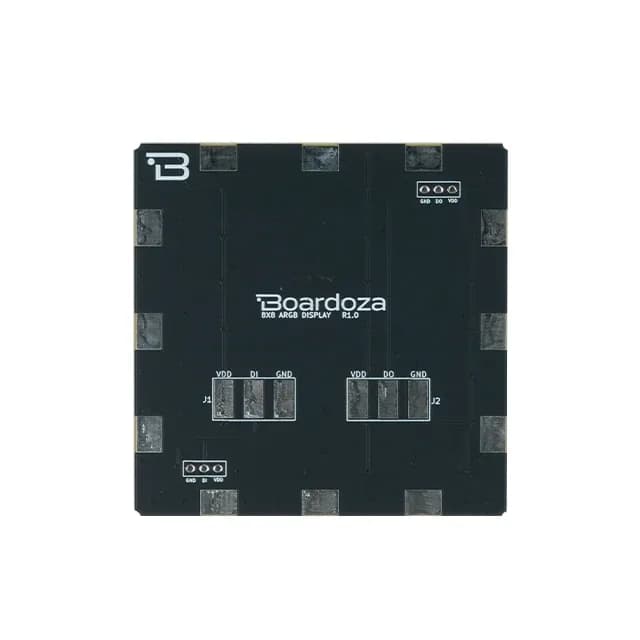

Board Pinout
( J1 ) Data Input Connector
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | VDD | Power Supply (3.3 VDC - 5 VDC) |
| 2 | DI | Data Input from MCU or Previous Matrix |
| 3 | GND | Ground |
( J2 ) Data Output Connector
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | VDD | Power Supply (3.3 VDC - 5 VDC) |
| 2 | DO | Data Output to Next Matrix |
| 3 | GND | Ground |
( J3 ) Alternative Data Input Connector
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | VDD | Power Supply (3.3 VDC - 5 VDC) |
| 2 | DI | Data Input from MCU or Previous Matrix |
| 3 | GND | Ground |
( J4 ) Alternative Data Output Connector
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | VDD | Power Supply (3.3 VDC - 5 VDC) |
| 2 | DO | Data Output to Next Matrix |
| 3 | GND | Ground |
Datasheet
Download (PDF)Support
For technical questions, documentation and issue reports, use the GitHub repository or write to us directly.
