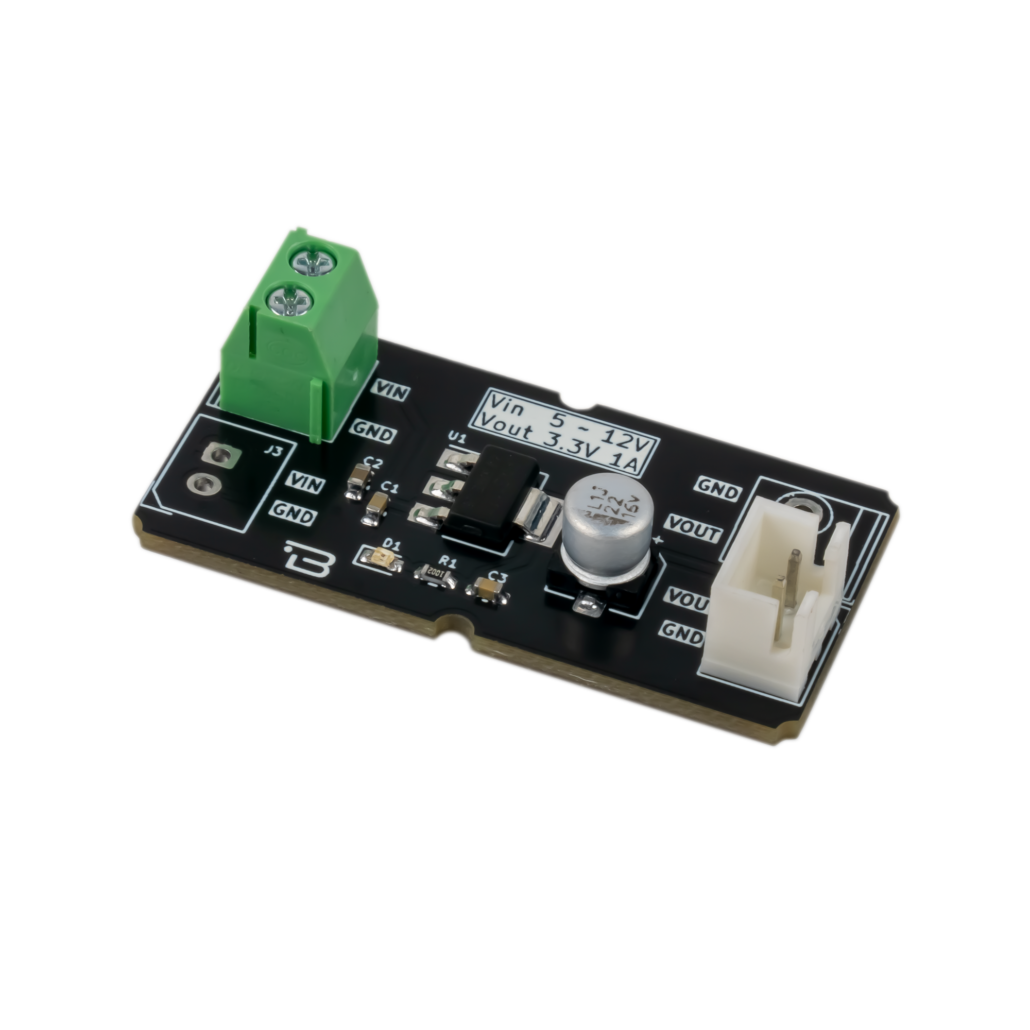

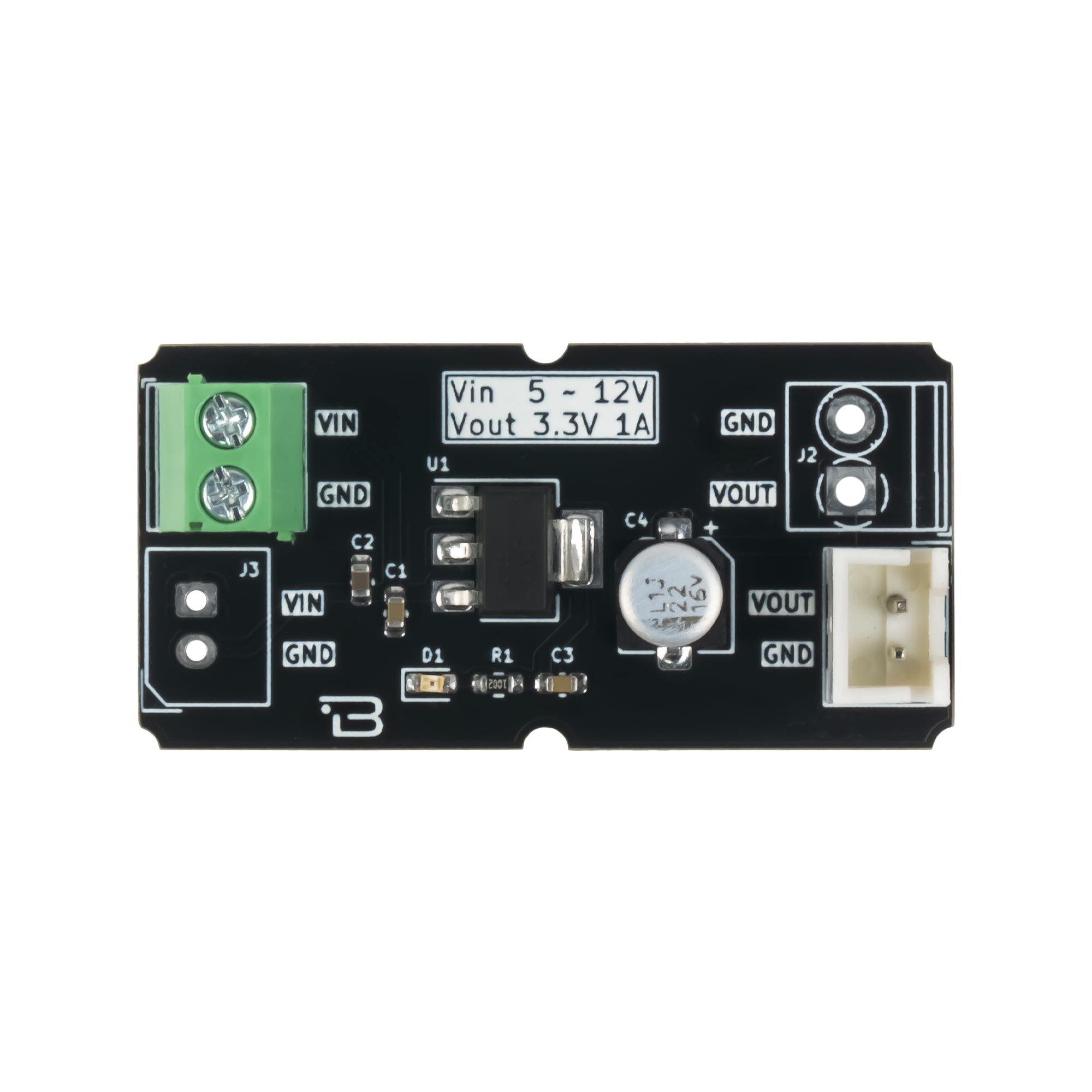

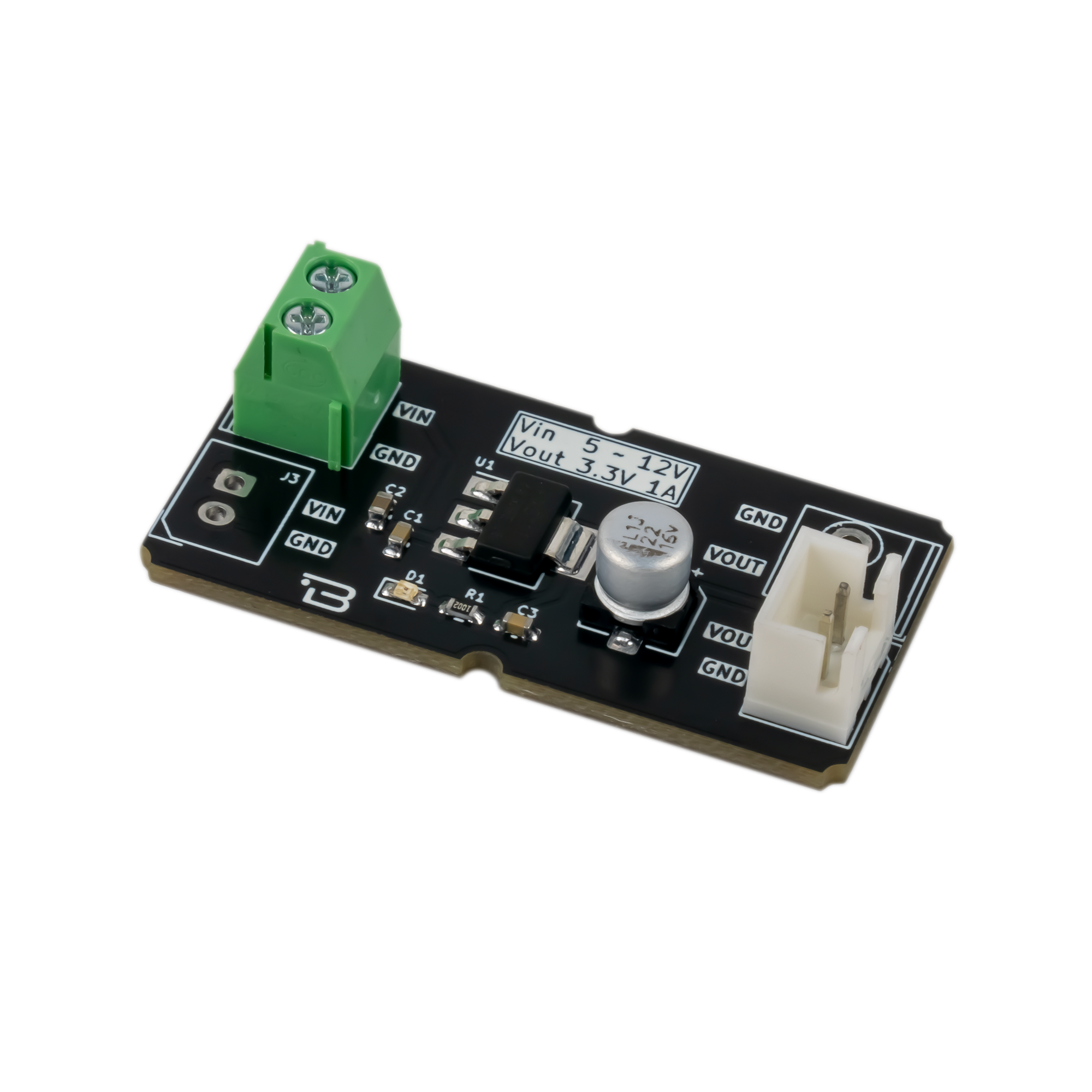

AMS1117-3V Voltage Regulator Breakout Board

Boardoza AMS1117-3V module is designed to provide 3.3V and up to 1A output current and to operate down to 1V input-to-output differential. The dropout voltage of the device is guaranteed maximum 1.3V decreasing at lower load currents.

Technical Specifications

ItemAMS1117-3V
Voltage Supply5 – 12V
FunctionsVoltage Regulation
Output Voltage3.3V
Output Current1A
Operating Temperature-40°C to 125°C

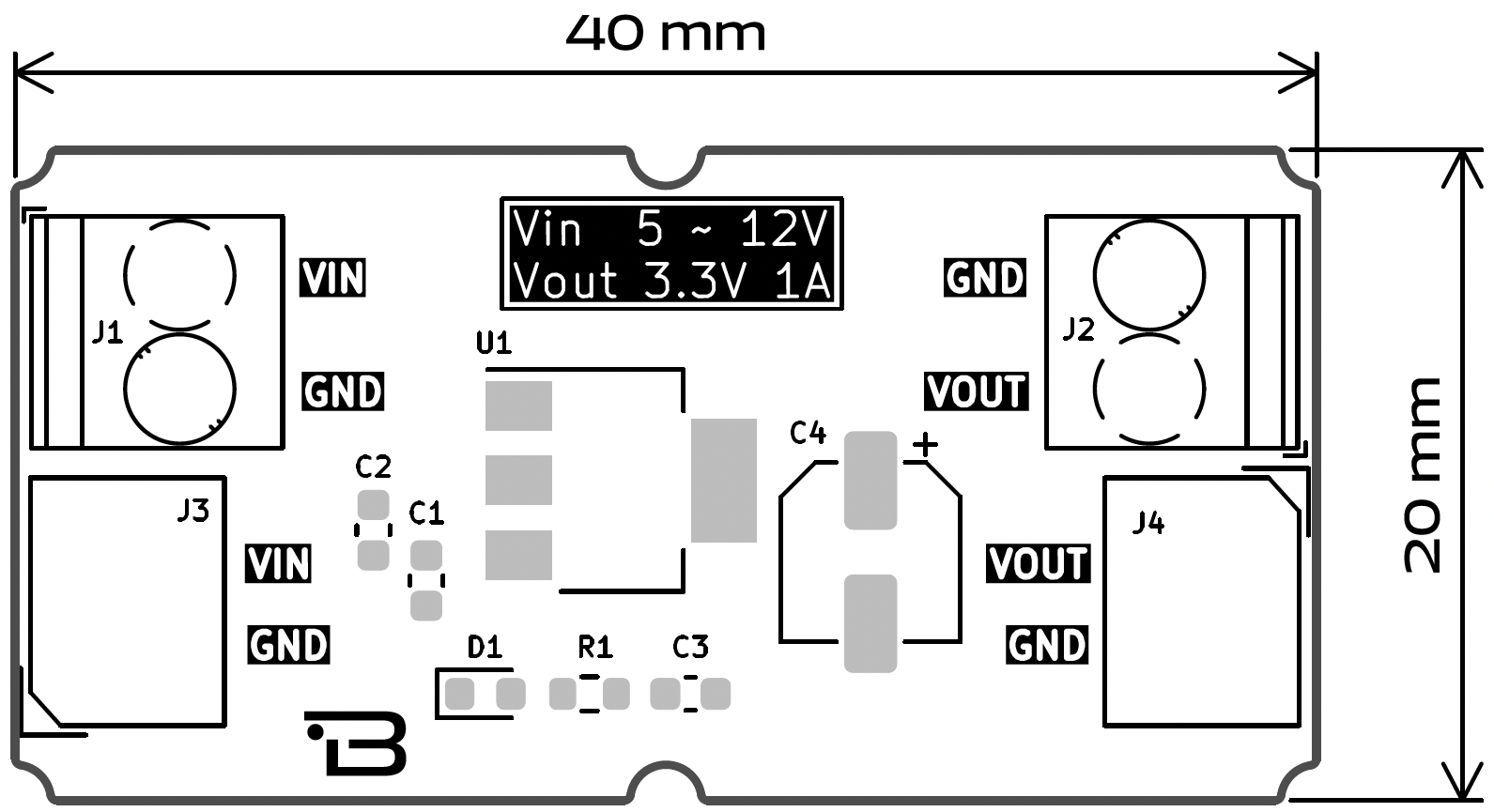

Board Dimensions20 x 40 mm

Board Spesific Properties

  • 5 – 12V to 3.3V Linear Regulator.
  • Output Current of 1A.
  • Operates Down to 1V Dropout.
  • Line Regulation: 0.2% Max.
  • Load Regulation: 0.4% Max.

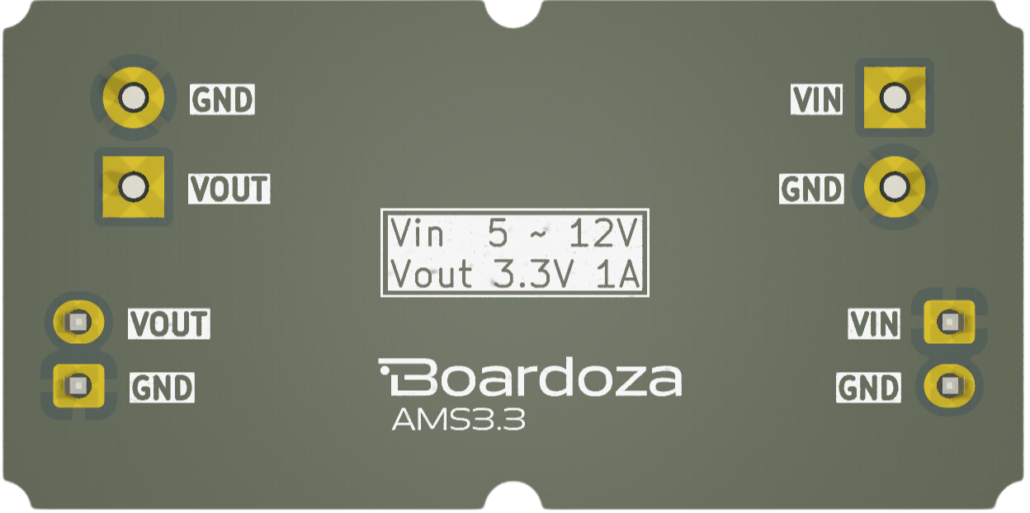

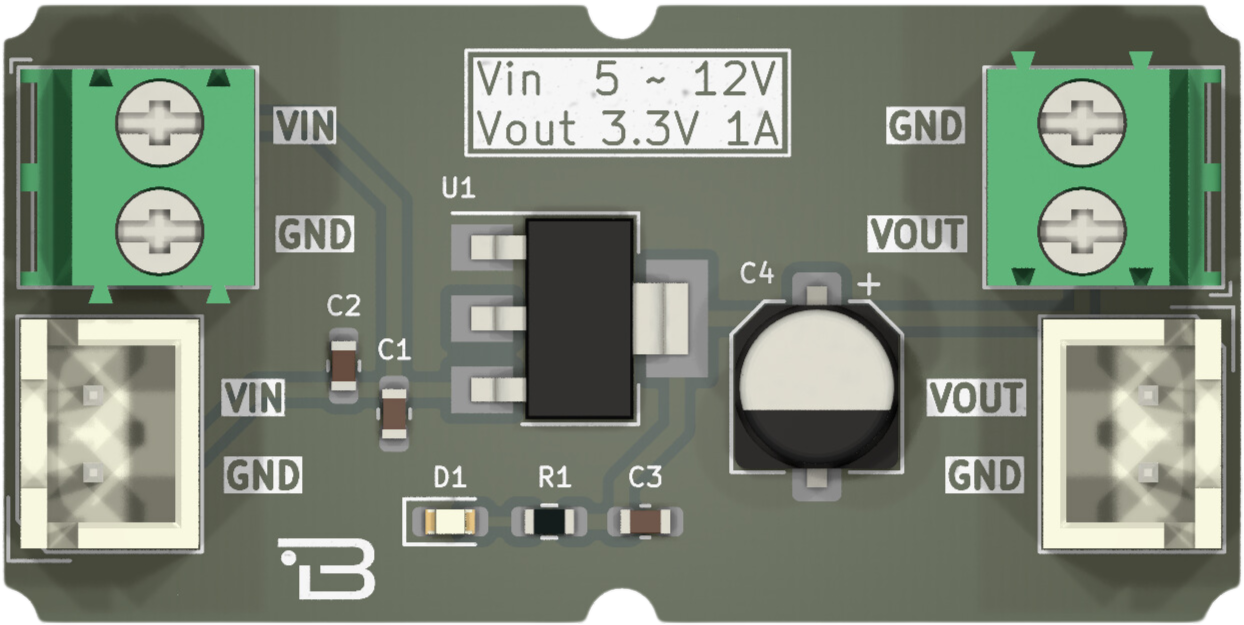

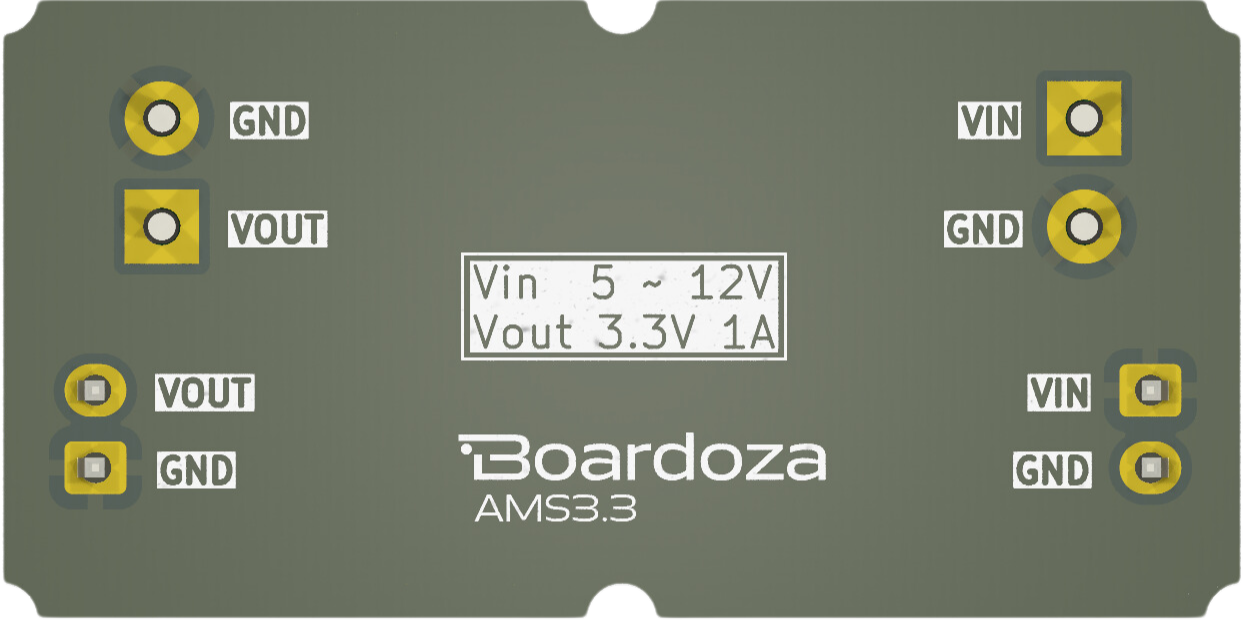

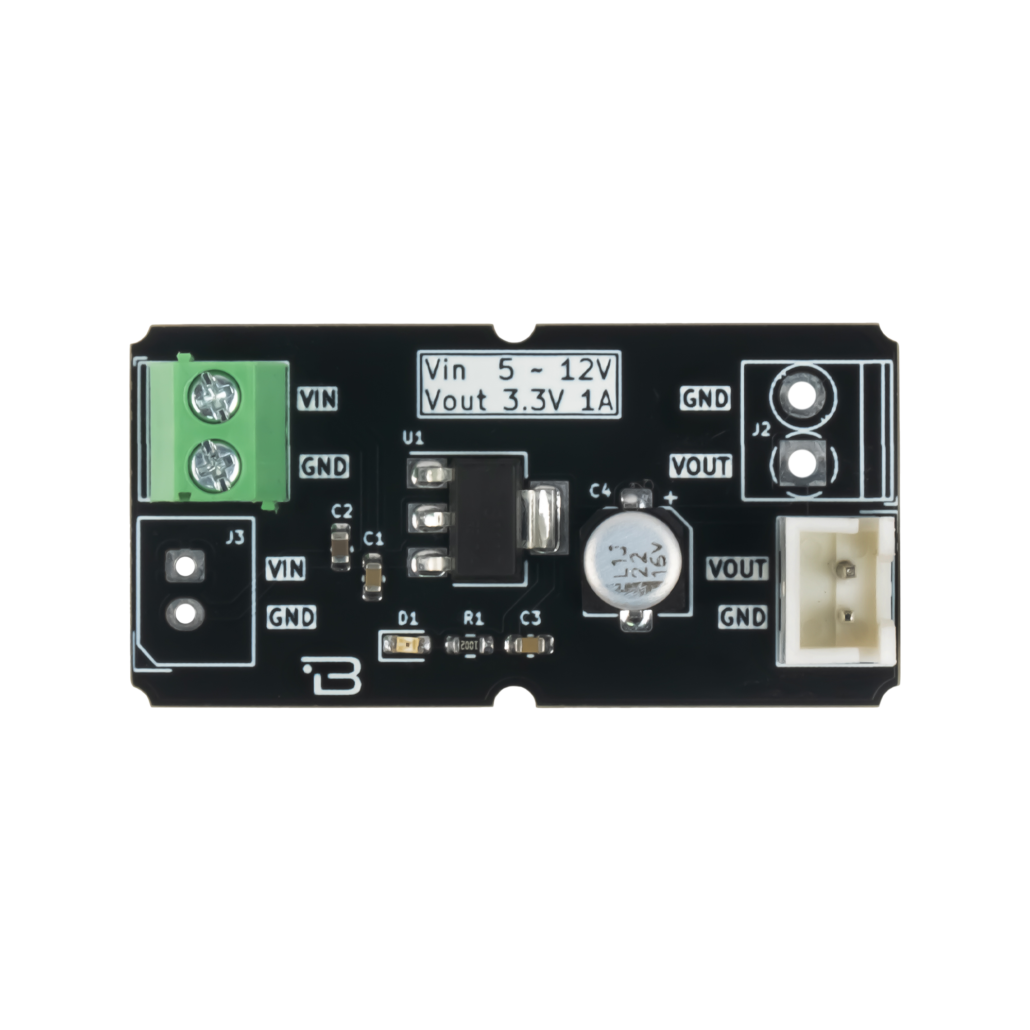

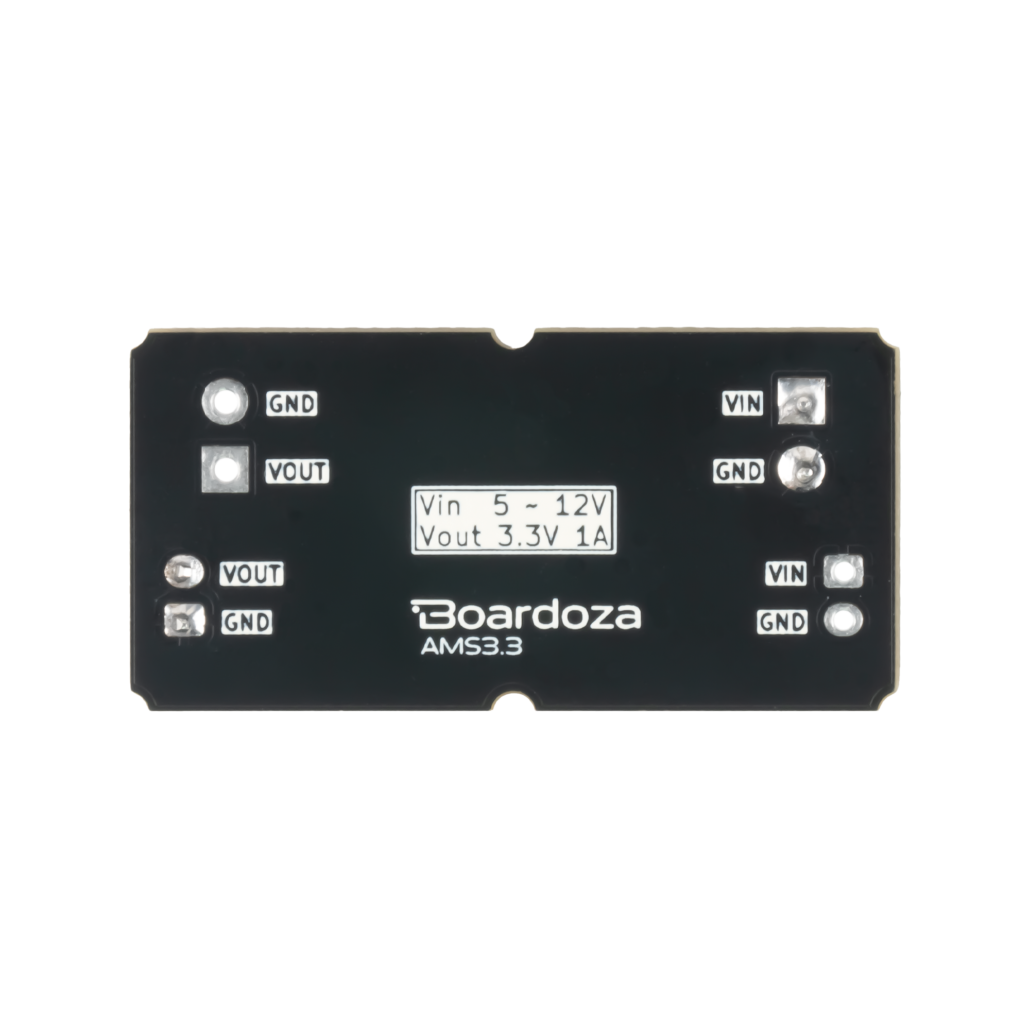

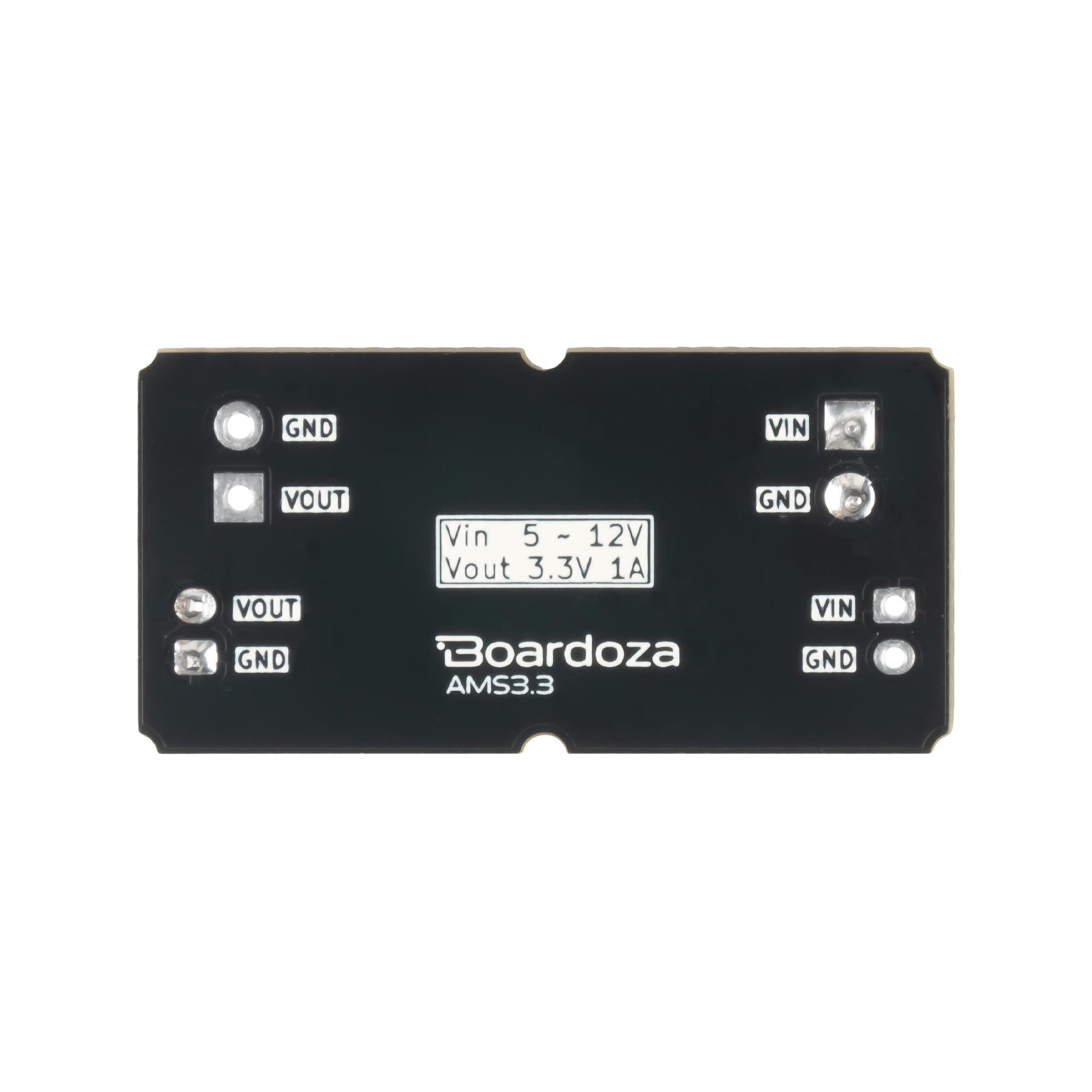

Board Pinout

PIN NumberPIN NameDescription
1VINVoltage Input
2GND Ground
PIN NumberPIN NameDescription
1VOUTVoltage Output
2GNDGround
